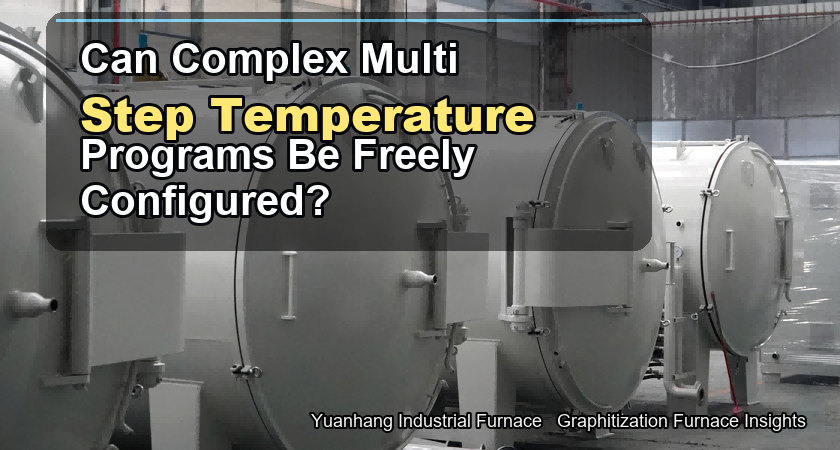

Multi-Stage Process Programming for Graphitization Furnaces

As anyone involved in materials research knows, the processing of many novel carbon materials cannot be achieved simply by a linear heating process. Step heating, plateau holding, pulse heating, cyclic annealing… various complex temperature regimes require equipment to execute precisely.

Our control system supports free arrangement of multi-segment process programs. Theoretically, the equipment can execute any temperature curve you can draw.

A process program can be set with up to N process segments (the exact number depends on the controller model, usually dozens to hundreds of segments), and each process segment can be set independently:

Supports Nested Loops -A process segment can be set to be executed N times in a loop.

What the source article emphasizes

The Chinese source focuses on practical furnace selection and operation, not on a simple word-for-word product description. The important point is to understand how each specification affects real batch quality, operating cost, maintenance, and safety.

• Multi-segment Process Programs: Free Arrangement of Complex Temperature Curves
• Free Programming Function
• Cycle Function

Key technical points

• Target Temperature: The temperature to be reached at the end of this segment
• Heating/Cooling Rate: The speed at which the target temperature is reached
• Holding Time: The time to hold the target temperature after it is reached
• Atmosphere Control: The gas type, flow rate, and pressure of this segment

Engineering interpretation for overseas buyers

For example, the sequence "heat to 1000 °C → hold for 1 hour → cool to 500 °C" is repeated 5 times to achieve multiple cycles of heat treatment. The number of cycles and cycle conditions can be programmable.

Automatically enters the next segment after the set time is reached.

Automatically enters the next segment after the target temperature is reached.

The ability to freely arrange multiple process programs transforms the graphitization furnace from a "standardized device" into a "universal testing platform." The possibilities for materials research and development have been greatly expanded.

For an English industrial furnace website, this topic should be presented in a way that helps the reader make a specification decision. That means connecting the furnace feature with material behavior, production rhythm, utility conditions, acceptance testing, and long-term maintenance.

Specification and acceptance checklist

• Heating elements and insulation determine maximum temperature, power consumption, maintenance interval, and batch cost.
• Consumable life depends on peak temperature, atmosphere purity, heating and cooling rate, and material volatility.
• Spare hot-zone parts should be discussed during procurement, not only after the first failure.
• Emergency design should cover power loss, cooling failure, gas interruption, overtemperature, and unsafe pressure.
• UPS, backup gas, safe sealing, and emergency cooling logic should be tested during commissioning.
• Alarm records should tell the operator what happened and what response is required.
• Confirm the process temperature, holding time, atmosphere, loading volume, and product quality indicators before comparing suppliers.
• Ask which indicators will be tested at the factory, which will be tested on site, and which need production verification.

Questions to confirm before ordering

• What material will be treated, and what quality indicators must be reached after graphitization?
• What temperature curve, holding time, atmosphere, vacuum level, cooling method, and loading density are required?
• Which data will be recorded for each batch, and which acceptance tests will prove stable performance?
• Which spare parts, consumables, alarms, and maintenance checks are needed for long-term operation?

Engineering takeaway

A graphitization furnace should be specified as a complete high-temperature process system. When the buyer defines the material, process window, utilities, safety logic, and acceptance method clearly, the furnace is easier to operate, easier to troubleshoot, and more reliable in repeated production.
