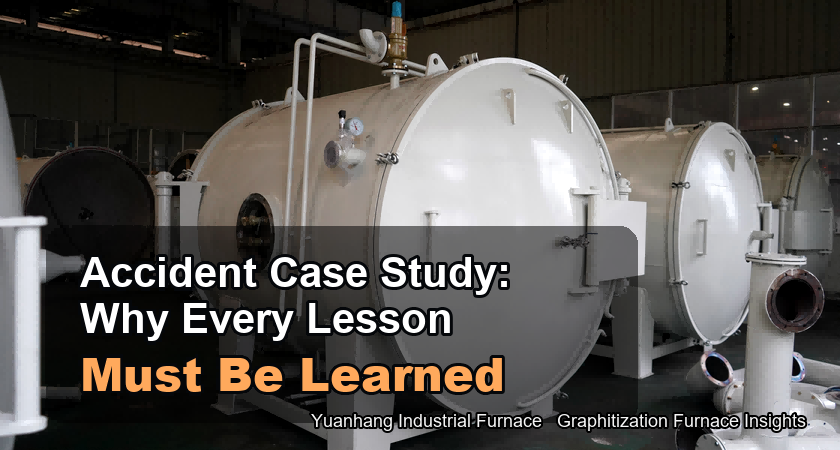

Graphitization Furnace Accident Lessons and Risk Prevention
Real accident cases provide the most profound safety education. The following three cases are from real events within the industry (anonymized), hoping to serve as a wake-up call.
Process: During the night shift handover, an operator at a factory, eager to finish get off work and cool down the furnace, manually increased the cooling rate from the set 3 °C/min to 15 °C/min. As a result, an entire furnace of semiconductor-grade graphite crucibles, worth 300,000 yuan, cracked and became unusable.
Reason: Violation of operating procedures, unauthorized increase in cooling rate.
Lesson: The cooling rate must never be accelerated without process verification. Saving an hour in haste resulted in a loss of 300,000.
What the source article emphasizes
The Chinese source focuses on practical furnace selection and operation, not on a simple word-for-word product description. The important point is to understand how each specification affects real batch quality, operating cost, maintenance, and safety.
- Graphitization Furnace Accident Case Analysis: Learning from Lessons Learned
- Case 1: Rapid Cooling Leads to Entire Furnace's Failure
- Case Two: Seal Failure Leads to Oxidation of High-Purity Products
- Case 3: Water Outage Causes Coil Burnout
Key technical points
- Leak checking before heating is essential when processing high-value graphite or carbon materials.
- Water-cooled flanges and suitable O-rings help keep sealing parts below their thermal aging limit.
- A small air leak can oxidize the batch, so sealing design and maintenance records should be part of acceptance.
- Cooling water should be monitored by flow, pressure, and temperature, not only by pump running status.
- Independent circuits are preferred for the shell, induction coil, power cabinet, and key electrical components.
- Emergency or redundant cooling should be considered for high-value batches and unattended operation.
- A new furnace should be purified before high-purity products are loaded.
- Moisture, oil, machining residue, and background contaminants can remain inside a new hot zone.
Engineering interpretation for overseas buyers
Process: The O-ring seals of a graphitization furnace in a certain factory aged and were not replaced in time, allowing trace amounts of air to seep in during the graphitization process. The surface of one batch of high-purity graphite products was completely oxidized and turned white, with the purity dropping from 99.99% to 99.9%, leading to customer rejection.
Reason: The seals were beyond their service life and were not replaced as scheduled.
Lesson: Seals are consumables and must be replaced regularly according to the maintenance plan. Saving the money for one set of seals resulted in the loss of an entire batch of products.
Process: A factory's cooling water pump motor failed and stopped. The standby pump did not start automatically (due to incorrect electrical wiring). The induction coil overheated and burned out within 30 minutes, resulting in a direct loss of 500,000 yuan and a two-week shutdown for repairs.
For an English industrial furnace website, this topic should be presented in a way that helps the reader make a specification decision. That means connecting the furnace feature with material behavior, production rhythm, utility conditions, acceptance testing, and long-term maintenance.
Specification and acceptance checklist
- Leak checking before heating is essential when processing high-value graphite or carbon materials.
- Water-cooled flanges and suitable O-rings help keep sealing parts below their thermal aging limit.
- A small air leak can oxidize the batch, so sealing design and maintenance records should be part of acceptance.
- Cooling water should be monitored by flow, pressure, and temperature, not only by pump running status.
- Independent circuits are preferred for the shell, induction coil, power cabinet, and key electrical components.
- Emergency or redundant cooling should be considered for high-value batches and unattended operation.
- A new furnace should be purified before high-purity products are loaded.
- Moisture, oil, machining residue, and background contaminants can remain inside a new hot zone.
Questions to confirm before ordering
- What material will be treated, and what quality indicators must be reached after graphitization?
- What temperature curve, holding time, atmosphere, vacuum level, cooling method, and loading density are required?
- Which data will be recorded for each batch, and which acceptance tests will prove stable performance?
- Which spare parts, consumables, alarms, and maintenance checks are needed for long-term operation?
Engineering takeaway
A graphitization furnace should be specified as a complete high-temperature process system. When the buyer defines the material, process window, utilities, safety logic, and acceptance method clearly, the furnace is easier to operate, easier to troubleshoot, and more reliable in repeated production.
