Why Temperature Uniformity Matters in Graphitization Furnaces
Some products from the same furnace are over-fired while others are under-fired; the problem is most likely with the temperature field.
Two years ago, a customer contacted us, saying that the products from his factory's graphitization furnace had very poor batch-to-batch consistency. Products from the same furnace had different specifications; some met the requirements, while others did not. The quality varied depending on the location, resulting in an absurdly high rework rate. We sent an engineer to the site, and the problem was clear: uneven temperature field.
You can think of the furnace as an oven; some areas are hot, some are cold, so naturally some of the food you bake will be burnt, and some won't be cooked through. The principle is exactly the same in a graphitization furnace, only the temperature is much higher and the requirements are much stricter.

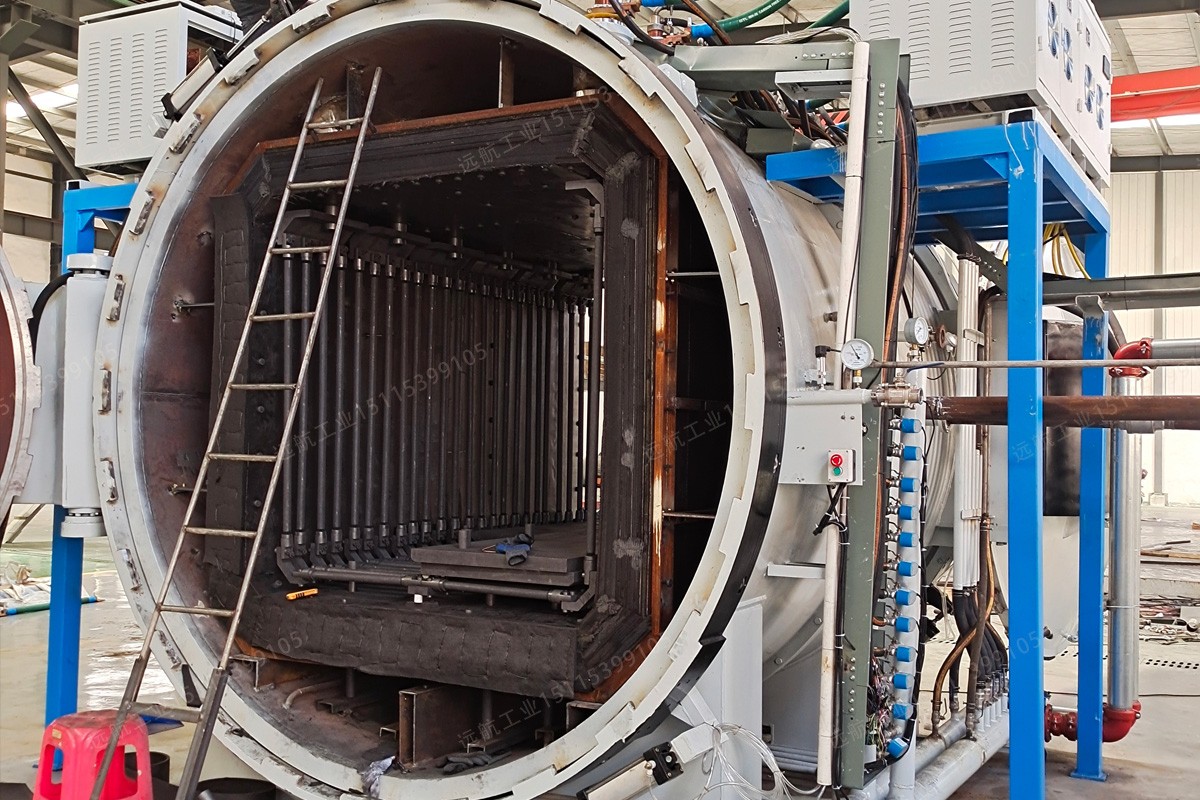

The industry typically uses "±X°C" to represent temperature field uniformity. It measures the maximum temperature difference between any two points within the effective heating zone. Note that this refers to the "effective heating zone," not the total furnace size.
What the source article emphasizes
The Chinese source focuses on practical furnace selection and operation, not on a simple word-for-word product description. The important point is to understand how each specification affects real batch quality, operating cost, maintenance, and safety.
- What is temperature field uniformity?
Key technical points
- Define the effective heating zone instead of using total chamber size as the acceptance basis.
- Write the temperature uniformity value and verification method into the technical agreement.
- Use ceramic temperature rings or an equivalent method when high-temperature mapping cannot be measured directly.
- Digital interfaces should provide useful production data, not just a remote screen view.
- Temperature curves, power data, pressure trends, alarms, and operator actions are valuable for quality traceability.
- MES or SCADA integration should be defined by data points, communication protocol, permissions, and reporting needs.
- Temperature measurement at graphitization temperatures requires a practical combination of sensor selection, calibration, and indirect verification.
- Thermocouples, infrared systems, and ceramic rings each have different suitable ranges and limitations.
Engineering interpretation for overseas buyers
Talk is cheap; we rely on data. Before the equipment leaves the factory or during on-site acceptance, a third-party inspection using the
Important points are placed at different locations within the effective heating zone: upper, middle, lower, center, and edge.
The temperature measuring rings utilize the principle of
of ceramics at high temperatures-the degree of shrinkage corresponds one-to-one with the heating temperature.
For an English industrial furnace website, this topic should be presented in a way that helps the reader make a specification decision. That means connecting the furnace feature with material behavior, production rhythm, utility conditions, acceptance testing, and long-term maintenance.
Specification and acceptance checklist
- Define the effective heating zone instead of using total chamber size as the acceptance basis.
- Write the temperature uniformity value and verification method into the technical agreement.
- Use ceramic temperature rings or an equivalent method when high-temperature mapping cannot be measured directly.
- Digital interfaces should provide useful production data, not just a remote screen view.
- Temperature curves, power data, pressure trends, alarms, and operator actions are valuable for quality traceability.
- MES or SCADA integration should be defined by data points, communication protocol, permissions, and reporting needs.
- Temperature measurement at graphitization temperatures requires a practical combination of sensor selection, calibration, and indirect verification.
- Thermocouples, infrared systems, and ceramic rings each have different suitable ranges and limitations.
Questions to confirm before ordering
- What material will be treated, and what quality indicators must be reached after graphitization?
- What temperature curve, holding time, atmosphere, vacuum level, cooling method, and loading density are required?
- Which data will be recorded for each batch, and which acceptance tests will prove stable performance?
- Which spare parts, consumables, alarms, and maintenance checks are needed for long-term operation?
Engineering takeaway
A graphitization furnace should be specified as a complete high-temperature process system. When the buyer defines the material, process window, utilities, safety logic, and acceptance method clearly, the furnace is easier to operate, easier to troubleshoot, and more reliable in repeated production.
