How a Graphitization Furnace Runs Stably at 3000 °C

What does 3000 °C mean? Iron's boiling point is only 2750 °C, stainless steel would have long since melted into a liquid, and even the silica in refractory bricks would soften. But our graphitization furnace is designed to operate in this extreme environment year-round, for thousands of hours at a time.

Graphitization furnaces use induction heating, which requires very high power, often hundreds of kilowatts or even megawatts. Voltage fluctuations in the power grid must be controlled within ±10%. If the power grid conditions are poor, it is recommended to add voltage stabilizing equipment to the power distribution system.

At 3000 °C, oxygen and water vapor are the biggest enemies of graphite heating elements.

The requirements for the protective gas introduced are very strict:

What the source article emphasizes

The Chinese source focuses on practical furnace selection and operation, not on a simple word-for-word product description. The important point is to understand how each specification affects real batch quality, operating cost, maintenance, and safety.

• What keeps a furnace running at 3000 °C year-round?
• Three Lifelines
• 1?? Stable Power Supply
• 2?? High-Purity Protective Atmosphere

Key technical points

• The dew point must be below -60 °C
• The purity must reach 99.999% or higher
• Nitrogen cannot be used instead of argon (nitrogen reacts with carbon at high temperatures to produce cyanide)
• Equip a dual water supply system, one for operation and one for backup.
• Include flow, temperature, and pressure monitoring and automatic alarm devices.
• Run 24/7 without interruption.

Engineering interpretation for overseas buyers

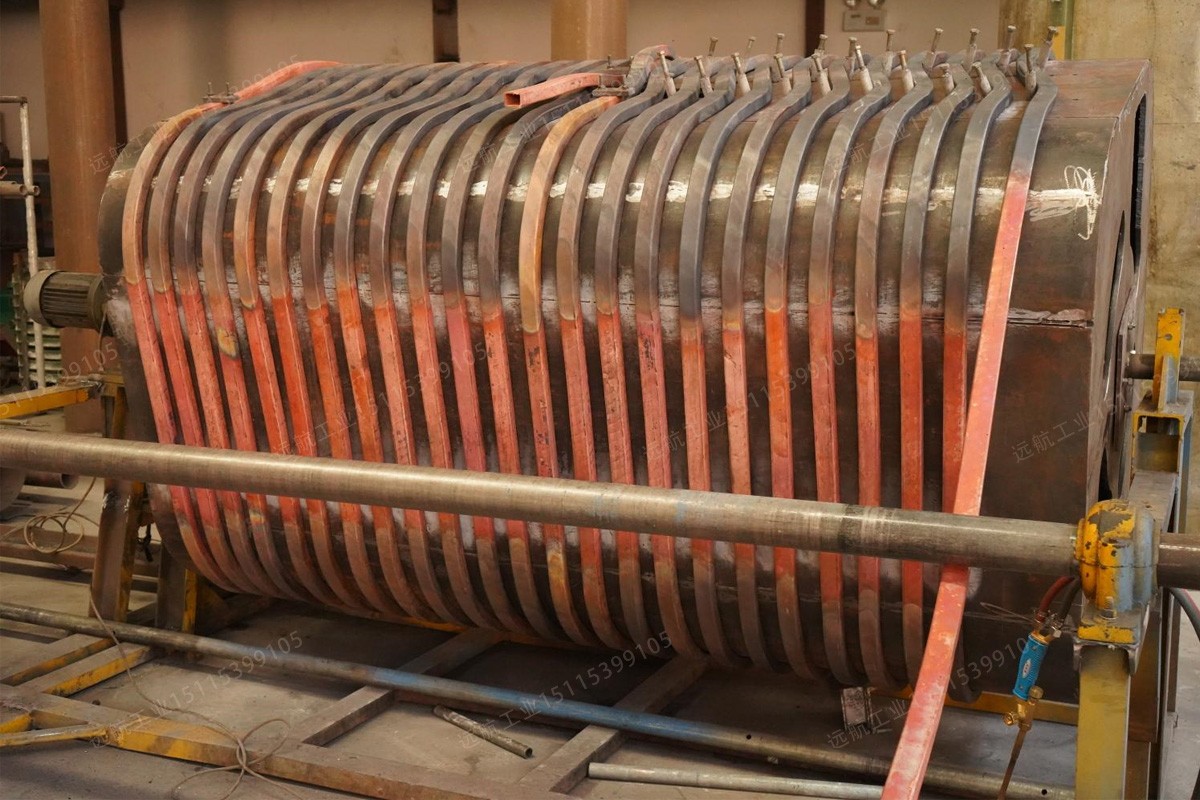

When the induction coil and power supply equipment are operating at high current, they generate enormous heat. If the cooling water is interrupted for even a few minutes, the coil temperature will skyrocket, and the insulation layer will burn out instantly.

Conclusion: When buying a boiler, don't just look at the boiler itself; the planning of supporting facilities is equally important. Selling the boiler is just the beginning; the real test is in the stable operation over the next few years or even decades.

For an English industrial furnace website, this topic should be presented in a way that helps the reader make a specification decision. That means connecting the furnace feature with material behavior, production rhythm, utility conditions, acceptance testing, and long-term maintenance.

Specification and acceptance checklist

• At about 3000 °C, stable power, high-purity argon, low dew point, and reliable cooling must work as one system.
• For high-purity graphite work, confirm oxygen and moisture control before loading valuable material.
• Nitrogen should not be treated as a simple substitute for argon in ultra-high-temperature graphite service.
• Induction heating is usually more suitable for long-term graphitization above about 2500 °C.
• Resistance heating can be simpler at lower temperatures, but electrode loss and hot-zone life must be considered.
• Compare heating method by process temperature, batch size, uniformity, maintenance, and total operating cost.
• Leak checking before heating is essential when processing high-value graphite or carbon materials.
• Water-cooled flanges and suitable O-rings help keep sealing parts below their thermal aging limit.

Questions to confirm before ordering

• What material will be treated, and what quality indicators must be reached after graphitization?
• What temperature curve, holding time, atmosphere, vacuum level, cooling method, and loading density are required?
• Which data will be recorded for each batch, and which acceptance tests will prove stable performance?
• Which spare parts, consumables, alarms, and maintenance checks are needed for long-term operation?

Engineering takeaway

A graphitization furnace should be specified as a complete high-temperature process system. When the buyer defines the material, process window, utilities, safety logic, and acceptance method clearly, the furnace is easier to operate, easier to troubleshoot, and more reliable in repeated production.
