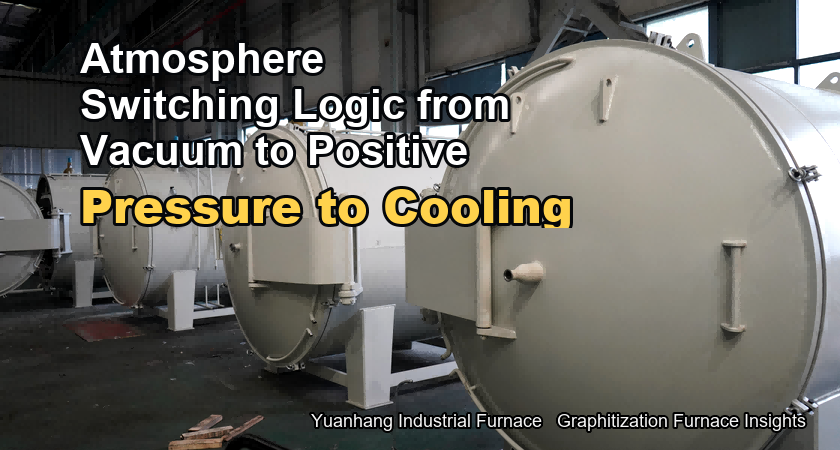

Automatic Atmosphere Switching in Graphitization Furnaces
In the complete graphitization process, the atmosphere needs to be switched multiple times: in the initial stage, vacuum is evacuated to remove air; after the temperature is raised to a certain level, it switches to micro-positive pressure protection; after the process is completed, it may need to switch to strong cooling mode. Manual operation of these switches is not only inefficient but also prone to errors.
The system supports three triggering methods:
These triggering conditions can be flexibly combined during process programming. For example, switching only occurs when both conditions, "temperature reaches 1500 °C and holding time is completed," are met simultaneously.
Before each atmosphere switch, the system automatically checks:
What the source article emphasizes
The Chinese source focuses on practical furnace selection and operation, not on a simple word-for-word product description. The important point is to understand how each specification affects real batch quality, operating cost, maintenance, and safety.
- Automatic Switching of Trigger Conditions
- Safety Confirmation Before Switching
- Smooth Transition
Key technical points
- Time Trigger: Automatic switching upon reaching the set time point
- Temperature Trigger: Automatic switching upon reaching the set furnace temperature
- Event Trigger: Automatic switching upon detecting a specific process event (such as pressure reaching the target or gas concentration change)
- Is the target atmosphere source pressure normal?
- Is the switching valve normal?
- Is the exhaust passage unobstructed?
- Does the current state allow switching?
Engineering interpretation for overseas buyers
If any of these conditions are not met, the switching action will not be performed, and the system will alarm to prompt the operator for action. This
design avoids process interruptions or safety accidents caused by switching failures.
Atmosphere switching is not an instantaneous "hard switch," but rather a
. For example, when switching from vacuum to slightly positive pressure, the system first shuts down the vacuum pump, then slowly opens the inlet valve, allowing the furnace pressure to gradually rise to the target value. This avoids the impact of sudden pressure changes on products and equipment.
For an English industrial furnace website, this topic should be presented in a way that helps the reader make a specification decision. That means connecting the furnace feature with material behavior, production rhythm, utility conditions, acceptance testing, and long-term maintenance.
Specification and acceptance checklist
- Use vacuum mainly for degassing, impurity removal, and low-temperature process stages.
- At very high temperatures, slight positive argon pressure can suppress graphite sublimation and prevent oxidation.
- The furnace control logic should make atmosphere switching repeatable rather than depending on operator memory.
- Cooling water should be monitored by flow, pressure, and temperature, not only by pump running status.
- Independent circuits are preferred for the shell, induction coil, power cabinet, and key electrical components.
- Emergency or redundant cooling should be considered for high-value batches and unattended operation.
- Heating elements and insulation determine maximum temperature, power consumption, maintenance interval, and batch cost.
- Consumable life depends on peak temperature, atmosphere purity, heating and cooling rate, and material volatility.
Questions to confirm before ordering
- What material will be treated, and what quality indicators must be reached after graphitization?
- What temperature curve, holding time, atmosphere, vacuum level, cooling method, and loading density are required?
- Which data will be recorded for each batch, and which acceptance tests will prove stable performance?
- Which spare parts, consumables, alarms, and maintenance checks are needed for long-term operation?
Engineering takeaway
A graphitization furnace should be specified as a complete high-temperature process system. When the buyer defines the material, process window, utilities, safety logic, and acceptance method clearly, the furnace is easier to operate, easier to troubleshoot, and more reliable in repeated production.
