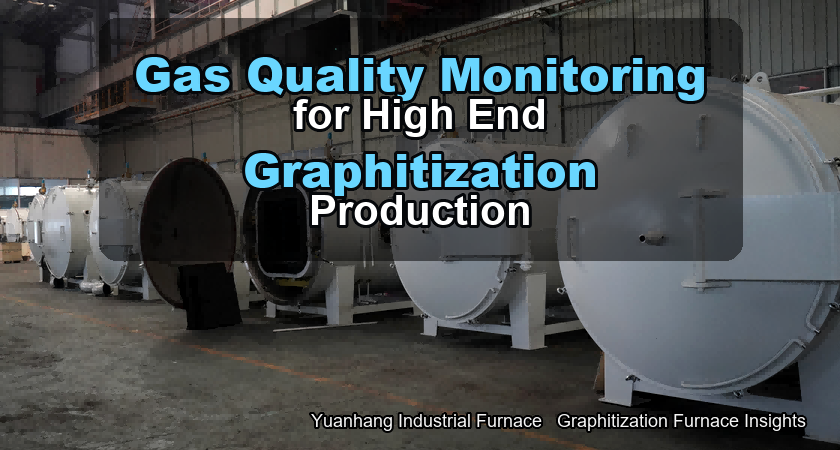

Dew Point and Oxygen Monitoring in High-Purity Graphitization
The quality of protective gases directly affects the purity and quality of graphitized products. Among many gas quality indicators,
are two of the most critical monitoring parameters.
Dew point refers to the temperature at which water vapor in a gas begins to condense into liquid water. The lower the dew point, the lower the water vapor content in the gas.
Why such a low requirement? Because even trace amounts of water vapor at high temperatures will react with carbon materials, producing carbon monoxide and hydrogen, leading to product oxidation and a decrease in purity. For every 10 °C increase in the dew point, the oxygen content in the product may double.
What the source article emphasizes
The Chinese source focuses on practical furnace selection and operation, not on a simple word-for-word product description. The important point is to understand how each specification affects real batch quality, operating cost, maintenance, and safety.
- Gas Quality Monitoring: Why are Dew Point and Oxygen Content Key Indicators?
- Dew Point: A Measurement of Water Vapor Content
- Oxygen Content: Directly Measures Oxidation Risk
Key technical points
- The dew point of the protective gas must be below -60 °C.
- The corresponding water content is approximately below 10 ppm.
- Semiconductor-grade graphite: Requires an oxygen content of <>1ppm
- Ordinary high-purity graphite: An oxygen content of
- Online Dew Point Meter: Real-time display of protective gas dew point, alarm for exceeding limits
- Oxygen Analyzer: Real-time monitoring of oxygen content, alarm for exceeding limits
Engineering interpretation for overseas buyers
The oxygen content in the protective gas directly determines the degree of oxidation of the product:
The readings of both instruments are displayed in real-time on the operating interface, making it easy for operators to understand. Automatic alarms are triggered when limits are exceeded; for severe exceedances, interlock protection (automatic shutdown or gas source switching) can be set.
Recommendation: For high-purity products, a dew point meter and oxygen analyzer are essential configurations. Monitoring dew point and oxygen content is like giving the protective gas a "physical examination"; only those that pass the examination can be used.
For an English industrial furnace website, this topic should be presented in a way that helps the reader make a specification decision. That means connecting the furnace feature with material behavior, production rhythm, utility conditions, acceptance testing, and long-term maintenance.
Specification and acceptance checklist
- At about 3000 °C, stable power, high-purity argon, low dew point, and reliable cooling must work as one system.
- For high-purity graphite work, confirm oxygen and moisture control before loading valuable material.
- Nitrogen should not be treated as a simple substitute for argon in ultra-high-temperature graphite service.
- Use vacuum mainly for degassing, impurity removal, and low-temperature process stages.
- At very high temperatures, slight positive argon pressure can suppress graphite sublimation and prevent oxidation.
- The furnace control logic should make atmosphere switching repeatable rather than depending on operator memory.
- A new furnace should be purified before high-purity products are loaded.
- Moisture, oil, machining residue, and background contaminants can remain inside a new hot zone.
Questions to confirm before ordering
- What material will be treated, and what quality indicators must be reached after graphitization?
- What temperature curve, holding time, atmosphere, vacuum level, cooling method, and loading density are required?
- Which data will be recorded for each batch, and which acceptance tests will prove stable performance?
- Which spare parts, consumables, alarms, and maintenance checks are needed for long-term operation?
Engineering takeaway
A graphitization furnace should be specified as a complete high-temperature process system. When the buyer defines the material, process window, utilities, safety logic, and acceptance method clearly, the furnace is easier to operate, easier to troubleshoot, and more reliable in repeated production.
