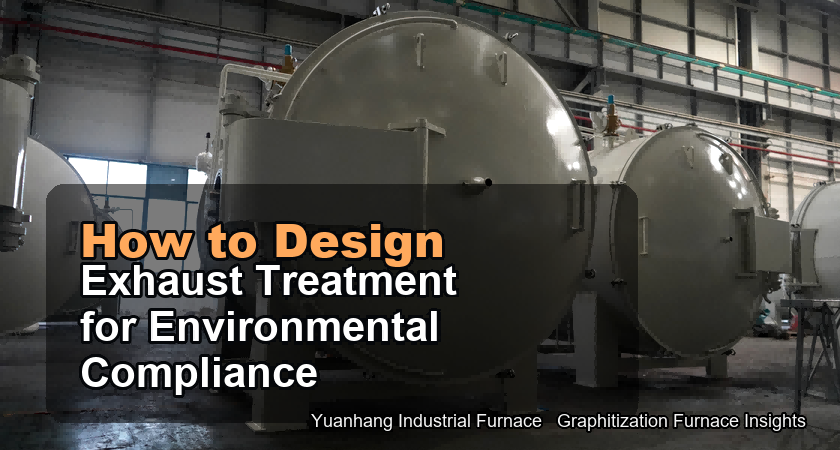

Tail Gas Treatment Design for Graphitization Furnace Compliance

The exhaust gas generated during graphitization cannot be directly emitted into the atmosphere. It contains dust particles and combustible gases (carbon monoxide, hydrogen, etc.). Direct emission not only pollutes the environment and poses safety hazards but also violates environmental regulations.

(made of ceramic or metal, resistant to temperatures of hundreds to thousands of degrees Celsius) to intercept dust particles. The filtration efficiency is typically above 99%.

The filter needs regular cleaning or filter element replacement; clogging will affect exhaust flow and equipment operation.

The filtered exhaust gas still contains combustible gases. There are two treatment methods:

What the source article emphasizes

The Chinese source focuses on practical furnace selection and operation, not on a simple word-for-word product description. The important point is to understand how each specification affects real batch quality, operating cost, maintenance, and safety.

• Exhaust Gas Treatment System: The Last Line of Defense for Environmental Compliance
• Dust Filtration
• Online Monitoring

Key technical points

• Dust concentration (mg/m³)
• CO concentration
• Total hydrocarbon content
• Use vacuum mainly for degassing, impurity removal, and low-temperature process stages.
• At very high temperatures, slight positive argon pressure can suppress graphite sublimation and prevent oxidation.
• The furnace control logic should make atmosphere switching repeatable rather than depending on operator memory.
• Volatile gas, tar, and dust control should be designed according to actual material chemistry.
• Condensation, filtration, and thermal oxidation are often combined rather than used as isolated devices.

Engineering interpretation for overseas buyers

Incinerator: The exhaust gas is introduced into the combustion chamber, where supplemental fuel heats it to above 800 °C, causing the combustible gases to be completely combusted and decomposed into CO? and H?O. This is the most thorough method but has high operating costs.

Catalytic Combustion: Under the action of a catalyst, the combustible gases are oxidized and decomposed at a lower temperature (300-500 °C). Low energy consumption, but catalyst requires regular replacement.

Online monitoring instruments are installed at the emission outlet for real-time monitoring:

Data is uploaded to the environmental protection department's monitoring platform in real time to ensure that emissions always meet standards.

For an English industrial furnace website, this topic should be presented in a way that helps the reader make a specification decision. That means connecting the furnace feature with material behavior, production rhythm, utility conditions, acceptance testing, and long-term maintenance.

Specification and acceptance checklist

• Use vacuum mainly for degassing, impurity removal, and low-temperature process stages.
• At very high temperatures, slight positive argon pressure can suppress graphite sublimation and prevent oxidation.
• The furnace control logic should make atmosphere switching repeatable rather than depending on operator memory.
• Volatile gas, tar, and dust control should be designed according to actual material chemistry.
• Condensation, filtration, and thermal oxidation are often combined rather than used as isolated devices.
• Environmental compliance should be planned before production, especially for binder-containing carbon materials.
• Energy tracking should be recorded by furnace, batch, recipe, and product type.
• The suitable heating curve is not always the fastest curve or the slowest curve; it should be proven by data.

Questions to confirm before ordering

• What material will be treated, and what quality indicators must be reached after graphitization?
• What temperature curve, holding time, atmosphere, vacuum level, cooling method, and loading density are required?
• Which data will be recorded for each batch, and which acceptance tests will prove stable performance?
• Which spare parts, consumables, alarms, and maintenance checks are needed for long-term operation?

Engineering takeaway

A graphitization furnace should be specified as a complete high-temperature process system. When the buyer defines the material, process window, utilities, safety logic, and acceptance method clearly, the furnace is easier to operate, easier to troubleshoot, and more reliable in repeated production.
