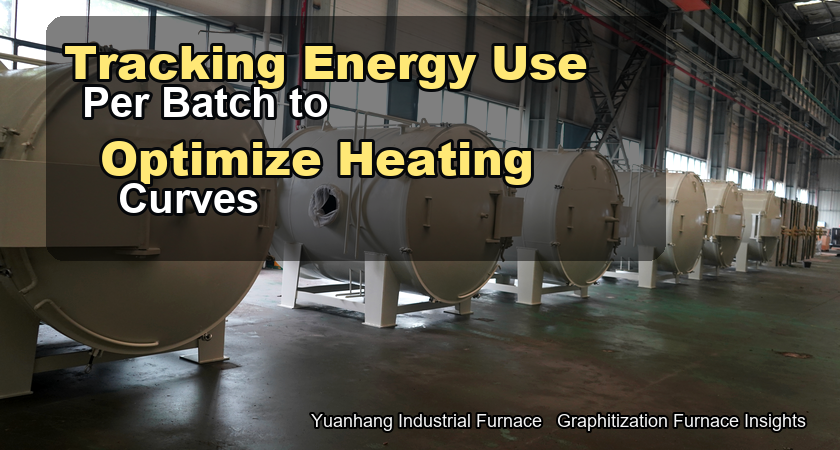

Energy Tracking for Each Graphitization Furnace Batch
A few months ago, I chatted with a long-time customer who manages an XX materials processing plant with thirty graphitization furnaces in operation. When discussing cost control, I asked him, "How much electricity does each furnace consume on average per firing?" He thought for a moment and said, "I heard it's tens of thousands, but that's an accounting matter. The specifics involve each graphitization furnace, and I haven't calculated it. I'm incredibly busy every day; I don't have time to calculate that..." I then asked, "Is there a significant difference in electricity consumption between different products and different processes?" He shook his head again. This conversation made me realize that many factories lack accurate tracking of the true energy consumption of graphitization furnaces. Everyone knows that electricity costs are a major expense, but they don't know exactly how much or where savings can be made.
Our equipment is equipped with an independent
. Complete energy consumption data for each furnace from start-up to completion is automatically recorded, including:
The energy consumption of each step in the production process, including the heating, holding, and cooling stages, is summarized and saved in the touchscreen and data tables for managers or operators to view at any time.
What the source article emphasizes
The Chinese source focuses on practical furnace selection and operation, not on a simple word-for-word product description. The important point is to understand how each specification affects real batch quality, operating cost, maintenance, and safety.
- Data Analysis for Potential
- A Real-World Energy-Saving Case
Key technical points
- At about 3000 °C, stable power, high-purity argon, low dew point, and reliable cooling must work as one system.
- For high-purity graphite work, confirm oxygen and moisture control before loading valuable material.
- Nitrogen should not be treated as a simple substitute for argon in ultra-high-temperature graphite service.
- Heating elements and insulation determine maximum temperature, power consumption, maintenance interval, and batch cost.
- Consumable life depends on peak temperature, atmosphere purity, heating and cooling rate, and material volatility.
- Spare hot-zone parts should be discussed during procurement, not only after the first failure.
- Recipe management is useful only when version control and permissions prevent uncontrolled parameter changes.
- Operators should be allowed to run approved recipes, while engineers control creation and modification.
Engineering interpretation for overseas buyers
With accurate data, analysis can be performed. For example, comparing the energy consumption differences of different heating rates-rapid heating has high power but short time, while slow heating has low power but long time; which is more energy-efficient? A data comparison will tell you. Another example is the energy consumption differences of different insulation temperatures-2800 °C and 3000 °C seem to differ by only 200 degrees, but the actual power consumption may differ by more than 30%.
Case Study: A client discovered through data analysis that their heating curve settings were too conservative-the heating rate was very slow, and the insulation time was too long. Based on our recommendations, the heating curve was optimized, appropriately increasing the heating rate and shortening the holding time, while ensuring product quality remained unaffected. After optimization, the power consumption per furnace was reduced by 23%. Based on 300 furnaces operating annually, this translates to annual electricity savings exceeding 800,000 yuan.
The prerequisite for energy conservation and cost reduction is understanding where the power consumption is located. Without precise metering, all optimizations are arbitrary. The investment in the electricity metering system was recouped from electricity bills within just a few months.
For an English industrial furnace website, this topic should be presented in a way that helps the reader make a specification decision. That means connecting the furnace feature with material behavior, production rhythm, utility conditions, acceptance testing, and long-term maintenance.
Specification and acceptance checklist
- At about 3000 °C, stable power, high-purity argon, low dew point, and reliable cooling must work as one system.
- For high-purity graphite work, confirm oxygen and moisture control before loading valuable material.
- Nitrogen should not be treated as a simple substitute for argon in ultra-high-temperature graphite service.
- Heating elements and insulation determine maximum temperature, power consumption, maintenance interval, and batch cost.
- Consumable life depends on peak temperature, atmosphere purity, heating and cooling rate, and material volatility.
- Spare hot-zone parts should be discussed during procurement, not only after the first failure.
- Recipe management is useful only when version control and permissions prevent uncontrolled parameter changes.
- Operators should be allowed to run approved recipes, while engineers control creation and modification.
Questions to confirm before ordering
- What material will be treated, and what quality indicators must be reached after graphitization?
- What temperature curve, holding time, atmosphere, vacuum level, cooling method, and loading density are required?
- Which data will be recorded for each batch, and which acceptance tests will prove stable performance?
- Which spare parts, consumables, alarms, and maintenance checks are needed for long-term operation?
Engineering takeaway
A graphitization furnace should be specified as a complete high-temperature process system. When the buyer defines the material, process window, utilities, safety logic, and acceptance method clearly, the furnace is easier to operate, easier to troubleshoot, and more reliable in repeated production.
