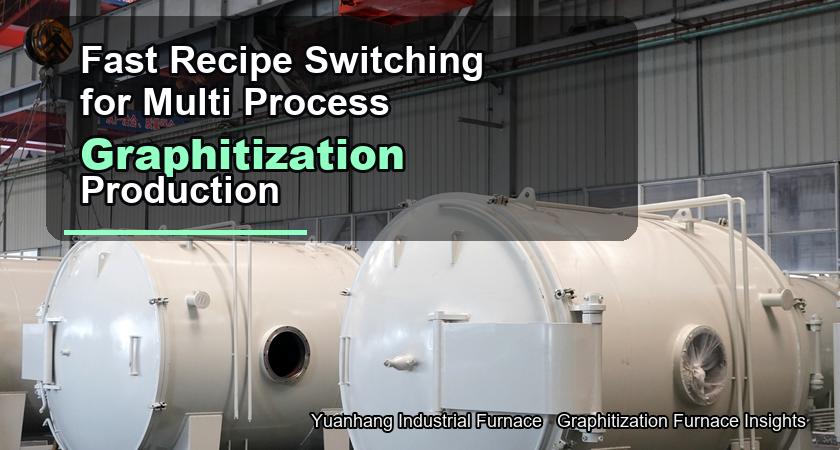

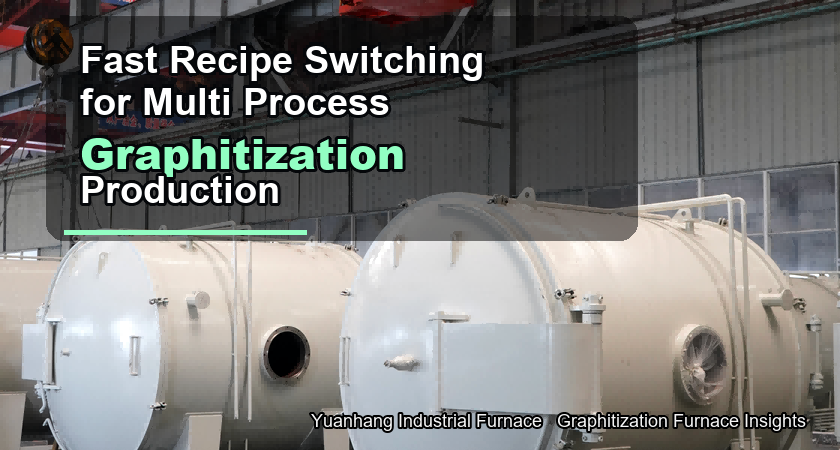

Fast Recipe Switching for Multi-Process Graphitization Furnaces
Last year, I visited a research institute. Their heat treatment lab had an old furnace, and the experienced operator complained to me that the biggest pain point wasn't the inability to reach the required temperature, but rather the hassle of changing materials. They, as R&D staff, frequently had to test different materials each day, switching formulas and process parameters. Each time they changed products, they had to reset a whole string of temperature parameters, which was not only chaotic but also prone to errors, wasting an entire batch of material.
I told him that this problem has been completely solved in the new generation of graphitization furnaces.
, making production changeovers no longer a time-consuming and laborious process, but a matter of seconds.
Each set of process parameters-heating curve, holding time, atmosphere switching point, cooling rate-can be saved as an independent
What the source article emphasizes
The Chinese source focuses on practical furnace selection and operation, not on a simple word-for-word product description. The important point is to understand how each specification affects real batch quality, operating cost, maintenance, and safety.
- Rapid Switching Between Multiple Formulas: Graphitization Furnaces No Longer a Problem
Key technical points
- Heating elements and insulation determine maximum temperature, power consumption, maintenance interval, and batch cost.
- Consumable life depends on peak temperature, atmosphere purity, heating and cooling rate, and material volatility.
- Spare hot-zone parts should be discussed during procurement, not only after the first failure.
- Recipe management is useful only when version control and permissions prevent uncontrolled parameter changes.
- Operators should be allowed to run approved recipes, while engineers control creation and modification.
- Operation logs help protect both product quality and process know-how.
- Digital interfaces should provide useful production data, not just a remote screen view.
- Temperature curves, power data, pressure trends, alarms, and operator actions are valuable for quality traceability.
Engineering interpretation for overseas buyers
in the system. The system can store hundreds of recipes, each with a unique name and number for easy retrieval. More importantly, recipes support
; each modification automatically saves the historical version, allowing for easy reverting to previous settings, ensuring that trial-and-error records during the R&D process are not lost. Process recipes can be imported via USB drive or manually entered by administrators. Input can be done by minute, hour, or even minute; our program allows for switching between these methods and can even be remotely updated or automatically entered via barcode scanning.
When switching to a specific product, the operator finds the corresponding recipe name or code on the touchscreen, clicks "Recall," and the system automatically loads and displays all recipe parameters and information, including a JJAD curve preview. After confirmation, it can be started with a single click. The entire process takes only a few seconds, requiring no manual input of any numbers or item-by-item verification. Our temperature controller automatically compares the recipe data after it is written into the system, ensuring accuracy. This function is invaluable in scenarios involving frequent switching, such as "burning product A today and product B tomorrow."
To prevent accidental operation, the system supports multi-user permission management. Process engineers can create and edit recipes, while regular operators can only use authorized recipes and execute production. Management can view all operation records. This ensures the confidentiality of process parameters and prevents unauthorized modifications.
For an English industrial furnace website, this topic should be presented in a way that helps the reader make a specification decision. That means connecting the furnace feature with material behavior, production rhythm, utility conditions, acceptance testing, and long-term maintenance.
Specification and acceptance checklist
- Heating elements and insulation determine maximum temperature, power consumption, maintenance interval, and batch cost.
- Consumable life depends on peak temperature, atmosphere purity, heating and cooling rate, and material volatility.
- Spare hot-zone parts should be discussed during procurement, not only after the first failure.
- Recipe management is useful only when version control and permissions prevent uncontrolled parameter changes.
- Operators should be allowed to run approved recipes, while engineers control creation and modification.
- Operation logs help protect both product quality and process know-how.
- Digital interfaces should provide useful production data, not just a remote screen view.
- Temperature curves, power data, pressure trends, alarms, and operator actions are valuable for quality traceability.
Questions to confirm before ordering
- What material will be treated, and what quality indicators must be reached after graphitization?
- What temperature curve, holding time, atmosphere, vacuum level, cooling method, and loading density are required?
- Which data will be recorded for each batch, and which acceptance tests will prove stable performance?
- Which spare parts, consumables, alarms, and maintenance checks are needed for long-term operation?
Engineering takeaway
A graphitization furnace should be specified as a complete high-temperature process system. When the buyer defines the material, process window, utilities, safety logic, and acceptance method clearly, the furnace is easier to operate, easier to troubleshoot, and more reliable in repeated production.
