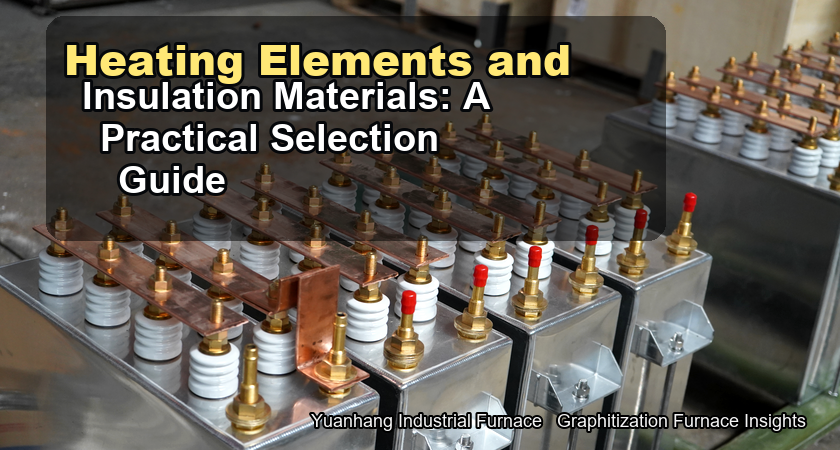

Heating Elements and Insulation for Graphitization Furnaces
The heating element and insulation material inside the furnace are indeed the true energy core of the graphitization furnace. The choice of materials, the connection method, and the lifespan directly determine your upper temperature limit, energy consumption level, and cost per furnace.
Using a round rod or plate made of high-purity, high-strength isostatic graphite, connected by a water-cooled metal electrode. The structure is relatively simple, and maintenance and replacement are convenient.

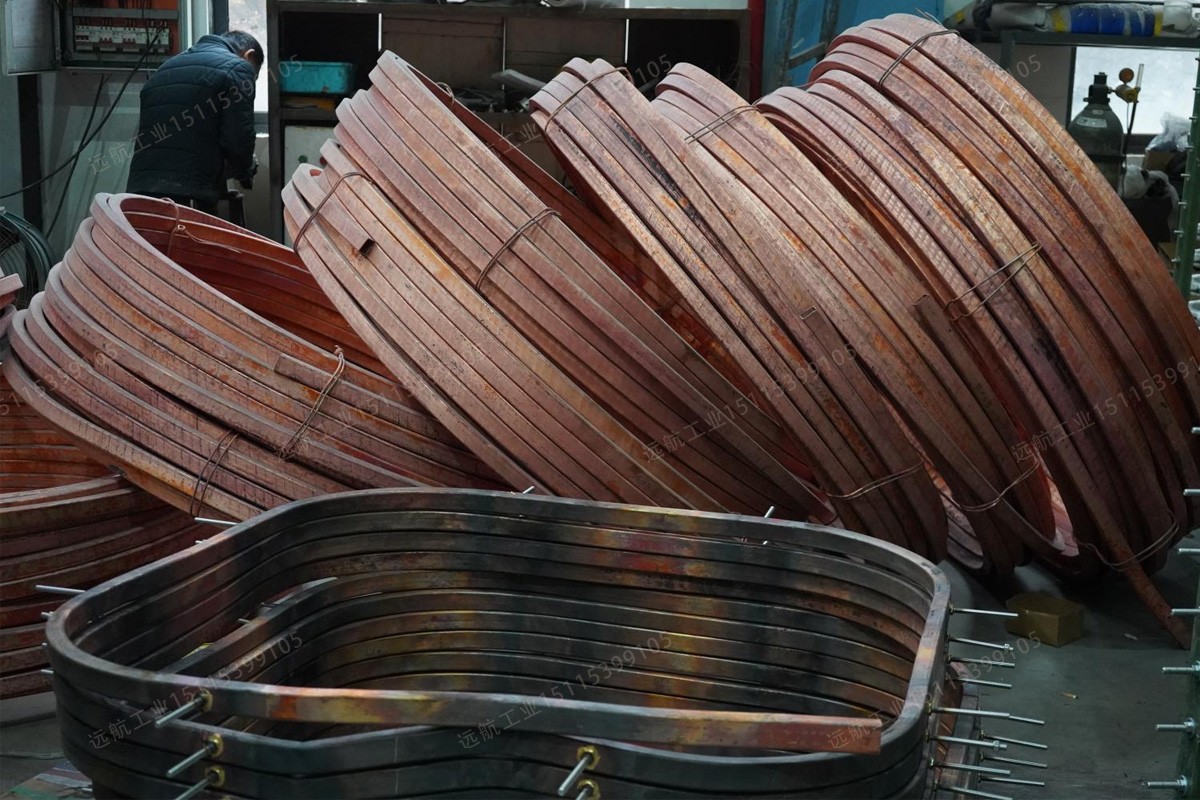

At ultra-high temperatures, metal electrode wear is very severe. We generally provide a solution based on the customer's process and production requirements, using high-quality isostatic graphite processed into a cylindrical shape, placed in the center of the induction coil. An alternating current is passed through the induction coil, inducing eddy currents inside the graphite cylinder, causing it to heat up. There are no physical electrode connections, completely eliminating the electrode wear problem at ultra-high temperatures.
We use graphite felt as the insulation material throughout our product line, instead of ordinary carbon felt. Graphite felt undergoes high-temperature graphitization treatment, resulting in higher purity, lower thermal conductivity, and better thermal stability. Carbon felt is prone to pulverization and shrinkage at ultra-high temperatures, leading to a rapid decline in its insulation performance.
What the source article emphasizes
The Chinese source focuses on practical furnace selection and operation, not on a simple word-for-word product description. The important point is to understand how each specification affects real batch quality, operating cost, maintenance, and safety.
- Heating Element and Insulation Material: The Energy Core of the Graphitization Furnace
- Heating Element Selection
- Below 2500 °C: Resistance Heating + Graphite Rod
- Above 2500 °C: Induction Heating + Graphite Cylinder (The Only Solution)
- Insulation Materials: Graphite Felt vs. Carbon Felt
Key technical points
- Maximum operating temperature: 3000 °C vs 2600 °C, the service life can differ by several times
- Purity of protective atmosphere: Trace amounts of oxygen accelerate oxidation and loss
- Heating and cooling rate: Rapid heating and cooling generate thermal stress, leading to cracking and deformation
- Material factors: Raw materials containing volatile substances will corrode the heating element
Engineering interpretation for overseas buyers
We use graphite felt throughout our product line, instead of ordinary carbon felt. Graphite felt undergoes high-temperature graphitization treatment, resulting in higher purity, lower thermal conductivity, and better thermal stability.
Carbon felt is prone to pulverization and shrinkage at ultra-high temperatures, causing its insulation performance to deteriorate rapidly.
Normal service life is between 50 and 200 heats, the difference depending on:
Life Extension Recommendation: Strict adherence to daily operating procedures and maintenance protocols is the most effective way to extend the lifespan of hot zones or easily damaged furnace components. There are no shortcuts; it's simply a matter of following the rules and operating procedures meticulously.
For an English industrial furnace website, this topic should be presented in a way that helps the reader make a specification decision. That means connecting the furnace feature with material behavior, production rhythm, utility conditions, acceptance testing, and long-term maintenance.
Specification and acceptance checklist
- At about 3000 °C, stable power, high-purity argon, low dew point, and reliable cooling must work as one system.
- For high-purity graphite work, confirm oxygen and moisture control before loading valuable material.
- Nitrogen should not be treated as a simple substitute for argon in ultra-high-temperature graphite service.
- Induction heating is usually more suitable for long-term graphitization above about 2500 °C.
- Resistance heating can be simpler at lower temperatures, but electrode loss and hot-zone life must be considered.
- Compare heating method by process temperature, batch size, uniformity, maintenance, and total operating cost.
- Leak checking before heating is essential when processing high-value graphite or carbon materials.
- Water-cooled flanges and suitable O-rings help keep sealing parts below their thermal aging limit.
Questions to confirm before ordering
- What material will be treated, and what quality indicators must be reached after graphitization?
- What temperature curve, holding time, atmosphere, vacuum level, cooling method, and loading density are required?
- Which data will be recorded for each batch, and which acceptance tests will prove stable performance?
- Which spare parts, consumables, alarms, and maintenance checks are needed for long-term operation?
Engineering takeaway
A graphitization furnace should be specified as a complete high-temperature process system. When the buyer defines the material, process window, utilities, safety logic, and acceptance method clearly, the furnace is easier to operate, easier to troubleshoot, and more reliable in repeated production.
