I. Rich Practical Cases

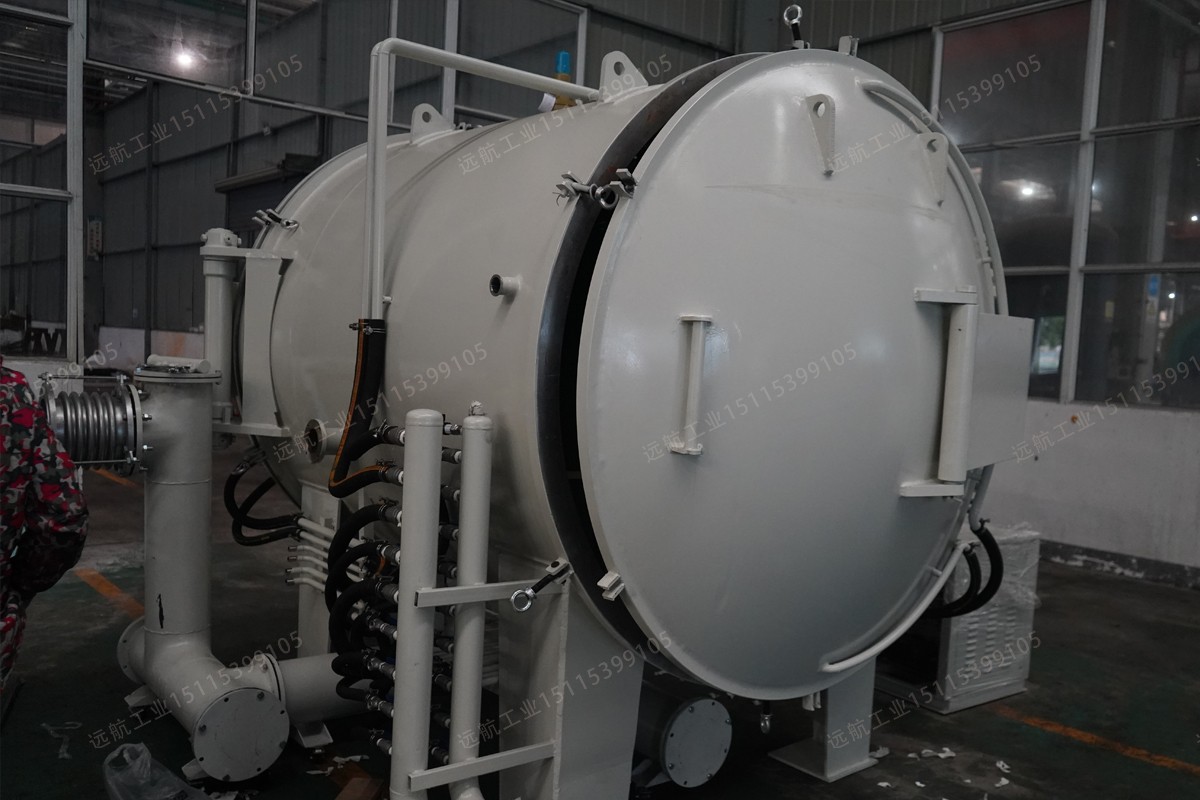

• Extensive Validation: We have designed, manufactured, and delivered hundreds of specialized high-temperature furnaces for PI film carbonization and graphitization processing to numerous leading enterprises both domestically and internationally, with equipment specifications ranging from small-scale R&D to large-scale continuous production.

• Mature Process: The long-term stable operation performance of these equipment proves that our technical solutions fully meet the stringent requirements of PI film graphitization regarding temperature uniformity, atmosphere purity, and transmission stability.

•

II. Core Technical Key Points

• Ultra-High Temperature and High Uniformity: Requires high temperatures of 2800-3200°C, with extremely high temperature field uniformity within the effective heating zone (typically required to be ≤±10°C) to ensure consistent performance of the entire roll of PI film.

• High-Purity Atmosphere Protection: Must use high-purity argon with extremely low dew point as the protective atmosphere to strictly prevent微量 oxygen from causing oxidation erosion to the PI film at high temperatures.

• Continuous Transmission System: For continuous graphitization furnaces, precise tension control and smooth transmission mechanisms are needed to ensure the PI film does not deviate, wrinkle, or break at high temperatures.

• Volatile Product Handling: PI film releases volatile small molecules at high temperatures. The furnace body needs an efficient exhaust system design to prevent carbon deposition from affecting product quality and equipment lifespan.

•
