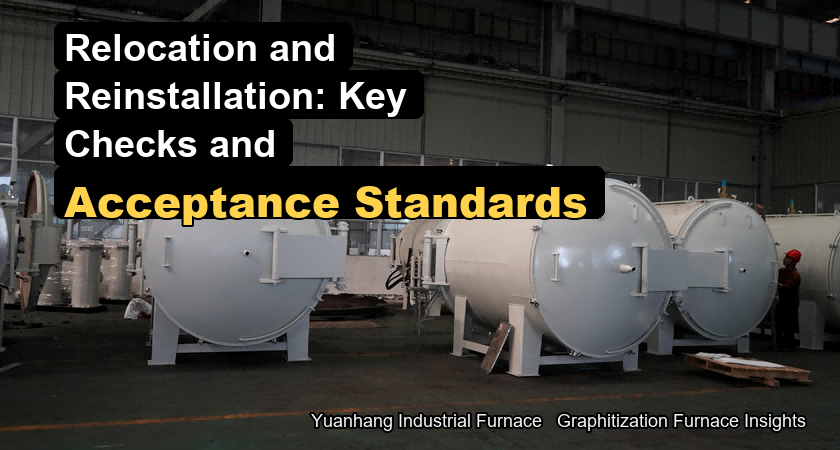

Moving and Reinstalling a Graphitization Furnace Safely
When a factory expands, relocates, or adjusts its production line, the graphitization furnace needs to be moved. This is not a simple matter of "disassembling and reinstalling"; there are many precautions to take.
Complete acceptance testing must be performed again after relocation:
All connections are secure, valves are flexible, and the furnace door is sealed.
Insulation resistance test, grounding resistance test, wiring verification.
What the source article emphasizes
The Chinese source focuses on practical furnace selection and operation, not on a simple word-for-word product description. The important point is to understand how each specification affects real batch quality, operating cost, maintenance, and safety.
- Preparation Before Relocation
- Relocation Process
- Post-reinstallation acceptance testing is required after relocation.
Key technical points
- Photo Recording: Take photos of all pipeline connections, electrical wiring, and equipment layout for comprehensive documentation.
- Labeling: Mark each water pipe, gas pipe, and cable, indicating its destination.
- Protecting Precision Components: Pack precision equipment such as vacuum pumps, power cabinets, and control cabinets separately and protect them from shock.
- Draining Liquids: Completely drain cooling water and vacuum pump oil.
- Professional Lifting: The graphitization furnace body is heavy and has a precise structure, requiring operation by a professional lifting company.
- Shockproof Transportation: Shockproof securing measures are taken during transportation, especially for precision instruments.
- Dedicated Personnel Accompanying the Vehicle: Technical personnel are assigned to accompany the precision equipment on-site to handle any emergencies.
Engineering interpretation for overseas buyers
Water pressure test, flow rate check for each circuit.
Verify the integrity of the seal (the sealing ring may have shifted after relocation).
Retest the temperature field using a ceramic temperature measuring ring.
Heat to operating temperature and observe various indicators.
For an English industrial furnace website, this topic should be presented in a way that helps the reader make a specification decision. That means connecting the furnace feature with material behavior, production rhythm, utility conditions, acceptance testing, and long-term maintenance.
Specification and acceptance checklist
- Define the effective heating zone instead of using total chamber size as the acceptance basis.
- Write the temperature uniformity value and verification method into the technical agreement.
- Use ceramic temperature rings or an equivalent method when high-temperature mapping cannot be measured directly.
- Use vacuum mainly for degassing, impurity removal, and low-temperature process stages.
- At very high temperatures, slight positive argon pressure can suppress graphite sublimation and prevent oxidation.
- The furnace control logic should make atmosphere switching repeatable rather than depending on operator memory.
- Leak checking before heating is essential when processing high-value graphite or carbon materials.
- Water-cooled flanges and suitable O-rings help keep sealing parts below their thermal aging limit.
Questions to confirm before ordering
- What material will be treated, and what quality indicators must be reached after graphitization?
- What temperature curve, holding time, atmosphere, vacuum level, cooling method, and loading density are required?
- Which data will be recorded for each batch, and which acceptance tests will prove stable performance?
- Which spare parts, consumables, alarms, and maintenance checks are needed for long-term operation?
Engineering takeaway
A graphitization furnace should be specified as a complete high-temperature process system. When the buyer defines the material, process window, utilities, safety logic, and acceptance method clearly, the furnace is easier to operate, easier to troubleshoot, and more reliable in repeated production.
