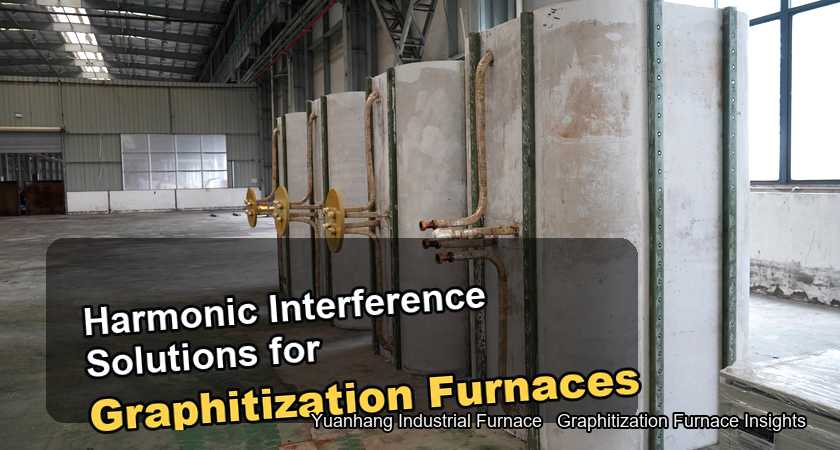

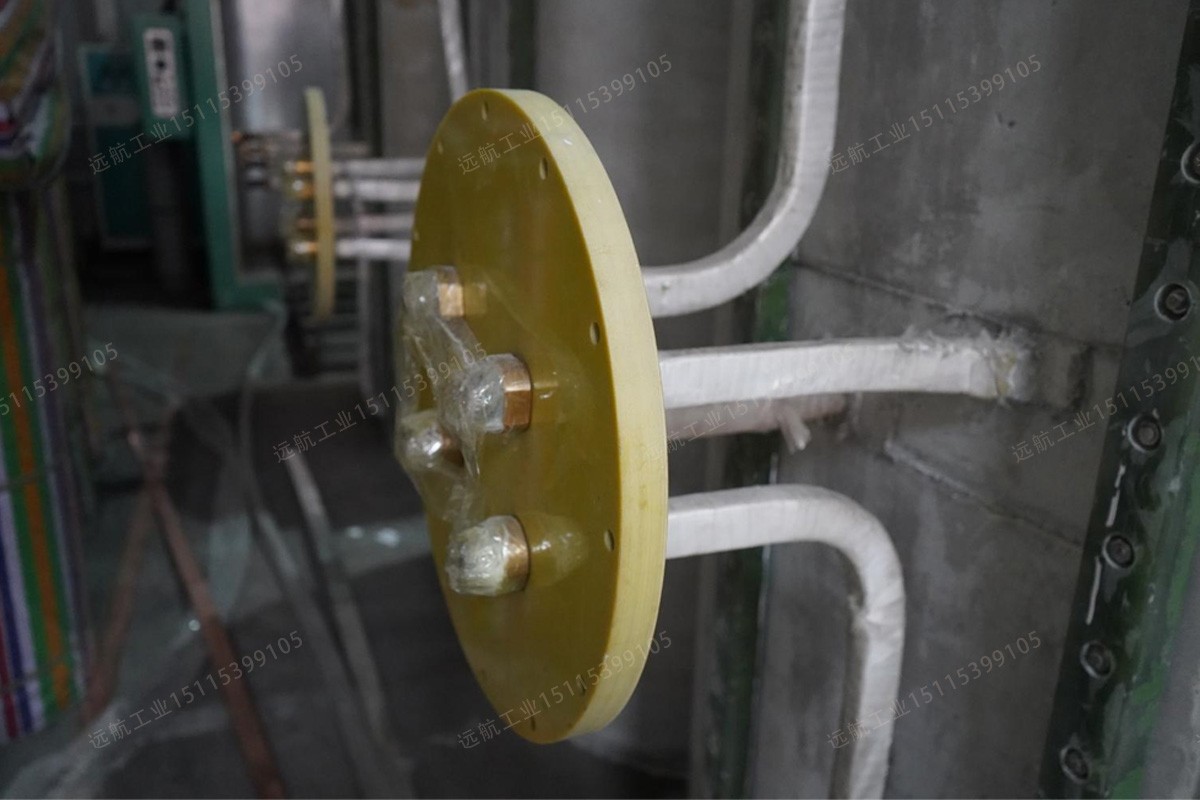

How to Reduce Harmonic Interference from Graphitization Furnaces

Has your precision instrument been malfunctioning inexplicably lately? Data jumping around, sensors failing, even control system errors? You've checked the software and the wiring, but the problem persists? I've seen this many times, and the problem often comes from that big machine in the workshop-the graphitization furnace.

Harmonics are primarily generated by the power regulation method of SCR power supplies. Traditional SCR power supplies regulate power through phase-shift control, which inevitably injects harmonics into the power grid. These harmonic currents circulate within the grid, causing real harm:

Increased line losses and reactive power, leading to increased electricity costs.

Causing grid voltage distortion, causing malfunctions or even damage to precision instruments.

What the source article emphasizes

The Chinese source focuses on practical furnace selection and operation, not on a simple word-for-word product description. The important point is to understand how each specification affects real batch quality, operating cost, maintenance, and safety.

• Where do the harmonics come from?
• Eradicative Solution Two: SCR + APF Harmonic Mitigation Device
• The Ultimate Recommendation for Protecting Precision Instruments

Key technical points

• Compare IGBT and SCR power systems by power factor, harmonic impact, cabinet size, control precision, and lifetime cost.
• If SCR is selected, evaluate whether APF harmonic filtering and extra electrical room space are required.
• Power quality is not only an electricity issue; it can affect instruments, sensors, and production stability.
• Digital interfaces should provide useful production data, not just a remote screen view.
• Temperature curves, power data, pressure trends, alarms, and operator actions are valuable for quality traceability.
• MES or SCADA integration should be defined by data points, communication protocol, permissions, and reporting needs.
• Confirm the process temperature, holding time, atmosphere, loading volume, and product quality indicators before comparing suppliers.
• Ask which indicators will be tested at the factory, which will be tested on site, and which need production verification.

Engineering interpretation for overseas buyers

Affecting the normal operation of other equipment on the same power supply line.

IGBT power supplies use PWM control technology, achieving a power factor of over 0.95. They generate minimal harmonics, causing virtually no pollution to the power grid. This is a one-time solution, requiring no additional harmonic mitigation equipment, does not increase floor space, and is easy to maintain.

If an SCR power supply is indeed necessary, an Active Power Filter (APF) can be specially configured based on the equipment power and the on-site power grid conditions. However, this will increase additional procurement costs, and the APF itself also requires space.

Of course, the most important measure is: to physically isolate the power supply circuit of the graphitization furnace from the precision instruments, control systems, and precision sensors in the workshop. Ideally, they should be powered by different transformers and run on different power buses. No matter how much money you spend on filters, it's not as effective as completely separating the pollution source from the victims.

For an English industrial furnace website, this topic should be presented in a way that helps the reader make a specification decision. That means connecting the furnace feature with material behavior, production rhythm, utility conditions, acceptance testing, and long-term maintenance.

Specification and acceptance checklist

• Compare IGBT and SCR power systems by power factor, harmonic impact, cabinet size, control precision, and lifetime cost.
• If SCR is selected, evaluate whether APF harmonic filtering and extra electrical room space are required.
• Power quality is not only an electricity issue; it can affect instruments, sensors, and production stability.
• Digital interfaces should provide useful production data, not just a remote screen view.
• Temperature curves, power data, pressure trends, alarms, and operator actions are valuable for quality traceability.
• MES or SCADA integration should be defined by data points, communication protocol, permissions, and reporting needs.
• Confirm the process temperature, holding time, atmosphere, loading volume, and product quality indicators before comparing suppliers.
• Ask which indicators will be tested at the factory, which will be tested on site, and which need production verification.

Questions to confirm before ordering

• What material will be treated, and what quality indicators must be reached after graphitization?
• What temperature curve, holding time, atmosphere, vacuum level, cooling method, and loading density are required?
• Which data will be recorded for each batch, and which acceptance tests will prove stable performance?
• Which spare parts, consumables, alarms, and maintenance checks are needed for long-term operation?

Engineering takeaway

A graphitization furnace should be specified as a complete high-temperature process system. When the buyer defines the material, process window, utilities, safety logic, and acceptance method clearly, the furnace is easier to operate, easier to troubleshoot, and more reliable in repeated production.
