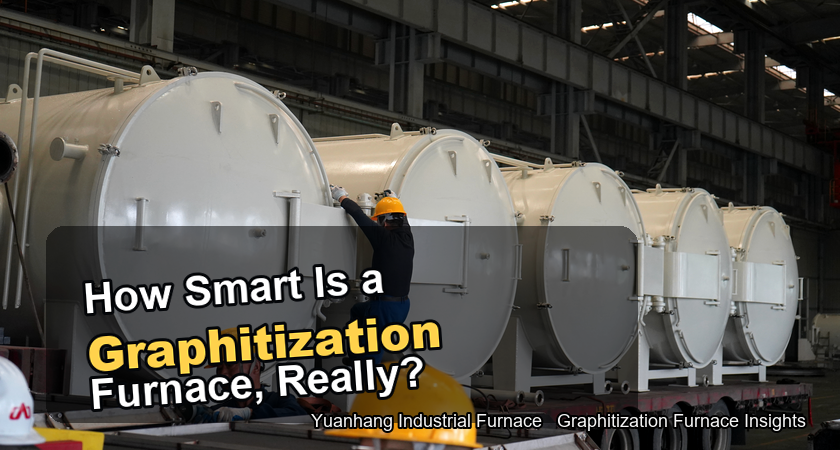

How Intelligent Is a Modern Graphitization Furnace?

Last autumn, a customer who researches and develops specialty graphite visited our factory and discussed a problem that had been troubling him for a long time. His R&D team frequently needed to experiment with different process curves-some materials required stepped heating, pausing at a certain temperature range for a long time before slowly rising to the target temperature; other materials were extremely sensitive to the heating rate, and even a slight deviation would be disastrous. Each time they changed processes, they relied entirely on experienced technicians to manually adjust the process, which was slow, inaccurate, and resulted in extremely low R&D efficiency.

I told him that these problems already have mature solutions in modern graphitization furnaces.

Although graphitization furnaces have seen significant improvements compared to ten years ago, they now generally possess the following capabilities:

Our control system has a built-in process recipe management function, capable of storing hundreds of different process curves. Each recipe is a complete temperature-time program, including all parameters such as heating rate, target temperature, holding time, cooling rate, and atmosphere switching nodes. After researchers develop a new process, they save the parameters as a recipe, which can be recalled with a single click the next time it's needed, completing the switch in seconds. No re-entry is required, and there's no need to rely on memory to restore, ensuring complete consistency every time.

What the source article emphasizes

The Chinese source focuses on practical furnace selection and operation, not on a simple word-for-word product description. The important point is to understand how each specification affects real batch quality, operating cost, maintenance, and safety.

• Process background
• Specification focus
• Operation and acceptance

Key technical points

• Heating elements and insulation determine maximum temperature, power consumption, maintenance interval, and batch cost.
• Consumable life depends on peak temperature, atmosphere purity, heating and cooling rate, and material volatility.
• Spare hot-zone parts should be discussed during procurement, not only after the first failure.
• Recipe management is useful only when version control and permissions prevent uncontrolled parameter changes.
• Operators should be allowed to run approved recipes, while engineers control creation and modification.
• Operation logs help protect both product quality and process know-how.
• Emergency design should cover power loss, cooling failure, gas interruption, overtemperature, and unsafe pressure.
• UPS, backup gas, safe sealing, and emergency cooling logic should be tested during commissioning.

Engineering interpretation for overseas buyers

Multi-segment temperature control is the core of the intelligent system. The system divides the entire graphitization process into several stages, each with different target temperatures, heating rates, and holding times. The system automatically controls power output, precisely following the set temperature curve. Employing a

, the system automatically optimizes control parameters based on the furnace's thermal inertia, suppressing temperature overshoot and fluctuations. This function is irreplaceable for material development requiring complex temperature regimes.

Through industrial Ethernet or 4G/5G modules, the equipment can connect to the factory's local area network or the internet. Authorized personnel can

view the equipment's operating status in real time

For an English industrial furnace website, this topic should be presented in a way that helps the reader make a specification decision. That means connecting the furnace feature with material behavior, production rhythm, utility conditions, acceptance testing, and long-term maintenance.

Specification and acceptance checklist

• Heating elements and insulation determine maximum temperature, power consumption, maintenance interval, and batch cost.
• Consumable life depends on peak temperature, atmosphere purity, heating and cooling rate, and material volatility.
• Spare hot-zone parts should be discussed during procurement, not only after the first failure.
• Recipe management is useful only when version control and permissions prevent uncontrolled parameter changes.
• Operators should be allowed to run approved recipes, while engineers control creation and modification.
• Operation logs help protect both product quality and process know-how.
• Emergency design should cover power loss, cooling failure, gas interruption, overtemperature, and unsafe pressure.
• UPS, backup gas, safe sealing, and emergency cooling logic should be tested during commissioning.

Questions to confirm before ordering

• What material will be treated, and what quality indicators must be reached after graphitization?
• What temperature curve, holding time, atmosphere, vacuum level, cooling method, and loading density are required?
• Which data will be recorded for each batch, and which acceptance tests will prove stable performance?
• Which spare parts, consumables, alarms, and maintenance checks are needed for long-term operation?

Engineering takeaway

A graphitization furnace should be specified as a complete high-temperature process system. When the buyer defines the material, process window, utilities, safety logic, and acceptance method clearly, the furnace is easier to operate, easier to troubleshoot, and more reliable in repeated production.
