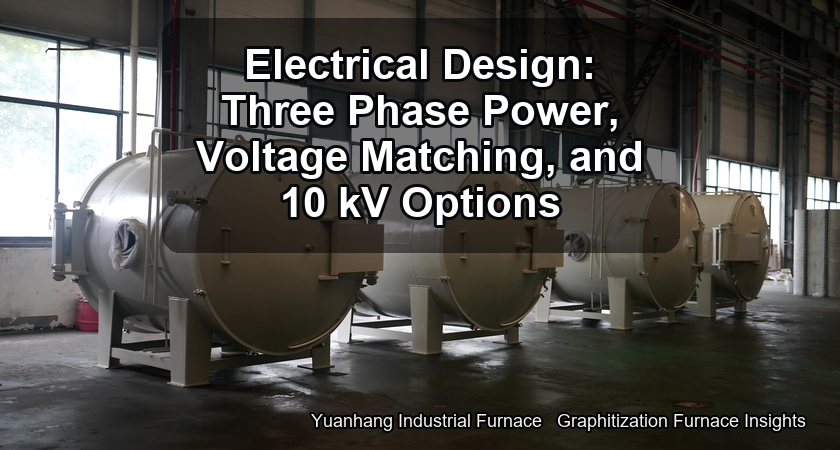

Electrical Design Details for Custom Graphitization Furnaces
Graphitization furnaces have enormous power requirements, and the power supply cannot be achieved by simply plugging it into any socket. Even a small to medium-sized furnace starts at several hundred kilowatts, while large industrial furnaces can easily reach several thousand kilowatts.
Three-phase AC power supply -this is a strict requirement, with no room for negotiation. Single-phase power supply is not feasible for such high-power equipment and would lead to severe grid imbalance.
Our inductive power supplies are compatible with multiple voltage levels:
Our high-temperature medium-frequency graphitization furnaces can be customized with power supply solutions for customers in any country and with any power grid standard.
What the source article emphasizes
The Chinese source focuses on practical furnace selection and operation, not on a simple word-for-word product description. The important point is to understand how each specification affects real batch quality, operating cost, maintenance, and safety.
- Graphitization Furnace Electrical Solution Design: From Sockets to Custom-Made
- Basic Power Supply Requirements
- Voltage Adaptation Solutions
- For high-power equipment, we recommend 10kV high voltage power supply via a transformer
Key technical points
- Low voltage solutions: 380V, 400V, 415V (50Hz/60Hz)
- Medium and high voltage solutions: 660V, 10kV
- At about 3000 °C, stable power, high-purity argon, low dew point, and reliable cooling must work as one system.
- For high-purity graphite work, confirm oxygen and moisture control before loading valuable material.
- Nitrogen should not be treated as a simple substitute for argon in ultra-high-temperature graphite service.
- Recipe management is useful only when version control and permissions prevent uncontrolled parameter changes.
- Operators should be allowed to run approved recipes, while engineers control creation and modification.
- Operation logs help protect both product quality and process know-how.
Engineering interpretation for overseas buyers
For 1000kW and above, we strongly recommend using a 10kV high voltage solution.
Parameters 380V Low Voltage 10kV High Voltage
Just tell us two key pieces of information: the local power grid voltage level and the available transformer capacity. We recommend that the transformer capacity be at least 1.3 times the maximum power of the equipment.
Experience: The more thorough the electrical communication in the early stages of the project, the smoother the project will proceed. The more stable the operation will be after commissioning.
For an English industrial furnace website, this topic should be presented in a way that helps the reader make a specification decision. That means connecting the furnace feature with material behavior, production rhythm, utility conditions, acceptance testing, and long-term maintenance.
Specification and acceptance checklist
- At about 3000 °C, stable power, high-purity argon, low dew point, and reliable cooling must work as one system.
- For high-purity graphite work, confirm oxygen and moisture control before loading valuable material.
- Nitrogen should not be treated as a simple substitute for argon in ultra-high-temperature graphite service.
- Recipe management is useful only when version control and permissions prevent uncontrolled parameter changes.
- Operators should be allowed to run approved recipes, while engineers control creation and modification.
- Operation logs help protect both product quality and process know-how.
- Digital interfaces should provide useful production data, not just a remote screen view.
- Temperature curves, power data, pressure trends, alarms, and operator actions are valuable for quality traceability.
Questions to confirm before ordering
- What material will be treated, and what quality indicators must be reached after graphitization?
- What temperature curve, holding time, atmosphere, vacuum level, cooling method, and loading density are required?
- Which data will be recorded for each batch, and which acceptance tests will prove stable performance?
- Which spare parts, consumables, alarms, and maintenance checks are needed for long-term operation?
Engineering takeaway
A graphitization furnace should be specified as a complete high-temperature process system. When the buyer defines the material, process window, utilities, safety logic, and acceptance method clearly, the furnace is easier to operate, easier to troubleshoot, and more reliable in repeated production.
