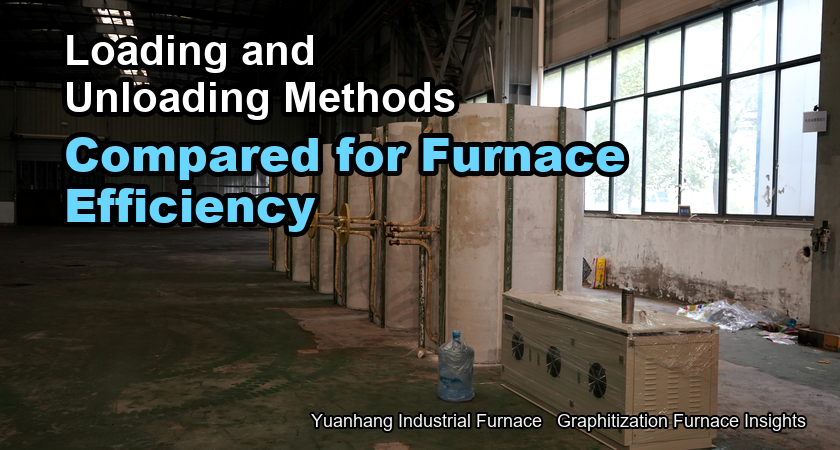

How Loading Method Affects Graphitization Furnace Efficiency
The choice of loading and unloading methods directly affects your daily production capacity and the labor intensity of your workers. I've seen factories that, because they didn't choose the right unloading method, could only produce one and a half furnaces a day instead of the usual three.
There are no problems with small-batch production, but it becomes slower with large-batch production.
Comparison of Three Feeding and Discharging Schemes
The furnace door is located at the top, and materials are lifted using a crane or electric hoist. The structure is simple and requires no additional lifting mechanism. Suitable for loose materials or small products. Prerequisite: The workshop must be equipped with a crane with sufficient height. Disadvantage: The material basket will sway during lifting, and brittle products are easily damaged.
What the source article emphasizes
The Chinese source focuses on practical furnace selection and operation, not on a simple word-for-word product description. The important point is to understand how each specification affects real batch quality, operating cost, maintenance, and safety.
- Tooling and Fixture Material
Key technical points
- Leak checking before heating is essential when processing high-value graphite or carbon materials.
- Water-cooled flanges and suitable O-rings help keep sealing parts below their thermal aging limit.
- A small air leak can oxidize the batch, so sealing design and maintenance records should be part of acceptance.
- Loading density must be balanced with temperature uniformity and gas flow.
- Fixtures, spacing, and product orientation can affect both quality and cycle time.
- A loading plan should be tested with real products before it becomes the production standard.
- A new furnace should be purified before high-purity products are loaded.
- Moisture, oil, machining residue, and background contaminants can remain inside a new hot zone.
Engineering interpretation for overseas buyers
The furnace bottom is designed as a liftable platform. During loading, the platform is raised to a suitable height, and after processing, it rises to deliver the material. Suitable for large, heavy graphite plates or block materials. High safety, as materials are essentially not moved in the air. Disadvantages: High requirements for furnace bottom sealing and lifting mechanism; hydraulic seals require regular inspection.
3?? Horizontal Flat Discharge (Side In/Out) - We Recommend
The furnace door opens to the side; materials are placed on a flatcar and pushed in and pulled out via guide rails. Advantages:
The most labor-saving operation for workers, no hoisting required.
For an English industrial furnace website, this topic should be presented in a way that helps the reader make a specification decision. That means connecting the furnace feature with material behavior, production rhythm, utility conditions, acceptance testing, and long-term maintenance.
Specification and acceptance checklist
- Leak checking before heating is essential when processing high-value graphite or carbon materials.
- Water-cooled flanges and suitable O-rings help keep sealing parts below their thermal aging limit.
- A small air leak can oxidize the batch, so sealing design and maintenance records should be part of acceptance.
- Loading density must be balanced with temperature uniformity and gas flow.
- Fixtures, spacing, and product orientation can affect both quality and cycle time.
- A loading plan should be tested with real products before it becomes the production standard.
- A new furnace should be purified before high-purity products are loaded.
- Moisture, oil, machining residue, and background contaminants can remain inside a new hot zone.
Questions to confirm before ordering
- What material will be treated, and what quality indicators must be reached after graphitization?
- What temperature curve, holding time, atmosphere, vacuum level, cooling method, and loading density are required?
- Which data will be recorded for each batch, and which acceptance tests will prove stable performance?
- Which spare parts, consumables, alarms, and maintenance checks are needed for long-term operation?
Engineering takeaway
A graphitization furnace should be specified as a complete high-temperature process system. When the buyer defines the material, process window, utilities, safety logic, and acceptance method clearly, the furnace is easier to operate, easier to troubleshoot, and more reliable in repeated production.
