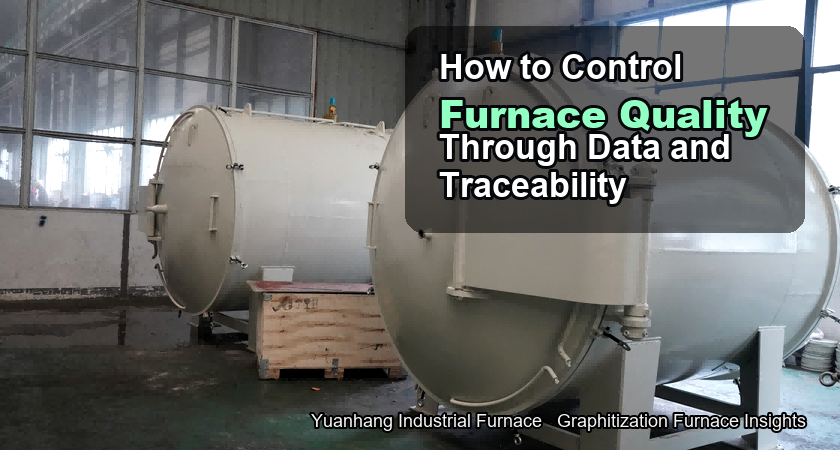

Quality Control Through Data Traceability in Graphitization Furnaces
Many factories have experienced the scenario where a problem arises with a batch of products, and after a long investigation, it turns out the data wasn't recorded completely. Without complete data records, quality traceability is impossible. Our control system has a built-in fully automatic data recording function, providing a solid digital foundation for quality control.
The entire process, from start to finish, is recorded automatically with a sampling frequency of seconds for all key parameters:
Data from each furnace is automatically saved as an independent file, named by
for easy retrieval. Data is stored on the device's local hard drive and can be automatically backed up to the factory server or cloud via network. Storage capacity is sufficient to store complete data for
What the source article emphasizes
The Chinese source focuses on practical furnace selection and operation, not on a simple word-for-word product description. The important point is to understand how each specification affects real batch quality, operating cost, maintenance, and safety.
- Fully Automatic Recording
- Automatic Archiving and Management
- Rapid Traceability and Analysis
Key technical points
- Temperature Data: Real-time temperature, set temperature, and deviation at each measurement point
- Pressure Data: Absolute/relative pressure inside the furnace, pressure rise rate
- Power Data: Power output power, current, voltage, and power factor
- Atmosphere Data: Gas flow rate and total consumption
- Status Data: Operating stage, alarm information, and operation records
Engineering interpretation for overseas buyers
When historical data needs to be retrieved, simply enter the furnace number or date range, and the system will retrieve the complete process curves in
. Temperature curves, pressure changes, and power output for any historical furnace are clearly displayed. Combined with the curve overlay and comparison function, the cause of quality problems can be quickly located.
Value: Complete data records are like the "black box" on an airplane-you don't usually notice its presence, but when a problem occurs, it's the sole basis for identifying the cause, clarifying responsibility, formulating improvement measures, and even remotely diagnosing faults, not just the operator's mobile phone photos and records at the operation site.
For an English industrial furnace website, this topic should be presented in a way that helps the reader make a specification decision. That means connecting the furnace feature with material behavior, production rhythm, utility conditions, acceptance testing, and long-term maintenance.
Specification and acceptance checklist
- Emergency design should cover power loss, cooling failure, gas interruption, overtemperature, and unsafe pressure.
- UPS, backup gas, safe sealing, and emergency cooling logic should be tested during commissioning.
- Alarm records should tell the operator what happened and what response is required.
- Digital interfaces should provide useful production data, not just a remote screen view.
- Temperature curves, power data, pressure trends, alarms, and operator actions are valuable for quality traceability.
- MES or SCADA integration should be defined by data points, communication protocol, permissions, and reporting needs.
- Temperature measurement at graphitization temperatures requires a practical combination of sensor selection, calibration, and indirect verification.
- Thermocouples, infrared systems, and ceramic rings each have different suitable ranges and limitations.
Questions to confirm before ordering
- What material will be treated, and what quality indicators must be reached after graphitization?
- What temperature curve, holding time, atmosphere, vacuum level, cooling method, and loading density are required?
- Which data will be recorded for each batch, and which acceptance tests will prove stable performance?
- Which spare parts, consumables, alarms, and maintenance checks are needed for long-term operation?
Engineering takeaway
A graphitization furnace should be specified as a complete high-temperature process system. When the buyer defines the material, process window, utilities, safety logic, and acceptance method clearly, the furnace is easier to operate, easier to troubleshoot, and more reliable in repeated production.
