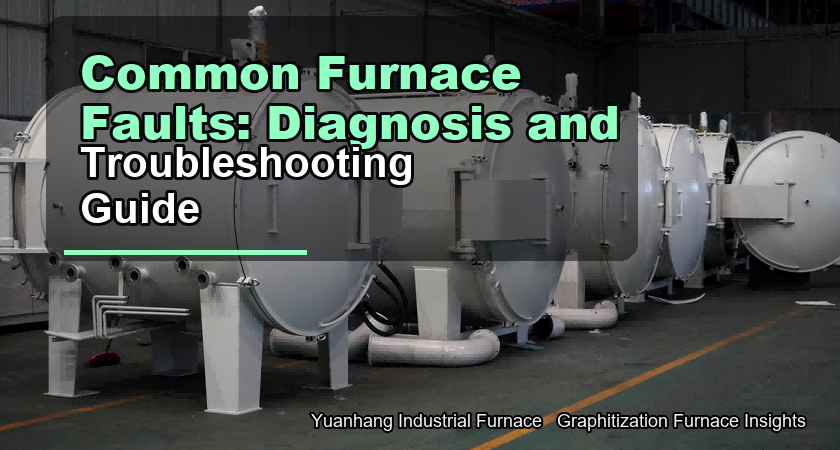

Common Graphitization Furnace Faults and Troubleshooting
Graphitization furnaces have complex structures and operate under harsh conditions, inevitably encountering various problems during long-term use. The most recommended method is to directly scan the QR code on the touchscreen of our graphitization furnace with your mobile phone and follow the fault and maintenance instructions step by step to check. Below are the diagnostic approaches and troubleshooting methods for common faults.
Phenomenon Possible Causes Troubleshooting Methods
Temperature Cannot Rise Insufficient Power Supply/Sensor Drift/Insulation Layer Aging Check power output/calibrate sensor/check insulation layer
Large temperature fluctuations Inappropriate PID parameters/power grid fluctuations/loose sensor Re-tune PID/Check power grid/Tighten sensor
What the source article emphasizes
The Chinese source focuses on practical furnace selection and operation, not on a simple word-for-word product description. The important point is to understand how each specification affects real batch quality, operating cost, maintenance, and safety.
- Common Fault Diagnosis and Troubleshooting Guide for Graphitization Furnaces
- Temperature Abnormality
- Vacuum Abnormality
- Power supply failure
Key technical points
- Compare IGBT and SCR power systems by power factor, harmonic impact, cabinet size, control precision, and lifetime cost.
- If SCR is selected, evaluate whether APF harmonic filtering and extra electrical room space are required.
- Power quality is not only an electricity issue; it can affect instruments, sensors, and production stability.
- Use vacuum mainly for degassing, impurity removal, and low-temperature process stages.
- At very high temperatures, slight positive argon pressure can suppress graphite sublimation and prevent oxidation.
- The furnace control logic should make atmosphere switching repeatable rather than depending on operator memory.
- Leak checking before heating is essential when processing high-value graphite or carbon materials.
- Water-cooled flanges and suitable O-rings help keep sealing parts below their thermal aging limit.
Engineering interpretation for overseas buyers
Local overheating Uneven temperature field/improper material placement/damaged heating element Temperature field measurement by temperature measuring ring/adjust loading/check heating element
Vacuum Cannot Be Evacuated Seal Leakage/Pump Oil Contamination/Pipeline Blockage Pressure rise rate test, leak detection/pump oil change/pipeline cleaning
Unstable vacuum Large material venting/valve leakage/vacuum gauge malfunction Inspect materials/leak detection/vacuum gauge calibration
Power Trip Overcurrent/Overvoltage/IGBT Failure/Insufficient Water Cooling Check Alarm Records/Measure IGBT/Check Water Flow
For an English industrial furnace website, this topic should be presented in a way that helps the reader make a specification decision. That means connecting the furnace feature with material behavior, production rhythm, utility conditions, acceptance testing, and long-term maintenance.
Specification and acceptance checklist
- Compare IGBT and SCR power systems by power factor, harmonic impact, cabinet size, control precision, and lifetime cost.
- If SCR is selected, evaluate whether APF harmonic filtering and extra electrical room space are required.
- Power quality is not only an electricity issue; it can affect instruments, sensors, and production stability.
- Use vacuum mainly for degassing, impurity removal, and low-temperature process stages.
- At very high temperatures, slight positive argon pressure can suppress graphite sublimation and prevent oxidation.
- The furnace control logic should make atmosphere switching repeatable rather than depending on operator memory.
- Leak checking before heating is essential when processing high-value graphite or carbon materials.
- Water-cooled flanges and suitable O-rings help keep sealing parts below their thermal aging limit.
Questions to confirm before ordering
- What material will be treated, and what quality indicators must be reached after graphitization?
- What temperature curve, holding time, atmosphere, vacuum level, cooling method, and loading density are required?
- Which data will be recorded for each batch, and which acceptance tests will prove stable performance?
- Which spare parts, consumables, alarms, and maintenance checks are needed for long-term operation?
Engineering takeaway
A graphitization furnace should be specified as a complete high-temperature process system. When the buyer defines the material, process window, utilities, safety logic, and acceptance method clearly, the furnace is easier to operate, easier to troubleshoot, and more reliable in repeated production.
