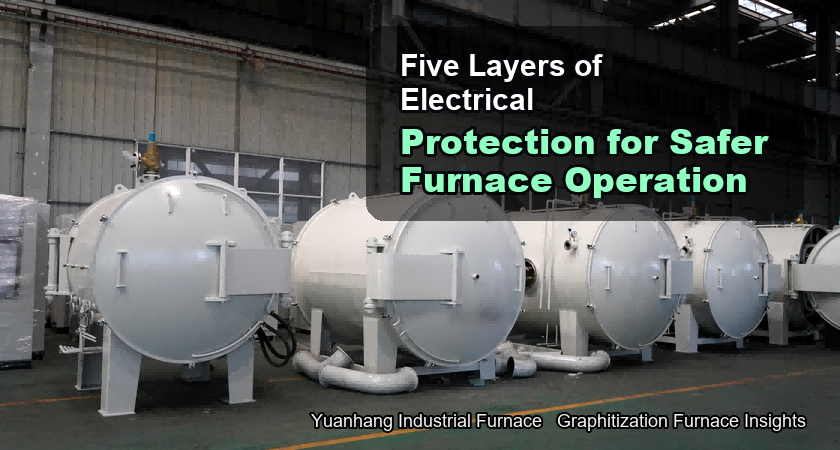

Five Electrical Protection Layers for Graphitization Furnaces
Having worked with graphitization furnaces for over ten years, my biggest fear isn't the furnace temperature not reaching its target, but rather electrical problems. Electricity is invisible and intangible, but once a problem occurs, it's a matter of real money being wasted-IGBT modules, capacitor banks, induction coils, each worth tens or hundreds of thousands of dollars. Even more critically, electrical accidents are often sudden.
Overcurrent protection Interruption when current surges Overvoltage/Undervoltage Grid Fluctuation Protection Voltage Monitoring Relay
Phase Loss Protection Three-Phase Power Integrity Phase Loss Detection Circuit
Three-Phase Power Integrity Phase Loss Detection Circuit
What the source article emphasizes
The Chinese source focuses on practical furnace selection and operation, not on a simple word-for-word product description. The important point is to understand how each specification affects real batch quality, operating cost, maintenance, and safety.
- Fivefold Electrical Protection: The Guardian of Electrical Safety for Graphitization Furnaces
- Five-fold protection function
- Grounding System
Key technical points
- Induction heating is usually more suitable for long-term graphitization above about 2500 °C.
- Resistance heating can be simpler at lower temperatures, but electrode loss and hot-zone life must be considered.
- Compare heating method by process temperature, batch size, uniformity, maintenance, and total operating cost.
- Compare IGBT and SCR power systems by power factor, harmonic impact, cabinet size, control precision, and lifetime cost.
- If SCR is selected, evaluate whether APF harmonic filtering and extra electrical room space are required.
- Power quality is not only an electricity issue; it can affect instruments, sensors, and production stability.
- Confirm the process temperature, holding time, atmosphere, loading volume, and product quality indicators before comparing suppliers.
- Ask which indicators will be tested at the factory, which will be tested on site, and which need production verification.
Engineering interpretation for overseas buyers
Leakage Protection Prevention of Electric Shock Accidents Leakage Protection Module
Short Circuit Protection Extreme Short Circuit Interruption Fast Circuit Breaker
Equipped with a dedicated grounding terminal, it is firmly connected to the factory grounding grid through a grounding wire of sufficient cross-sectional area. All metal casings, control cabinets, and operating consoles are all connected. First, fault current can be safely discharged to the ground; second, it provides a stable zero-potential reference for the electrical system, reducing electromagnetic interference.
Medium-frequency induction heating generates a strong alternating electromagnetic field. The all-metal double-layer water-cooled furnace shell itself is a highly efficient Faraday cage, shielding and confining the electromagnetic field inside the furnace chamber, with virtually no leakage. The circuit boards inside the control cabinet are also specially shielded, with power lines and signal lines routed separately, and critical signal lines receiving additional shielding.
For an English industrial furnace website, this topic should be presented in a way that helps the reader make a specification decision. That means connecting the furnace feature with material behavior, production rhythm, utility conditions, acceptance testing, and long-term maintenance.
Specification and acceptance checklist
- Induction heating is usually more suitable for long-term graphitization above about 2500 °C.
- Resistance heating can be simpler at lower temperatures, but electrode loss and hot-zone life must be considered.
- Compare heating method by process temperature, batch size, uniformity, maintenance, and total operating cost.
- Compare IGBT and SCR power systems by power factor, harmonic impact, cabinet size, control precision, and lifetime cost.
- If SCR is selected, evaluate whether APF harmonic filtering and extra electrical room space are required.
- Power quality is not only an electricity issue; it can affect instruments, sensors, and production stability.
- Confirm the process temperature, holding time, atmosphere, loading volume, and product quality indicators before comparing suppliers.
- Ask which indicators will be tested at the factory, which will be tested on site, and which need production verification.
Questions to confirm before ordering
- What material will be treated, and what quality indicators must be reached after graphitization?
- What temperature curve, holding time, atmosphere, vacuum level, cooling method, and loading density are required?
- Which data will be recorded for each batch, and which acceptance tests will prove stable performance?
- Which spare parts, consumables, alarms, and maintenance checks are needed for long-term operation?
Engineering takeaway
A graphitization furnace should be specified as a complete high-temperature process system. When the buyer defines the material, process window, utilities, safety logic, and acceptance method clearly, the furnace is easier to operate, easier to troubleshoot, and more reliable in repeated production.
