Continuous Carbonization Furnace for Carbon Fiber

Production Mode: Fully automatic Roll-to-Roll continuous operation, supporting 24/7 uninterrupted production, meeting industrial-scale requirements with an annual output of over one thousand tons. Core Temperature Range: Covers temperatures from 600°C to 1900°C (carbonization section) and up to 2800°C (graphitization section). Multiple temperature zones with independent closed-loop temperature control ensure high consistency of fiber properties. Technical Highlights: Utilizes high-precision closed-loop tension control with linkage, equipped with a labyrinth-type oxygen-excluding sealing device and the latest IGBT silent power supply, achieving high yield and damage-free continuous processing of thin fabrics or tows.

Product details

Overview

Yuanhang Continuous Carbonization Furnace for Carbon Fiber is a large-scale production line developed for polyacrylonitrile (PAN)-based, pitch-based, viscose-based fibers, and fuel cell carbon paper. By precisely controlling the fiber travel speed and temperature field gradient, this production line facilitates the chemical transformation of materials under a controlled atmosphere. The equipment integrates an advanced adaptive tension system, solving the industry challenges of easy breakage and wrinkling of flexible materials during continuous processing. It is a core piece of equipment for achieving domestic substitution in high-end carbon material production.

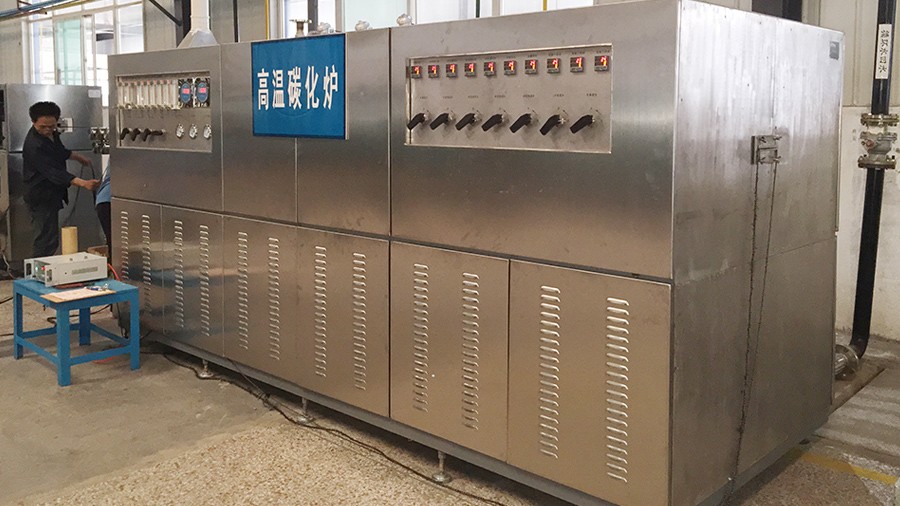

Image: Yuanhang Industrial Furnace - Roll-to-Roll Continuous Carbon Fiber Heat Treatment Production Line

Technical Specs

Process Module	Typical Operating Temperature (℃)	Heating Element	Typical Opening Size (mm)	Number of Control Zones
Low-Temperature Tar Removal Section	850	High-Temperature Resistance Wire	H150 × W800 × L4000	2 Zones
Medium-Temperature Carbonization Section	1650	Silicon Carbide Rods / High-Purity Graphite	□1300 × 120（Height Adjustable）	3 Zones
High-Temperature Graphitization	2800 - 3000	High-Purity Graphite Heating Elements	Customized per process	Multiple Independent Zones

* Performance Specifications: Temperature control accuracy ±1°C, equipped with a labyrinth-type oxygen-excluding sealing device,

supporting 0.5Bar positive pressure atmosphere protection.

Technical Highlights of Yuanhang Continuous Carbonization Furnace

Full-Process Gradient Temperature Control: Supports setting up to 400 segments of process curves, enabling precise staged temperature control from room temperature to 2800°C.
High-Precision Tension Control: Integrated closed-loop drive system ensures stable stress distribution for flexible carbon paper during continuous operation, preventing wrinkles and damage.
Labyrinth Sealing Technology: Specialized gas seals and oxygen-excluding devices at the inlet and outlet achieve an ultra-low dew point of -70°C, ensuring an oxygen-free carbonization environment.
Digital Data Acquisition: Siemens PLC enables real-time monitoring of all water, electricity, and gas parameters, supporting process traceability and remote maintenance.
Environmentally Friendly & Energy-Saving Design: Utilizes internal circulating pure water cooling and the latest IGBT power supply, featuring a high power factor and significantly reducing energy consumption per ton of output.

Automated reel-in and wire feeding system

For fuel cell carbon paper and flexible fabrics, Yuanhang provides customized powered unwinding/rewinding solutions:
• Edge Control Function: Equipped with a highly sensitive edge control device, ensuring material alignment accuracy better than ±0.5mm.
• Seamless Integration: Works with dedicated transfer trolleys to achieve industrial synergy with upstream impregnation and downstream graphitization processes.
• Consumable Parts Maintenance: Modular design with key components featuring serial number identification, allowing quick replacement by general workers.

Yuanhang Industrial Furnace — Enabling Domestic Large-Scale Production of

High-Performance Carbon Fibers.

Request a complete layout drawing for the thousand-ton-scale carbon fiber production line now：15115399105
