High-Vacuum High-Temperature Carbonization Furnace

Equipment Core: Achieves high-temperature carbonization of materials in an extremely high-vacuum environment, altering the atomic structure and effectively isolating oxygen interference. Performance Specifications: Maximum design temperature of 2400°C, with a long-term operating temperature of 2200°C. The ultimate vacuum can reach 1×10?2 Pa, significantly reducing material ash content and improving purity. Structural Features: Utilizes a high-purity graphite heating element and multi-zone temperature control technology. Equipped with a hinged electric rotary furnace door and a dedicated loading trolley system, ensuring extremely convenient loading and unloading. Contact Hotline: 15115399105.

Product details

Overview

The High-Vacuum High-Temperature Carbonization Furnace is a material modification device designed by Yuanhang Industrial Furnace for high-end manufacturing industries. By subjecting materials to high-temperature heat treatment in a sealed vacuum environment, it precisely alters the atomic structure of the materials. As the process effectively isolates impurity gases such as oxygen, this equipment significantly reduces the ash content of materials, greatly enhancing their purity and structural orderliness, making it a critical step in achieving high material performance.

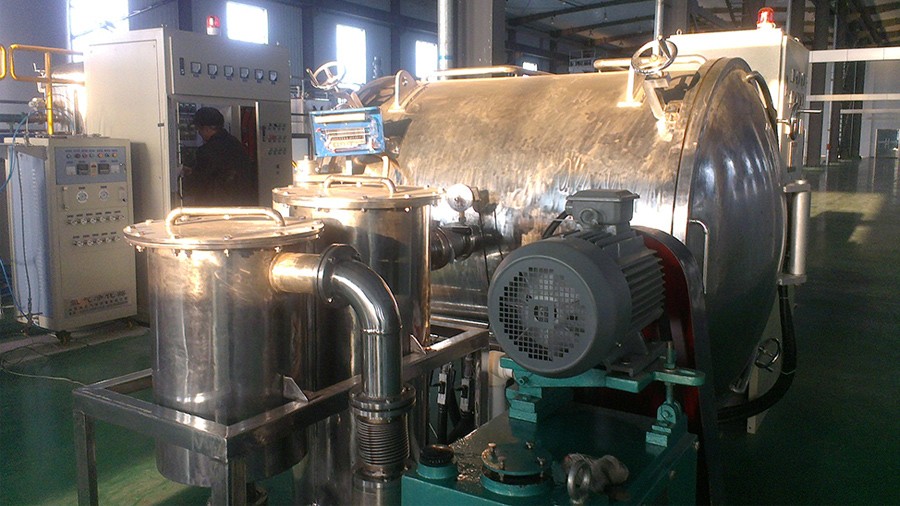

图：远航工业炉-高真空高温碳化处理系统

Technical Specs

Working Zone Dimensions (W×H×L mm)	400 × 400 × 1000		600 × 600 × 1500		700 × 700 × 2000
Ultimate Vacuum (Pa)	1X10?²	1X10?³	1X10?²	1X10?³	1X10?²	1X10?³
Max / Operating Temperature(℃)	2400 / 2200	2200	2400 / 2200	2200	2400 / 2200	2200
Temperature Uniformity (℃)	±7.5		±7.5		±10
Pressure Rise Rate (Pa/h)	0.67

Note: Custom non-standard dimensions are supported, and the high vacuum pump set configuration can be selected according to material characteristics.

Technical Features of Yuanhang High-Vacuum Carbonization Furnace

1.Ultra-High Temperature Capability: Maximum design temperature reaches 2400°C, meeting the carbonization requirements of top-tier carbon materials.
2.Large Charging Space: Optimized heating chamber layout provides ample charging space, and with a dedicated loading trolley, material loading and unloading are exceptionally smooth.
3.Graphite Heating System: Utilizes high-purity graphite heating elements with low-voltage, high-current multi-zone temperature control, ensuring high temperature field consistency.
4.Automated Furnace Door: Hinged electric rotary furnace door design offers excellent sealing while reducing labor intensity.
5.Comprehensive Protection: Fully automatic atmosphere/vacuum switching system supports operation under various inert gas protections.

Applications

• Aerospace: Precision carbonization treatment of carbon/carbon composites and pyrolytic carbon components.
• Semiconductor Industry: Modification and purification of high-purity graphite components and silicon carbide epitaxial substrates.
• Energy Storage Materials: High-temperature carbonization of high-end lithium battery anode materials and hard carbon materials.
• Specialty Fibers: High-temperature purification treatment of high-modulus carbon fibers and refractory fibers.
