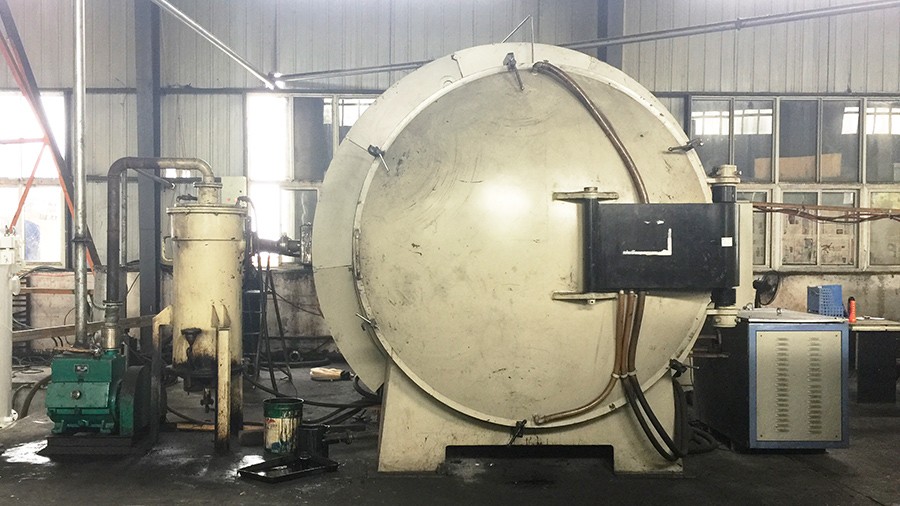

Carbon Felt / Insulation Felt Carbonization Furnace

Primarily used for medium and low-temperature carbonization processes of carbon/carbon composites, rigid insulation felt, solidified felt, carbon fiber insulation materials, graphite products, and also for carbonization of other materials.

Product details

Product parameter

Model ①	Charging Space Dimensions (mm)	Design Temperature (℃)	Rated Temperature (℃)	Heating Voltage (V)	Power (KW)	Ultimate Vacuum (Pa)	Pressure Rise Rate (Pa/h)	Temperature Uniformity (℃)	Load Capacity (KG)
	mm	℃	℃	V	KW	Pa	pa/h	℃	KG
YH-THW-R80-80/120	□800X800X1200	1650	1600	50	150	20		±10	800
YH-THW-R100-100/150	□1000X1000X1500	1650	1600	50	210	20		±10	1500
YH-THW-R130-130/200	□1300X1300X2000	1650	1600	50	300	20		±15	3000
YH-THW-R150-150/300	□1500X1500X3000	1650	1600	50	550	20		±15	5000
YH-THW-R150-150/300	□1500X1500X3000	1650	1600	50	550	20		±15	5000
YH-THW-R250-200/400	□2500X2500X4000	1650	1600	50	1200	20		±15	10000
YH-THW-R250-250/500	□2500X2500X5000	1650	1600	50	1500	20		±15	15000

1.Design Temperature: 1650℃
2.Long-Term Operating Temperature: 1600℃
3.Large charging space, convenient loading and unloading
4.Heating Method: High-purity graphite heating elements
5.Power: Multi-zone temperature control, voltage < 50V
6.Furnace Door Opening/Closing Method: Hinged electric rotary type
7.Loading/Unloading Method: Dedicated loading trolley type
8.Working Atmosphere: Vacuum or protective atmosphere
