Vertical High-Temperature Graphitization Furnace

Structural Advantage: The vertical furnace chamber structure provides more stable stress distribution for large-diameter graphite crucibles compared to horizontal furnaces, effectively preventing structural deformation under high temperatures. Core Performance: Maximum temperature of 3000°C (typical operating temperature 2900°C). Utilizes medium frequency induction heating, which does not come into direct contact with the material, minimizing external influences during the graphitization process. High Efficiency & Low Consumption: Ultimate heating rate of 200°C/min, combined with thickened alumina insulation material, significantly reduces power consumption per ton of output. The service life of consumable parts is 1.2 times longer than that of similar products.

Product details

产品简介 / Introduction

Yuanhang Vertical High-Temperature Graphitization Furnace is an ultra-high temperature heat treatment equipment designed specifically for the carbon material industry. It is widely used for the shaping and graphitization of high-thermal-conductivity graphite films (PI film), lithium battery anode materials, and carbon fiber filaments within the 3000°C range. This equipment adopts advanced medium frequency induction heating technology, which offers high energy conversion efficiency and does not require contact with the material, ensuring high purity and stability during the process.

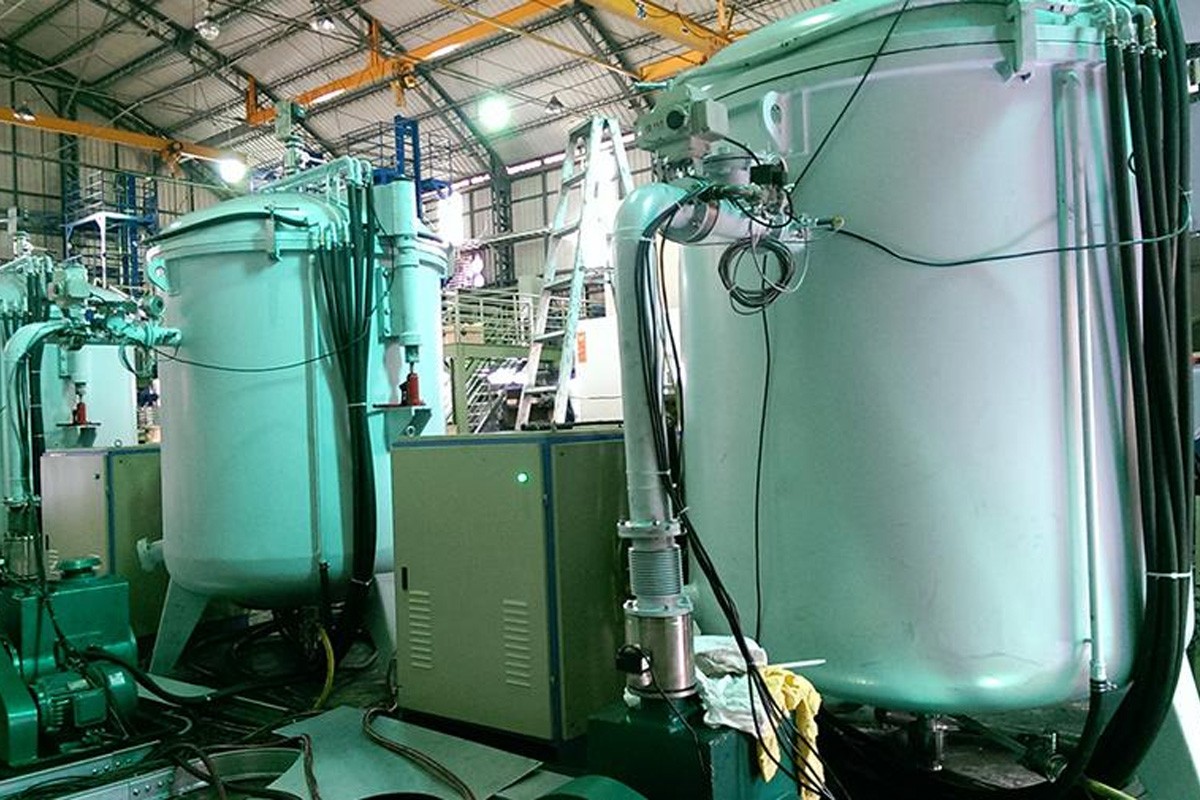

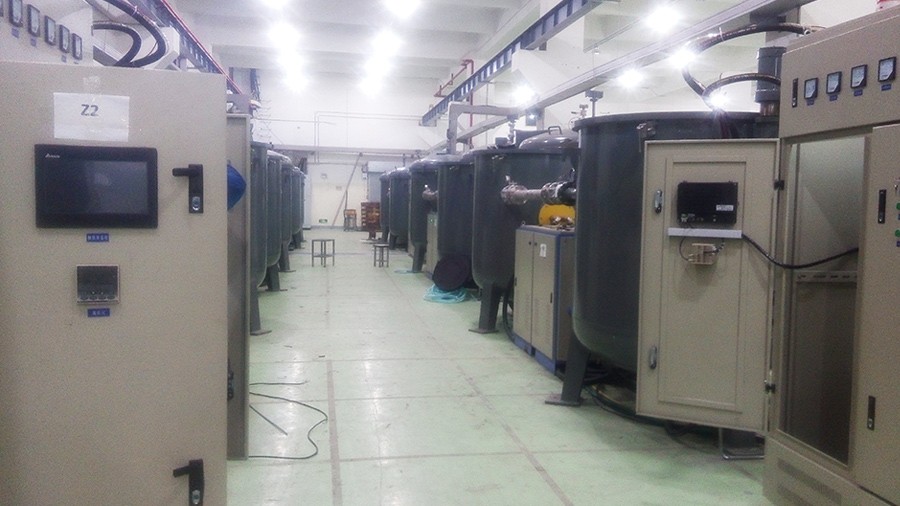

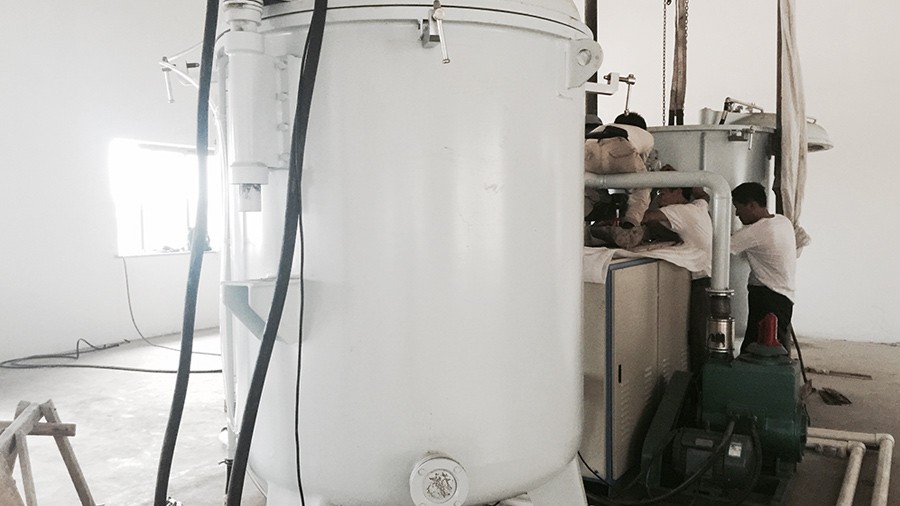

Image: Yuanhang Industrial Furnace - Vertical Ultra-High Temperature Graphitization On-Site Installation

Technical Specs

Model Specifications (HWL mm)	Medium Frequency Power (Kw)	Typical Operating Temperature (℃)	Ultimate Vacuum (Pa)	Temperature Difference (℃)
400 X 400 X 1000	130	2900-3000	1.2 * 10?¹	±10
600 X 600 X 1200	260	2900-3000	1.2 * 10?¹	±10
900 X 900 X 1600	500	2850	1.2 * 10?¹	±15

Note: Graphite crucibles of 700X700 and above specifications adopt a high-power spliced design. Pressure rise rate ≤ 0.67 Pa/h.

Technical Advantages of Yuanhang Vertical Graphitization Furnace

1.Precise Temperature Control: Utilizes both programmable and manual control modes, with temperature control accuracy of ±1°C. Combined with far-infrared optical pyrometry components, it offers a wide monitoring range and fast response.
2.Extreme Efficiency: Ultimate heating rate of 200°C/min, combined with a unique furnace chamber design, significantly improves temperature field uniformity.
3.Excellent Energy Consumption Performance: Utilizes thickened composite insulation material, providing good thermal insulation and fire resistance with minimal heat loss.
4.Long Service Life of Consumable Parts: The crucible bottom is padded with high-strength rigid composite felt, ensuring uniform stress distribution on the graphite crucible under high temperatures, extending its service life by 1.2 times.
5.Full Atmosphere Adaptability: Supports operation under high vacuum or Ar/N? protective atmosphere (with slight positive pressure control).

Applications

• Energy Storage Materials: Ultra-high temperature purification of lithium battery anode carbon powder, artificial graphite, and natural graphite.
• Thermal Conductivity & Heat Dissipation: Graphitization of various high-thermal-conductivity graphite sheets, PI films, and composite graphite films.
• Carbon Fiber: Shaping and graphitization of carbon fiber filaments and modification of high-performance carbon fibers.
• Specialty Manufacturing: Other ultra-high temperature sintering processes that can be carried out in carbon/reducing atmosphere environments.
