Reactive Melt Infiltration (RMI) Furnace for Carbon-Ceramic Comp

Name: Reactive Melt Infiltration (RMI) Furnace for Carbon-Ceramic Comp
Brand: YuanHang

Core Process: Utilizes Reactive Melt Infiltration (RMI) technology, where capillary forces drive the molten material to infiltrate porous preforms and undergo in-situ reactions, achieving rapid densification. Efficiency Advantage: Compared to CVI and PIP processes, RMI offers higher efficiency, producing near-fully dense carbon-ceramic composites in a single infiltration step, significantly reducing production costs. Precise Temperature Control: Maximum operating temperature reaches 2300°C, featuring AI self-learning PID technology that eliminates temperature rise lag in low-temperature ranges, ensuring exceptional temperature control accuracy.

Product details

Introduction

During the preparation process of carbon-ceramic materials, RMI (Reactive Melt Infiltration) involves heating the hot zone to above 2000°C, where precursor molecules (such as silicon) are driven by capillary forces to infiltrate the porous carbon preform and undergo chemical reactions to form a new matrix. This process, characterized by its high efficiency and low cost, has become a key technology for advancing the large-scale application of carbon-ceramic composites.

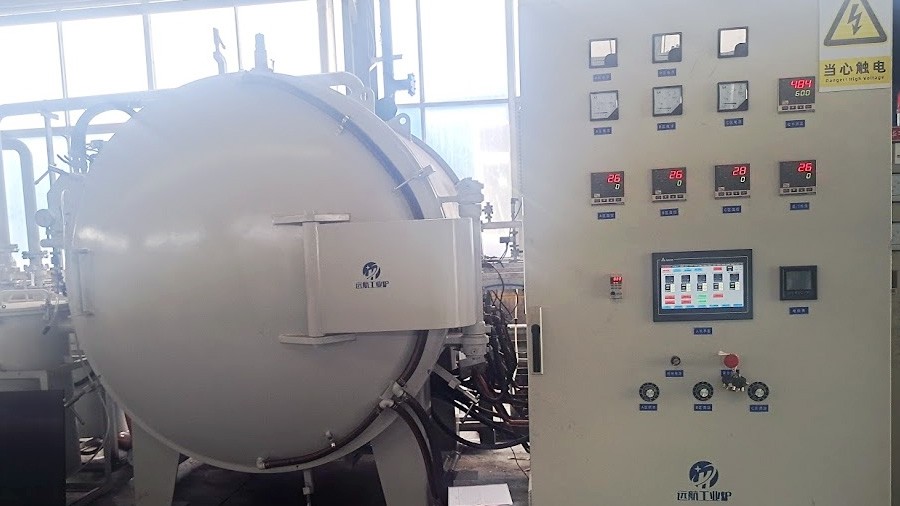

Image: Yuanhang Industrial Furnace - RMI (Reactive Melt Infiltration) Sintering System for Carbon-Ceramic Composites

Specs

Design Temperature	2100℃(up to 2300°C optional)
Heating Method	Isostatic Graphite Resistance Heating (Low-Voltage, High-Current Mode)
Temperature Control Accuracy	≤ ±2°C across entire temperature range (PID + AI curve fitting technology)
Working Atmosphere	Vacuum, Ar/N? protective atmosphere, reducing atmosphere (slight positive pressure)
Vacuum System	2H-70Sliding Vane Pump, Pressure Rise Rate ≤ 10Pa/h
Control System	Siemens PLC + Delta 15-inch Touch Screen + Paperless Recorder

Smart Control

To address the common challenge of temperature rise lag in the low-temperature section of industrial furnaces, Yuanhang Industrial Furnace employs multi-stage AI self-learning PID and temperature control curve fitting technologies. Through algorithmic compensation, it achieves highly consistent temperature control accuracy across the entire range from room temperature to 2000°C.

图：远航特有PID自学习曲线拟合效果

Features

1. High Automation: All operating parameters are digitally stored, supporting USB flash drive export and remote communication interfaces.

2. High Safety: Equipped with a bursting disc (activates at 0.07Mpa), multiple audible and visual alarms, and PLC logic interlock protection.

3. Versatile Atmosphere Design: Meets the requirements of vacuum sintering, pressure infiltration, and various reducing atmosphere processes.

4. Precision Measurement: Utilizes multi-zone tungsten-rhenium thermocouples combined with far-infrared optical pyrometry, ensuring no blind spots in temperature field monitoring.

Yuanhang Industrial Furnace — Enabling Efficient, Low-Cost Large-Scale Production of Carbon-Ceramic Composites.

Request Custom Solutions & Pricing：15115399105

Click to download detailed information:

-rmi-sintering-furnace-for-carbon-ceramic-composites.pdf
