Introduction

The carbon-ceramic PIP sintering furnace developed by Yuanhang Industrial Furnace is a new type of ultra-high temperature equipment, primarily used for the sintering and preparation of carbon-ceramic composites and carbon/carbon composites.

PIP Method (Polymer Infiltration and Pyrolysis): An organic polymer precursor is dissolved or melted, then impregnated into the fiber preform under vacuum or pressure. After drying and solidification, high-temperature sintering pyrolysis is performed. This process offers significant advantages, including relatively low preparation temperatures, the ability to form complex large-scale components, and excellent material properties.

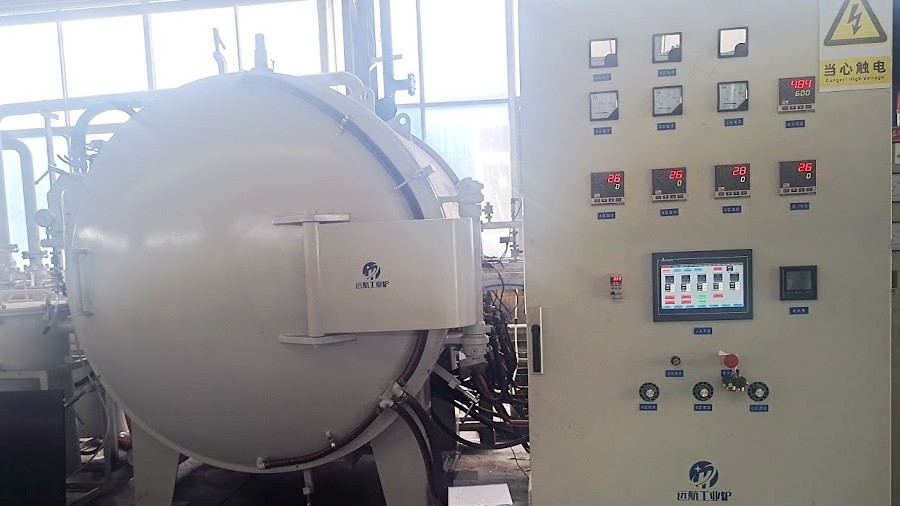

Image: Yuanhang Industrial Furnace - Specialized PIP Sintering Furnace for Carbon-Ceramic/Carbon-Carbon Brake Discs

Technical Highlights of Yuanhang PIP Sintering Furnace

• ?? Extreme Durability: Maximum operating temperature reaches 2300°C (typically 2250°C), meeting diverse ceramization matrix conversion requirements.
  ??? Precise Temperature Control: Combines thermocouple and far-infrared optical pyrometry with intelligent PID adjustment, achieving temperature control accuracy of ±0.1°C.
  ?? Full Atmosphere Coverage: Supports sintering in vacuum, air atmosphere, or reducing atmosphere (slight positive pressure), offering wide applicability.
  ?? Data Visualization: Siemens PLC + 15-inch Delta touch screen enables real-time querying of key parameters (temperature, vacuum level, power) with USB data export capability.
  ??? Safety Redundancy: Equipped with bursting disc (activates at 0.07Mpa), audible and visual alarms, and PLC logic interlock protection, ensuring safe operation at high temperatures.

Supporting Equipment and Process Flow for Carbon-Ceramic Fabrication

Yuanhang provides complete process chain heating solutions for carbon-ceramic preparation, accommodating various technological routes:
