Product Overview

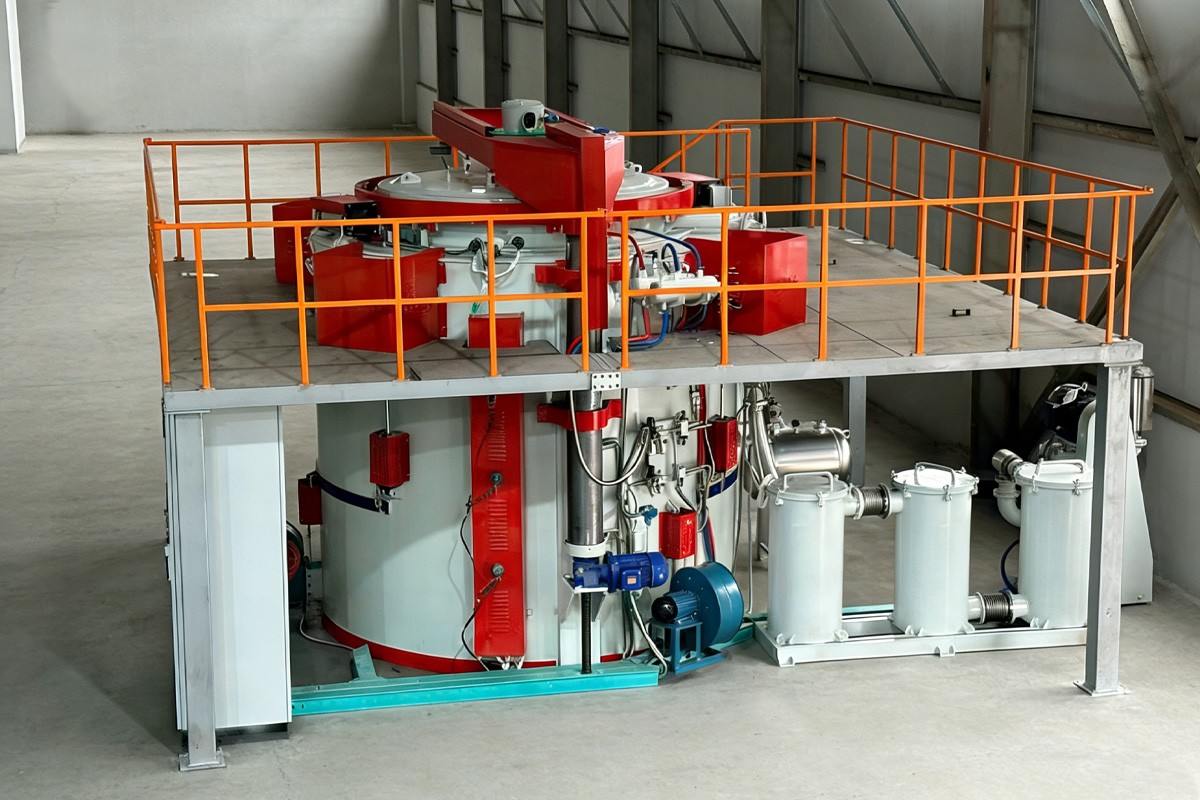

This series of DT4C degassing furnaces is engineered for soft magnetic materials and vacuum devices requiring extreme purity. Equipped with multi-level safety interlocked hydrogen control and multi-stage vacuum systems, it removes residual gases and impurities through hydrogen reduction and high-temperature degassing at up to 950°C. This enhances magnetic induction and ensures low outgassing rates during vacuum encapsulation.

Key Advantages

• Safety Hydrogen Control: Features auto-ignition, N2 explosion-proof purging, and real-time pressure monitoring for secure H2 processing.
• Ultra-Clean Environment: Utilizes imported 310S heat-resistant stainless steel tanks with a leak rate of ≤ 2 Pa/h, ensuring treatment free of dust, oil, and volatiles.
• Magnetic Performance Boost: Optimized cooling rate control matches the specific enhancement curves for DT4C, significantly reducing hysteresis loss.
• High-End Configuration: Equipped with Swedish Kanthal heating elements and segmented PID control for superior thermal uniformity.

Technical Specifications

Click to download detailed information:

-degassing-furnace-for-electromagnetic-pure-iron-dt4c.pdf
