High-Temperature Graphitization Furnace for Lithium Battery Anod

Core Value: Specifically designed for high-temperature purification of lithium battery anode materials (artificial/natural graphite). By modifying the turbostratic structure of the material, it significantly improves the specific capacity and stability of the battery. Mass Production Advantage: Adopts a “one-to-many” production mode (one power supply controlling 3–6 furnace bodies), achieving seamless integration between heating and natural cooling cycles, greatly enhancing equipment turnover rate. Technical Assurance: Equipped with an automatic gas inlet/outlet balancing system and a PID-controlled vacuum device with slow opening/closing functions, effectively addressing process challenges such as the light specific gravity, tendency to spatter, and volume expansion of carbon powder. Contact Hotline: 15115399105.

Product details

Overview

As the endurance requirements for terminal digital devices and new energy vehicles continue to rise, improving the performance of lithium battery anode materials has become crucial. High-temperature graphitization is the core method for modifying the turbostratic structure of artificial and natural graphite, thereby increasing battery specific capacity. The anode material-specific graphitization equipment developed by Yuanhang Industrial Furnace has been deeply customized to address the physical characteristics of carbon powder materials, such as high heat capacity and low specific gravity, making it an ideal mass production solution for current anode manufacturers.

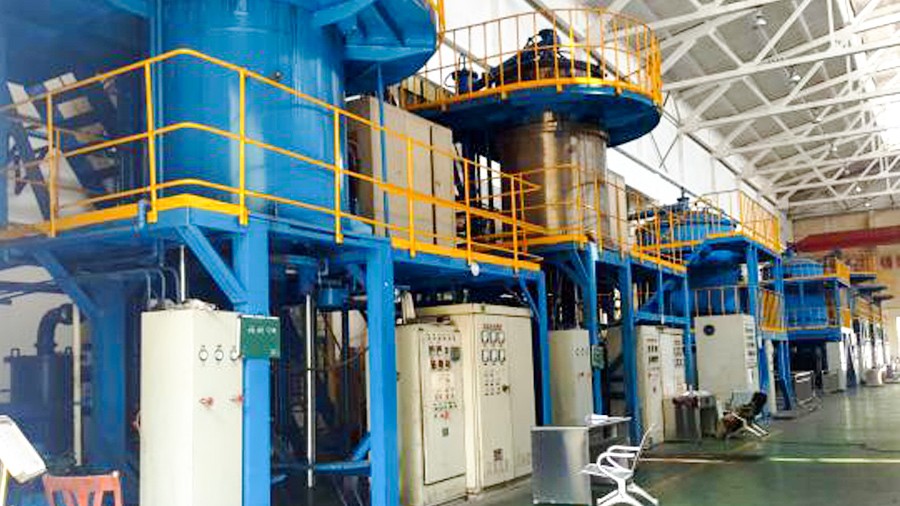

Image: Yuanhang Industrial Furnace - Ultra-High Temperature Graphitization Production System for Anode Materials

Technical Specs

Model Specifications (HWL mm)	Medium Frequency Power (Kw)	Maximum Temperature (℃)	Ultimate Vacuum (Pa)	Temperature Difference in Constant Temperature Zone (℃)
400 X 400 X 1000	130	3000	1.2 * 10?¹	±10
600 X 600 X 1200	260	2900	1.2 * 10?¹	±10
900 X 900 X 1600	500	2850	1.2 * 10?¹	±15

Note: Graphite crucibles of 700x700 and above specifications adopt a high-power spliced design. Pressure rise rate ≤ 0.67 Pa/h.

Technical Advantages of Yuanhang Anode Material-Specific Furnace

One-to-Many Production Mode: One power supply is configured with multiple furnace bodies operating in rotation, maximizing production efficiency.
Anti-Spatter Slow-Closing Technology: Vacuum pipelines and valves utilize PID-controlled slow opening/closing functions to prevent clogging caused by spattering of ultra-light carbon powder.
Automatic Balancing System: Real-time monitoring of pressure fluctuations caused by thermal expansion of anode materials and impurity volatilization, with automatic adjustment of gas inlet and outlet.
High-Purity Atmosphere Protection: Compatible with high-performance gas purifiers, achieving oxygen content < 1PPM and a dew point of -65℃.
Remote Intelligent Management: Industrial PLC + multifunctional remote control console with a distance of up to 150 meters, enabling fully digitalized storage of production data.

Applications

• Natural Graphite: High-temperature purification and structural reorganization of spheronized natural graphite.
• Artificial Graphite: High-temperature graphitization heat treatment of needle coke and other raw materials after carbonization.
• New Carbon Materials: High-temperature modification of silicon-carbon anode substrates and hard carbon materials.
• Powder Processing: Heat treatment of various fine-particle carbon powders with extremely high requirements for ash content and purity.
