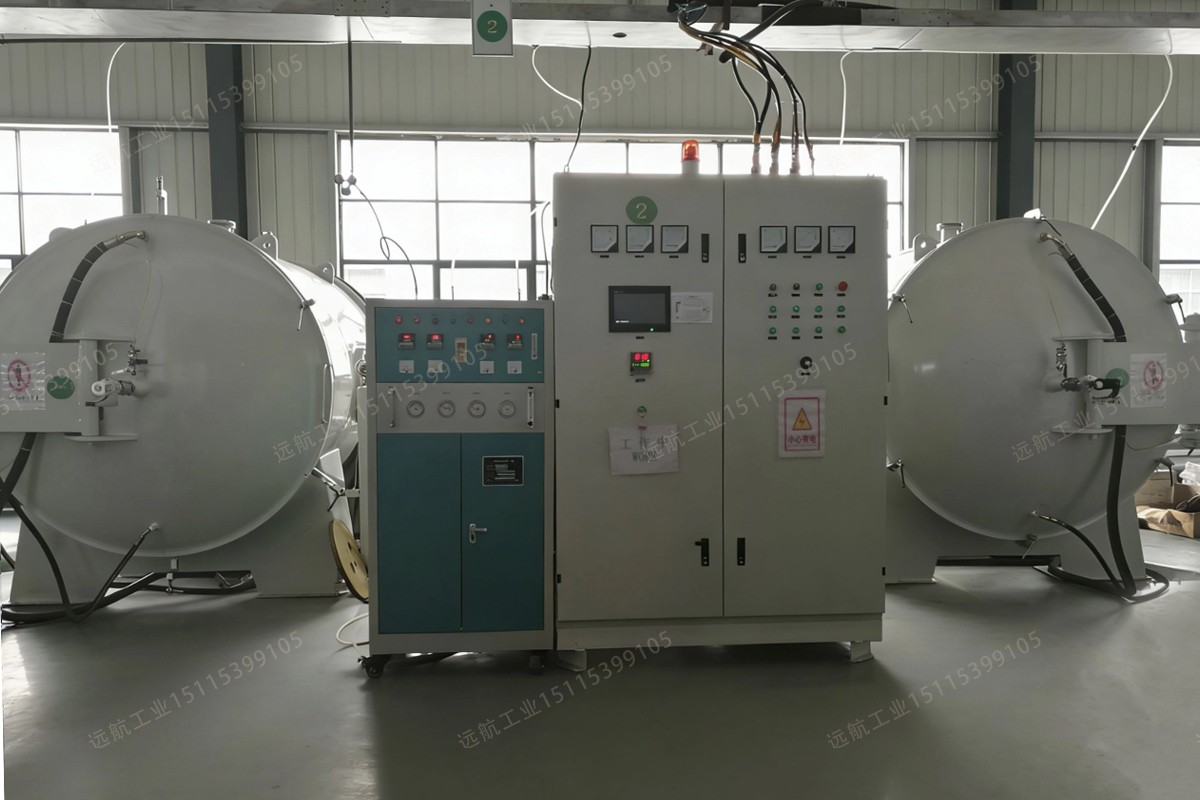

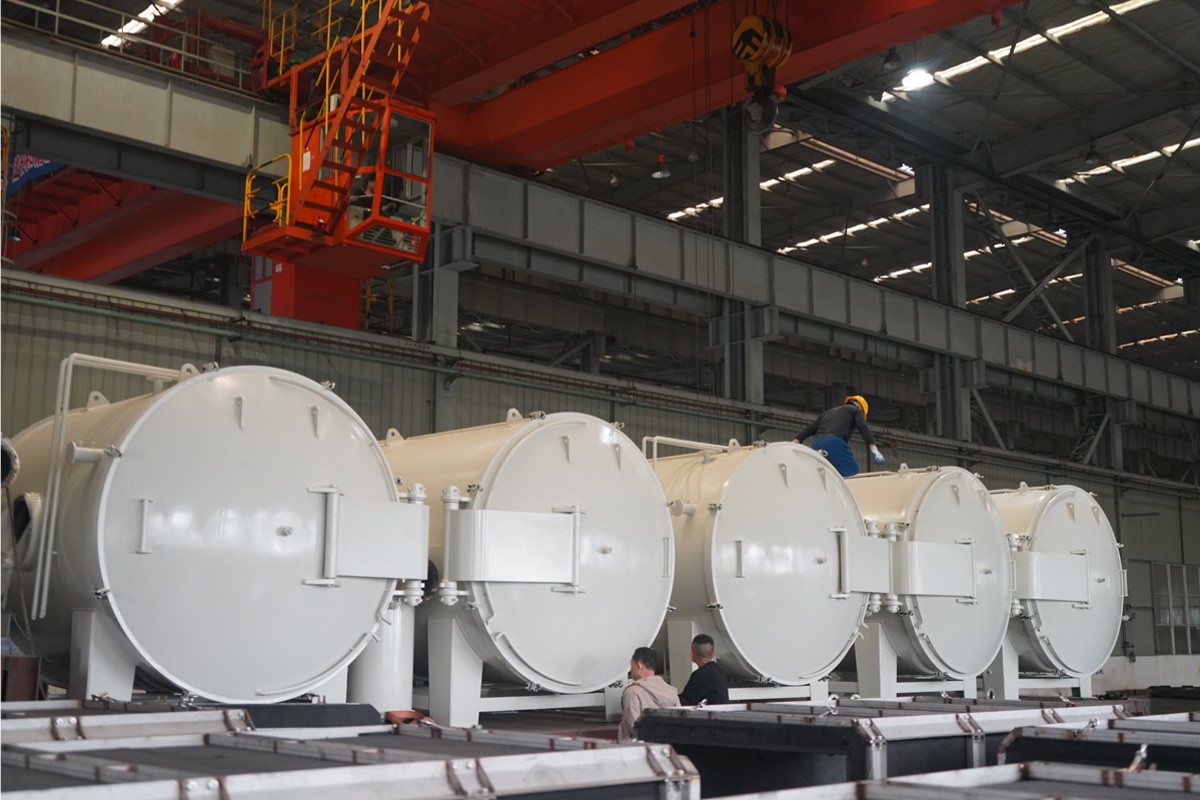

High-Temperature Purification Furnace for High Carbon Powder and

Product Introduction

High-temperature graphitization purification is a critical process for enhancing the purity of special graphite, high-carbon powder, and carbon felt materials. Yuanhang Industrial Furnace achieves carbon content levels exceeding 99.9995% and total impurity content below 5ppm through ultra-high temperature processes above 3000°C.




 Parameters

Comparison Item Graphite Resistance Heating Furnace IGBT Medium Frequency Induction Heating Furnace
Maximum Operating Temperature 2600℃ 3000℃ - 3050℃
Purity Performance (C) 99.9% - 99.99% ≥ 99.9995% ( <5ppm)
Boron Removal Efficiency (B) Conventional impurity removal < 0.01ppm (fluorine-free & chlorine-free process)
Discharge Method Horizontal side discharge
Horizontal side discharge / Vertical top discharge


Intelligent Control & Applications

The furnaces are equipped with advanced IGBT medium frequency

 power supplies and automated control systems, featuring:

  • • Semiconductor Industry:
  • High-temperature purification of graphite crucibles,
  • graphite shields, and heating elements.
  • • New Energy:
  • Purification of anode materials for lithium-ion and
  • lead-acid batteries.
  • • Solar Energy:
  • Purification of silicon ingot support components and
  • polysilicon furnace chambers.
  • • Others:
  • Purification of carbon nanotubes, graphene, and
  • high-performance insulation materials.
高温纯化炉IGBT中频电源柜

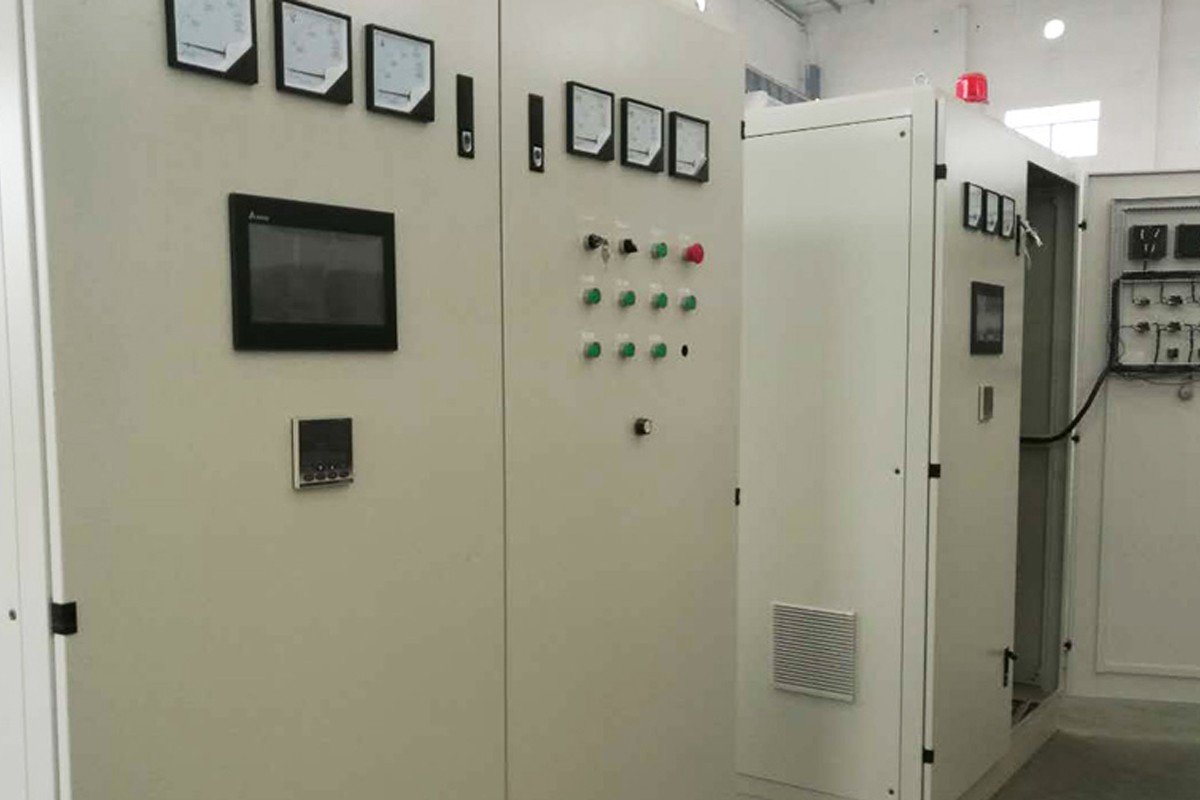

Image: High-Performance IGBT Medium Frequency Induction Power Supply System

Note: Yuanhang Industrial Furnaces offer a variety of non-standard customised specifications (500X500mm to 1000X1000mm and above). Please feel free to inquire about specific parameters and sample services.

Click to download detailed information:

-high-temperature-purification-furnace-for-high-carbon-powder-and-high-purity-graphite.pdf


I want to customize:High-Temperature Purification Furnace for High Carbon Powder and

  • *Contact person:
  • Company name:
  • *Email:
  • Purchase intention:
  • *Verification code: Verification Code
  • By submitting this form, you agree to our Privacy Policy.

Related ProductsRelated Products

Graphene Graphitization Furnace

Graphene Graphitization Furnace

This high-temperature graphitization furnace is a new type of furnace developed from the original me...

Learn More
Polymer Infiltration and Pyrolysis (PIP) Furnace for Carbon-Cera

Polymer Infiltration and Pyrolysis (PIP) Furnace for Carbon-Cera

Core Process: Utilizing the PIP (Polymer Infiltration and Pyrolysis) method, densification of carbon...

Learn More

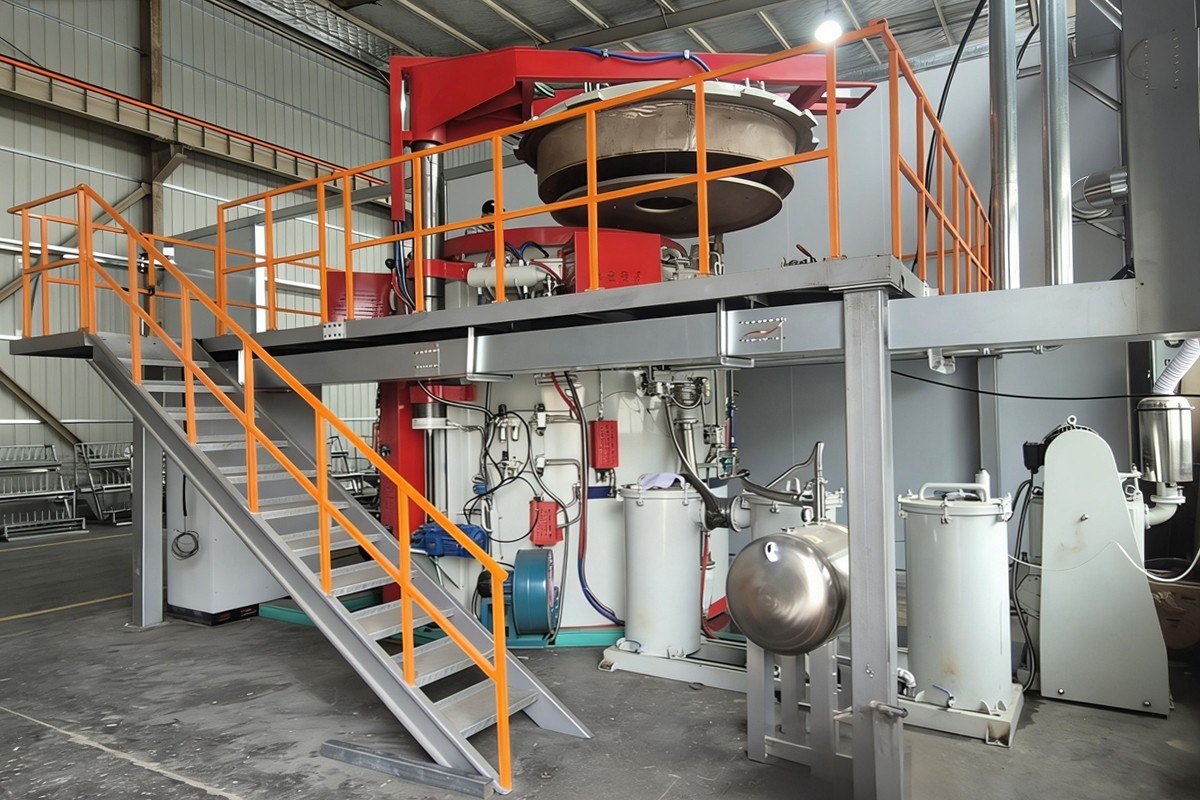

Bellows Heat Treatment Furnace
