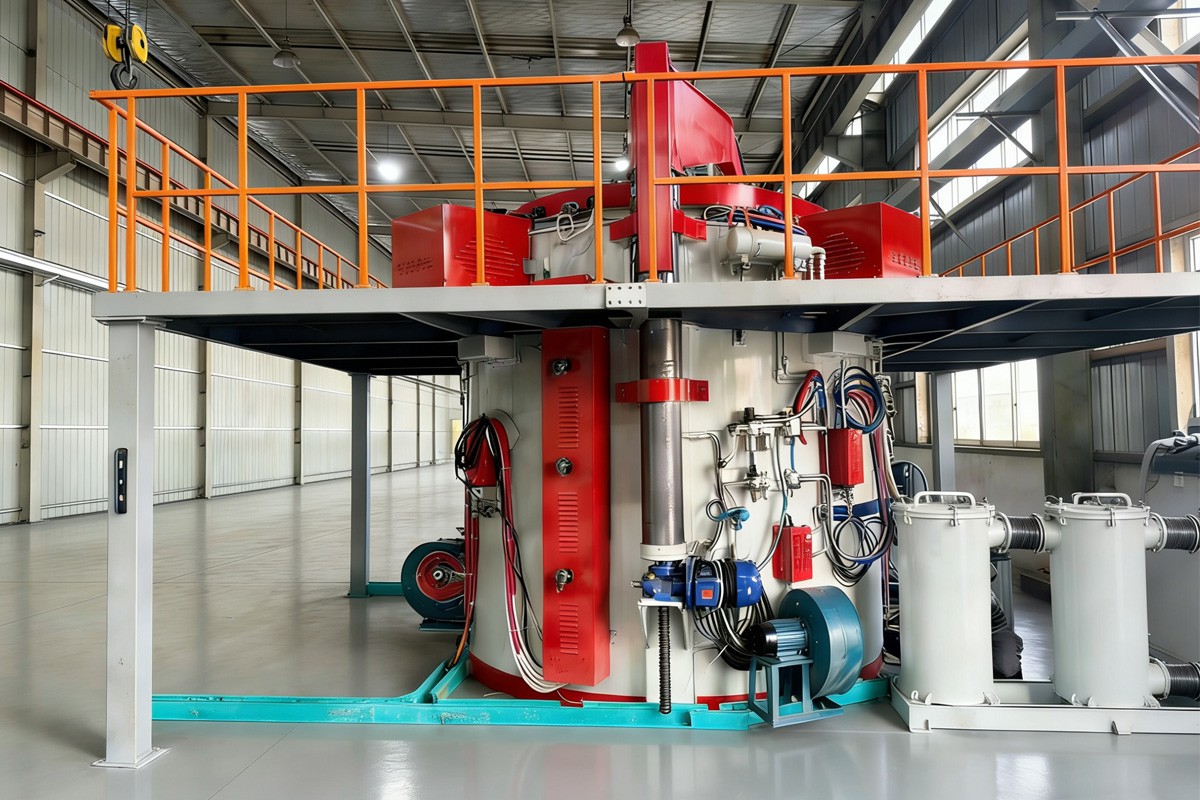

Titanium Alloy Stress Relief Furnace

A specialized stress relief solution for aerospace-grade titanium, superalloys, and 3D-printed precision parts. Utilizing high-vacuum or high-purity argon environments, it effectively eliminates residual stresses while strictly preventing O, N, and H embrittlement, ensuring complex components remain deformation-free and crack-free.

Product details

Product Overview

This series of titanium alloy stress relief vacuum furnaces is developed for fields requiring extreme material purity and mechanical properties. Operating up to 950°C, it precisely eliminates residual stresses from 3D printing, forging, or machining through deep vacuum degassing or high-purity inert gas protection. The system features comprehensive data monitoring, fully compliant with aerospace and medical quality traceability standards.

Key Advantages

Precision Deformation Control: Provides superior thermal uniformity (±3°C) for complex thin-walled and conformal structures, preventing thermal distortion during annealing.

Anti-Embrittlement Technology: Strict control over ultimate vacuum and leak rates prevents impurity atoms from infiltrating the titanium matrix, avoiding "Alpha Case" formation and ensuring fatigue strength.

Data Compliance & Traceability: Automatically exports temperature and vacuum reports. Supports full process backup to meet AS9100 or ISO 13485 audit requirements.

Aerospace/Medical Cleanliness: Oil-free and dust-free furnace design with high-efficiency cooling ensures bright, ultra-clean surface finishes.

Technical Specifications

Item	Specifications
Materials	Titanium (TC4, Gr5, etc.), Superalloys, Tool Steel
Ultimate Vacuum	10^-3 Pa to 10^-4 Pa (High Vacuum Grade)
Thermal Uniformity	±3°C to ±5°C (Multi-zone Control)
Data Logging	Full process traceability & export support
Cooling Method	Natural Cooling or Forced Air Cooling (Optional)
Cleanliness	Oil-free and volatile-free interior design
