Introduction

Polyimide (PI) film can be transformed into graphite sheets with extremely high thermal conductivity through ultra-high temperature carbonization and graphitization. The specialized PI graphitization equipment produced by Yuanhang Industrial Furnace is a cost-effective system developed to meet the needs of the thermal graphite sheet industry. It is not only suitable for processing PI films but also for ultra-high temperature graphitization modification of graphene thermal conductive films and other composite thermal conductive materials, and has received widespread acclaim from users in the industry.

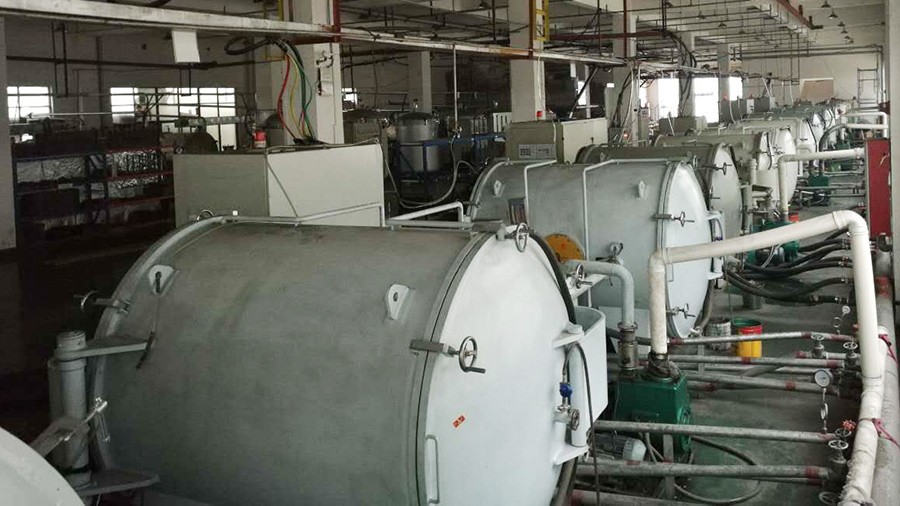

Image: Yuanhang Industrial Furnace - PI Graphitization Ultra-High Temperature Induction Heating System

Technical Specs

Technical Advantages of Yuanhang PI Graphitization Furnace

• ? Ultra-High Temperature Stability: Typical operating temperature reaches 2850°C, with a maximum design temperature of 3000°C, meeting the requirements for high-quality graphitization transformation.
  ? Special Coil Process: Induction coils undergo 5 layers of deep insulation treatment, completely solving the problems of high-temperature arcing and leakage, thus extending service life.
  ? Comprehensive Monitoring: Integrates automatic control for water, electricity, and gas systems along with audible and visual alarms, ensuring safety during extended heat treatment processes.
  ? Data Confidentiality Management: Equipped with a USB interface for recording process curves and features password-protected data export to prevent the leakage of core production processes.
  ? Intelligent Temperature Control System: PID program control (accuracy ±10°C) combined with infrared optical pyrometry, supporting operation under slight positive pressure protective atmospheres.
