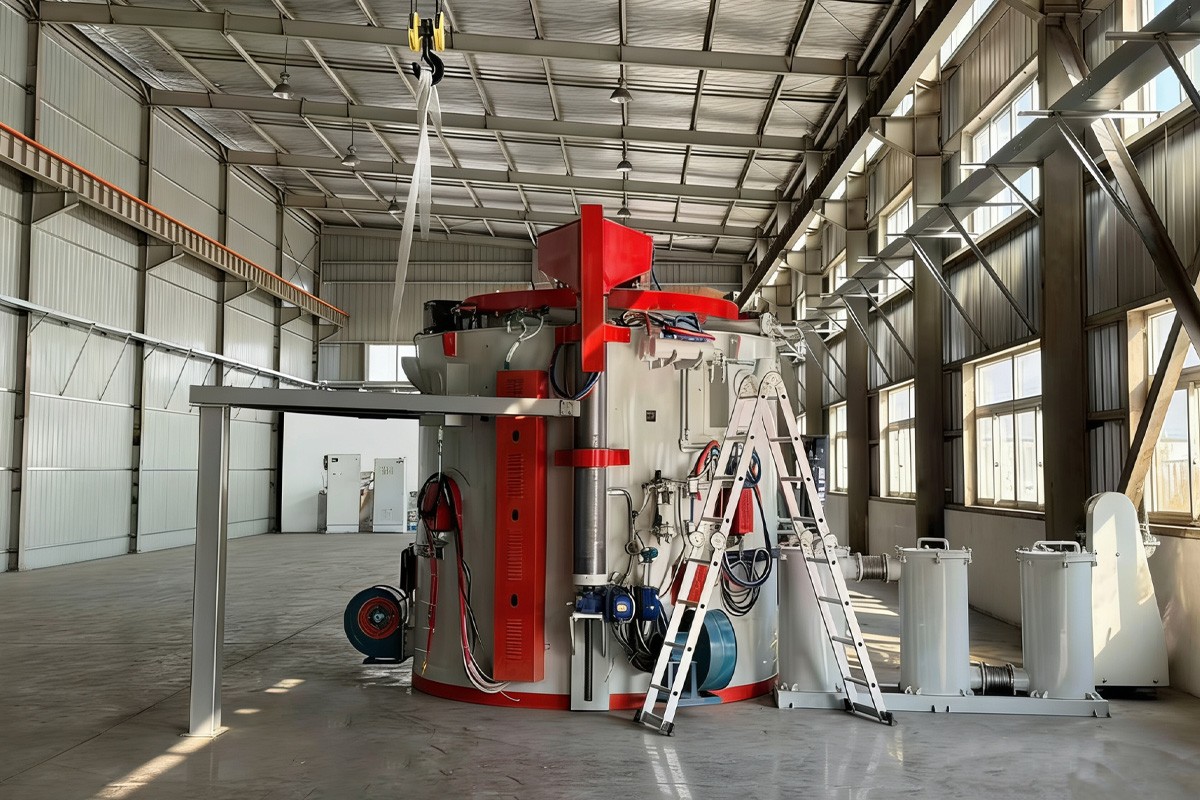

Al-Mg Alloy Atmosphere Furnace

Name: Al-Mg Alloy Atmosphere Furnace
Brand: YuanHang

A specialized stress relief solution for SLM/DMLS 3D printed aluminum/magnesium alloys and aerospace-grade precision parts. By utilizing high-vacuum or high-purity argon environments, it precisely eliminates residual stresses without altering surface characteristics, effectively resolving deformation and cracking in complex thin-walled structures.

Product details

Product Overview

This series of Al-Mg alloy atmosphere furnaces is engineered for light alloys requiring extreme environmental purity and thermal uniformity. Operating up to 950°C (with superior performance in the 200-600°C range), it ensures workpieces remain oxide-free via deep vacuum or high-purity argon protection. The system fully complies with aerospace and medical industry standards for data traceability.

Key Advantages

Precision Deformation Control: Provides ultimate thermal uniformity (±3°C) for complex structures, minimizing thermal distortion and ensuring dimensional accuracy.
Surface Integrity: Addresses the high reactivity of Al-Mg alloys with strict vacuum management and inert atmospheres to prevent blackening and discoloration.
Full Traceability: Automatically records and exports temperature and vacuum logs to meet AS9100 or ISO 13485 audit and compliance requirements.
Cleanliness & Cooling: Oil-free and dust-free interior with an optional forced air cooling system to shorten cycles while maintaining high surface cleanliness.

Technical Specifications

Item	Specifications
Materials	Al-Mg Alloys, Titanium, Superalloys, Tool Steel
Cooling Method	Natural Furnace Cooling or Forced Air Cooling (Optional)
Data Logging	Full-process Temp/Vacuum recording & export
Clean Standard	Oil-free and dust-free interior design
Control Accuracy	±0.1°C (Precision PID Regulation)
Atmosphere	High-purity Argon (Ar) or High Vacuum
