Overview

In graphitization production, when the product shape is square (such as graphite boxes or multi-layer stacked graphite paper), conventional cylindrical graphitization furnaces create significant dead space, resulting in dual waste of energy and space. Yuanhang Industrial Furnace has redesigned the square horizontal graphitization furnace, which not only retains the advantages of easy loading/unloading and simple maintenance inherent to horizontal furnaces but also solves space utilization challenges through structural improvements, making it the optimal choice for modern carbon material production lines.

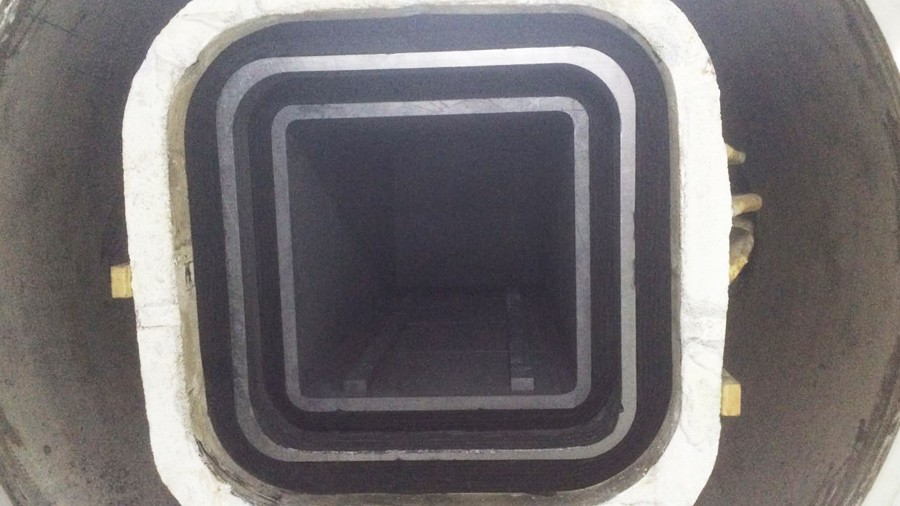

Image: Yuanhang Industrial Furnace - Square Horizontal Graphitization Furnace (Solving Square Material Loading Challenges)

Parameters

Key Features

1. 1.Full-Range Coverage: Ultra-high temperature furnace body reaching up to 3000°C, suitable for graphitization treatment of various carbon materials.

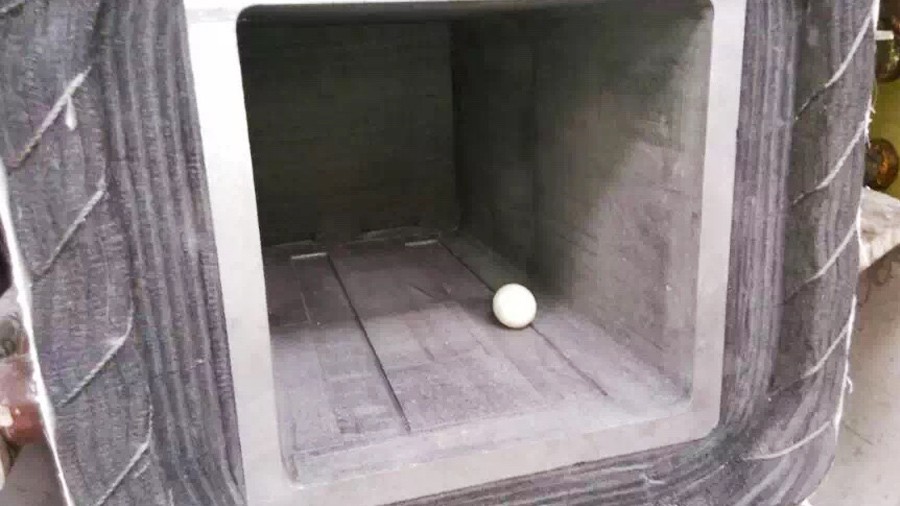

2. 2.Large Arc Angle Crucible: The square heating graphite crucible is processed with large arc angles for more uniform induction heating and reduced thermal stress.

3. 3.Bottom Support Design: Yuanhang's proprietary support structure minimizes ablation sinking and gravitational settling during production.

4. 4.Special Insulated Coils: Induction coils undergo 5 cycles of precision insulation treatment, completely eliminating arcing and current leakage.

5. 5.Digital Management: PLC centralized control with digital storage of all operating parameters and a reserved communication interface for connection.

Applications

• Graphite Products: Ultra-high temperature treatment of square graphite boxes, graphite crucibles, and custom-shaped graphite components.
• Thermal Conductive Materials: Graphitization modification of large-area stacked graphite paper and thermal conductive films.
• Laminated Materials: Various film materials requiring stretching or compression treatment in a carbon atmosphere.
