Vertical Vacuum Brazing FurnaceVertical Vacuum Brazing Furnace

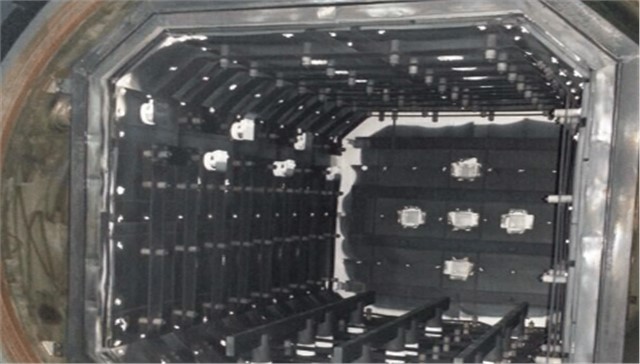

Vertical Vacuum Brazing Furnace

Structural Advantage: Features a vertical single-chamber, horizontal bottom-loading structure, which not only facilitates the stable placement and removal of large workpieces but also ensures exceptional temperature field uniformity inside the furnace chamber. Core Performance: Typical operating temperature of 1320°C, with an ultimate vacuum reaching 5.0×10??Pa. Equipped with molybdenum-lanthanum alloy heating elements, it achieves oxidation-free, high-quality brazing. Intelligent Integration: Fully automatic control system with comprehensive fault self-diagnosis and process management functions. Supports inert gas charging adjustment from 0.5Bar to 10Bar absolute pressure, meeting stringent process requirements.

Introduction

Vertical Vacuum Brazing Furnace is a precision welding equipment developed by Yuanhang Industrial Furnace specifically for materials such as superalloys, stainless steel, and titanium alloys. This equipment is widely used for vacuum brazing of aero-engine blades, precision heat exchangers, and gas turbine components. Its vertical structure, combined with the molybdenum-lanthanum alloy heating system, maintains excellent structural stability and temperature control accuracy at high temperatures, ensuring that the welded products are oxidation-free, have minimal deformation, and exhibit excellent strength.

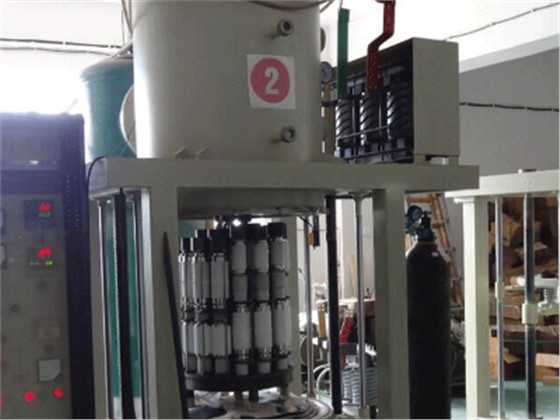

立式真空钎焊炉设备实拍

Image: Yuanhang Industrial Furnace - Vertical Single-Chamber High-Vacuum Brazing System

Technical Specs

Effective Zone Dimensions (mm) Batch Load (kg) Heating Power (kw) Maximum Temperature (℃) Ultimate Vacuum (Pa) Gas Cooling Pressure (bar)
300X300X500 100 60 1320 (Continuous Operation) 5.0×10?? (Cold State) 0.5~10 (Continuously Adjustable)
500X500X800 350 100
600X600X1000 500 135
800X800X1500 1000 240
1000X1000X2000 2000 400


Performance Specifications: Temperature Uniformity ≤ ±5℃, Pressure Rise Rate ≤ 0.67Pa/h,Heating Rate ≤30min (Empty Furnace from 250℃ to 1150℃)

Technical Highlights of Yuanhang Vertical Brazing Furnace

  • ?Extreme Vacuum Performance:Utilizes a multi-stage sliding vane pump set and diffusion pump system, capable of evacuating from atmosphere to 5.0×10?³ Pa within 30 minutes.
    ?Uniform Temperature Field Control:Scientific arrangement of molybdenum-lanthanum alloy heating elements ensures temperature uniformity superior to ±5℃ across the entire temperature range from 500℃ to 1320℃.
    ?Circumferential Controllable Cooling:Equipped with a high-efficiency external circulation gas cooling system featuring circumferentially controllable cooling gas flow direction, significantly reducing the risk of workpiece distortion.
    ?Precision Partial Pressure Technology:Partial pressure accuracy superior to10Pa, supporting manual/automatic adjustment within the range of 5Pa to 1000Pa, suitable for complex solder processes.
    ?Imported Core Configuration:Temperature control instruments, measurement components, and key valves are selected from leading international brands, ensuring high equipment reliability.

Applications

• Aerospace: Vacuum brazing of turbine blades, guide vanes, and fuel nozzles.
• Automotive Manufacturing: Large-scale brazing of EGR coolers, oil coolers, and stainless steel radiators.
• Electronics & New Energy: Brazing of copper alloy substrates, sensor housings, and vacuum packaging components.
• Specialty Alloys: Precision joining of titanium alloys, elastic alloys, and refractory metals.

Yuanhang Industrial Furnace — Enabling Precision Metal Joining Processes, Achieving Oxidation-Free, High-Strength Welds.

Request detailed process solutions and non-standard dimension customization recommendations：15115399105
