Vacuum Sintering and Debinding Integrated FurnaceVacuum Sintering and Debinding Integrated Furnace

Vacuum Sintering and Debinding Integrated Furnace

Process Innovation: Integrates vacuum debinding (dewaxing) and high-temperature sintering into one unit, effectively preventing oxidation and damage to workpieces during transfer between processes. Technical Specifications: Rated temperature of 1550°C, with a dewaxing rate of ≥96%. Equipped with directional airflow debinding function, making it particularly suitable for efficient processing of wax-based binders and other forming agents. Structural Advantages: Horizontal water-cooled jacket design, featuring PLC + pneumatic valve fully automatic control and a high-efficiency rapid cooling device, significantly shortening the production cycle while ensuring product density and strength. Contact Hotline: 15115399105.

Overview

Yuanhang Vacuum Sintering and Debinding Integrated Furnace is a high-efficiency batch-type heat treatment equipment. It is widely used for the debinding and sintering processes of cemented carbides, high-density alloys, stainless steel products, magnetic materials, and ceramic powders. During the debinding stage, the system can introduce a small amount of directional gas based on the binder content of the product to achieve efficient dewaxing. During the sintering stage, a high vacuum environment ensures the purity of the material.

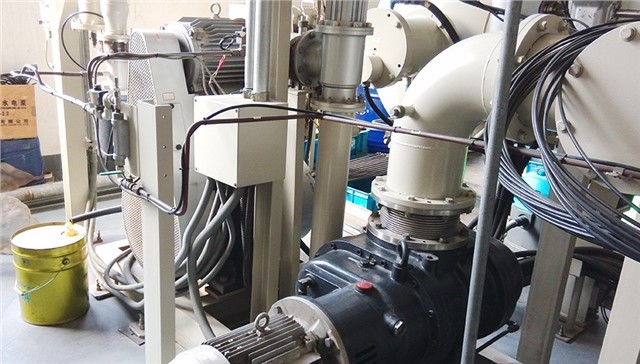

真空烧结脱脂一体炉设备实拍

Image: Yuanhang Industrial Furnace - Fully Automatic Vacuum Debinding and Sintering Production System

Technical Specs

Technical Parameter YHSJL-30×30×60 YHSJL-40×40×100 YHSJL-50×50×120
Working Zone Dimensions(W*H*L) 300×300×600 mm 400×400×1000 mm 500×500×1200 mm
Rated Load Capacity 150 kg 300 kg 500 kg
Heating Power Approx.75 KW Approx.90 KW Approx.135 KW
Rated / Typical Operating Temperature

 1550 ℃ / 1500 ℃
Ultimate Vacuum / Pressure Rise Rate 2 Pa / ≤ 1 Pa/h
Dewaxing Rate Performance ≥ 96%(under negative pressure carrier gas dewaxing conditions)


* Note: Supports inert protective atmospheres such as Ar, N?, cooling gas pressure ≤ 0.15MPa, equipped with a high-efficiency rapid cooling device.

Technical Advantages of Yuanhang Debinding and Sintering

Integrated Furnace

  1. 1.Directional Gas Flow Debinding:The system can introduce a small amount of protective gas to achieve directional gas flow debinding, ensuring complete removal of the binder.

  2. 2.Highly Reliable Sealing Structure:Horizontal single-chamber water-cooled jacket with a double-door manual clamping design, with the inner layer made of stainless steel anti-corrosion material.

  3. 3.Fully Automatic Pneumatic Control:Key valves in the vacuum system are controlled pneumatically, combined with a Siemens PLC, offering intuitive operation and high stability.

  4. 4.Safe Pressure Relief System:The furnace body is equipped with an electric contact pressure gauge that automatically triggers pressure relief in case of overpressure, ensuring comprehensive operational safety.

  5. 5.Efficient Circulation Rapid Cooling:Integrates a fan impeller and built-in heat exchanger. Introducing Ar gas allows for rapid cooling of workpieces, significantly shortening the single-furnace cycle.

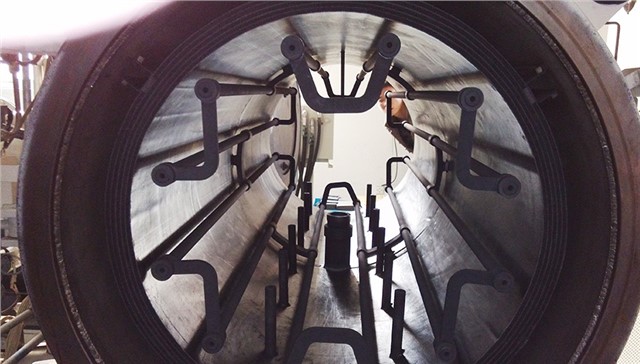

烧结脱脂炉内部装载空间

Applications

  • •Cemented Carbides:Integrated production of debinding and sintering for WC powder products, cutting tools, and molds.
    •Stainless Steel MIM:High-quality sintering of precision stainless steel structural components for medical devices and smart terminals.
    •Ceramic Powders:Precision heat treatment of specialty ceramic products such as zirconia and alumina.
    •Magnetic Materials:High-temperature sintering of magnetic components that are sensitive to oxygen and require extremely high purity.
一体炉生产现场展示

Yuanhang Industrial Furnace — Providing One-Stop Solutions for Precision

Debinding and Sintering.
