Overview

The C/C-SiC carbon-ceramic pyrolysis furnace is primarily used for high-temperature heat treatment of carbon-ceramic materials under controlled atmospheres (nitrogen or vacuum). Carbon-ceramic, as a specialized material composed of silicon carbide and additives, exhibits exceptional high-temperature stability and mechanical properties. Yuanhang Industrial Furnace achieves precise control over material properties and morphology by accurately regulating heat treatment conditions, meeting the preparation requirements of complex-shaped ceramic components.

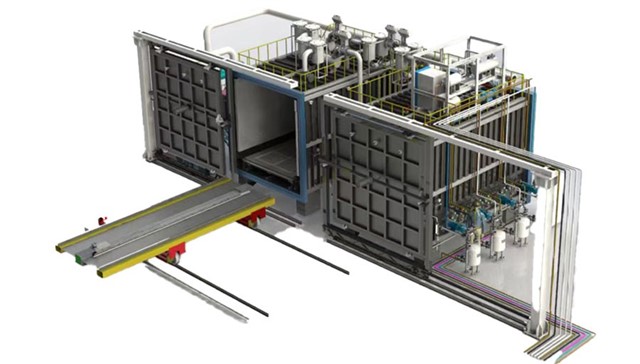

Image: Yuanhang Industrial Furnace - Carbon-Ceramic Impregnation/Pyrolysis Furnace (Suitable for Nitrogen/Vacuum Atmospheres)

Technical Advantages of Yuanhang Pyrolysis Furnace

• ?Multi-Zone Temperature Control:Internal multi-zone heating design ensures exceptional temperature uniformity for large-sized workpieces.
  ?Corrosion-Resistant Shielding:Features an effective shielding layer designed specifically against matrix volatiles, protecting heating elements and insulation from corrosive gas damage.
  ?Optimized Exhaust System:Multi-channel exhaust with precise control achieves perfect balance between temperature uniformity and smooth gas venting.
  ?Pressure Self-Balancing:Integrated automatic pressure balancing system for vacuum and nitrogen enables fully automated process switching.
  ?High-Efficiency Turnaround:Optional fast cooling circulation system available, complemented by specialized seamless transfer carts compatible with impregnation furnaces.

Process

Yuanhang offers a comprehensive range of carbon-ceramic fabrication equipment, supporting the following mainstream process routes:

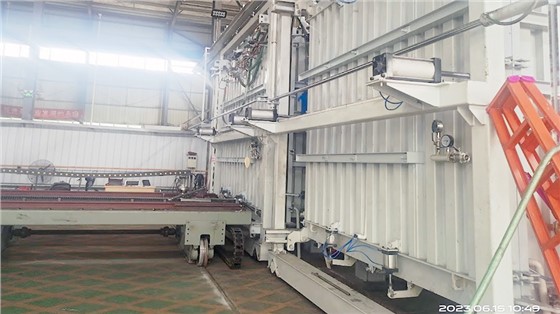

Image: Yuanhang Industrial Furnace - Production Line Details for Carbon-Ceramic Composite Preparation

Technical Specs
