Introduction
Polyimide (PI) film can be transformed into graphite sheets with extremely high thermal conductivity through ultra-high temperature carbonization and graphitization. The specialized PI graphitization equipment produced by Yuanhang Industrial Furnace is a cost-effective system developed to meet the needs of the thermal graphite sheet industry. It is not only suitable for processing PI films but also for ultra-high temperature graphitization modification of graphene thermal conductive films and other composite thermal conductive materials, and has received widespread acclaim from users in the industry.

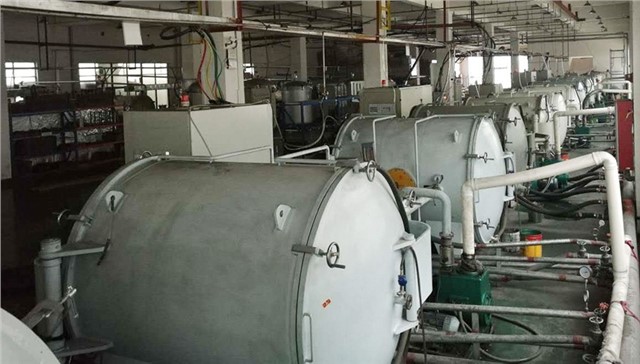

Image: Yuanhang Industrial Furnace - PI Graphitization Ultra-High Temperature Induction Heating System
Technical Specs
| (Model) | Crucible Dimensions(Φ*H mm) | Power Rating (Kw) | Maximum Temperature (℃) | Vacuum (Pa) |
|---|---|---|---|---|
| YH-GFL-R20/30 | Φ200 * 300 | 70 | 3000 | 1.2 × 10?¹ |
| YH-GFL-R40*100 | Φ400 * 1000 | 160 | ||
| YH-GFL-R60*160 | Φ600 * 1600 | 240 | ||
| YH-GFL-R70*160 | Φ700 * 1600 | 300 | 3000 | 1.2 × 10?¹ |
Performance Specifications: Temperature difference ±10℃, Pressure rise rate ≤ 1.33 Pa/h,
Temperature measurement range 1000-3200℃ (accuracy 0.3%).
Technical Advantages of Yuanhang PI Graphitization Furnace
-
?Ultra-High Temperature Stability:Typical operating temperature reaches 2850°C, with a maximum design temperature of 3000°C, meeting the requirements for high-quality graphitization transformation.
?Special Coil Process:Induction coils undergo 5 layers of deep insulation treatment, completely solving the problems of high-temperature arcing and leakage, thus extending service life.
?Comprehensive Monitoring:Integrates automatic control for water, electricity, and gas systems along with audible and visual alarms, ensuring safety during extended heat treatment processes.
?Data Confidentiality Management:Equipped with a USB interface for recording process curves and features password-protected data export to prevent the leakage of core production processes.
?Intelligent Temperature Control System:PID program control (accuracy ±10°C) combined with infrared optical pyrometry, supporting operation under slight positive pressure protective atmospheres.
Applications
•PI Thermal Conductive Films:Winding or stacking graphitization of polyimide films in various specifications.
•Graphene Films:High-temperature reduction and lattice repair of graphene heat dissipation films.
•Composite Thermal Materials:Precision heat treatment of carbon-based/ceramic-based composite thermal materials.
Yuanhang Industrial Furnace — Supporting Technological Innovation in Thermal Materials for Consumer Electronics.
Request detailed equipment selection and non-standard customization solutions：15115399105
