Overview
The vacuum medium frequency sintering furnace is a batch-type induction heating equipment developed by Yuanhang Industrial Furnace. This equipment is widely used in fields such as cemented carbides, superalloys, optoelectronic materials, functional ceramics, and powder metallurgy. Specifically designed for the powder forming and sintering of refractory metals like tungsten, molybdenum, and their alloys, this equipment excels in ultra-high temperature (up to 2500°C) and high vacuum (10?? Pa level) environments.

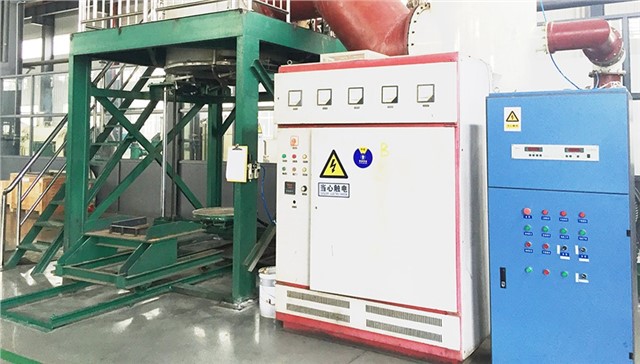

Image: Yuanhang Industrial Furnace - Vacuum Medium Frequency Induction Sintering Furnace (Pilot / Production Scale)
Technical Advantages of Yuanhang Medium Frequency Sintering Furnace
-
?Efficient Structure:Single-chamber horizontal structure with front door opening or front/rear double door design, offering convenient operation and a compact, space-saving footprint.
?Extreme Temperature:Maximum operating temperature supports ranges from 1800°C to 2500°C, meeting the graphitization and sintering requirements of most new materials.
?Flexible Cooling:Natural cooling in the high-temperature section, and supports forced circulation cooling with positive pressure inert gas in the low-temperature section, significantly shortening production cycles.
?Full Environment Adaptability:Suitable for operation under hydrogen (H?), nitrogen (N?), inert gas protection, or high vacuum conditions up to 1×10?? Pa.
?Precision Monitoring:Utilizes a far-infrared optical pyrometry system with a temperature measurement accuracy of 0.2~0.75%, ensuring precise and controllable temperature field.
Specs
| Working Zone Dimensions (φ×H mm) | Ultimate Vacuum (Pa) | Maximum Temperature (℃) | Temperature Uniformity (℃) |
|---|---|---|---|
| Φ200 × 300 | 1X10?³ / 1X10?? | 2400-2500 | ±7.5 |
| Φ300 × 600 | 1X10?³ / 1X10?? | 2400-2500 | ±7.5 |
| Φ400 × 900 | 1X10?³ / 1X10?? | 2400-2500 | ±10 |
Applications
• Powder Metallurgy: Forming and sintering of refractory alloys such as tungsten, molybdenum, and their alloys.
• Tool Materials: Vacuum sintering of high-performance cemented carbide tools and dies.
• Ceramic Materials: Atmosphere pressure sintering of functional ceramics and transparent ceramics.
• New Energy: High-temperature modification treatment of lithium battery anode materials.
Yuanhang Industrial Furnace — Expert in Medium Frequency Induction Heat Treatment Technology.
Request non-standard design solutions and latest quotations：15115399105
