Overview
Yuanhang Large-Scale Medium Frequency Graphitization Furnace is a high-end industrial electric furnace specially developed for high-temperature treatment of carbon materials in large batches. Compared with the commonly used Acheson furnace in the market, it effectively solves a series of industry challenges such as prolonged power-on time, significant heat loss, large temperature differences in the furnace core, and the mixing of materials with resistor materials. With its high throughput and excellent temperature uniformity, this furnace type has become an ideal choice for the preparation of advanced materials like carbon nanotubes and high-purity graphite powder.

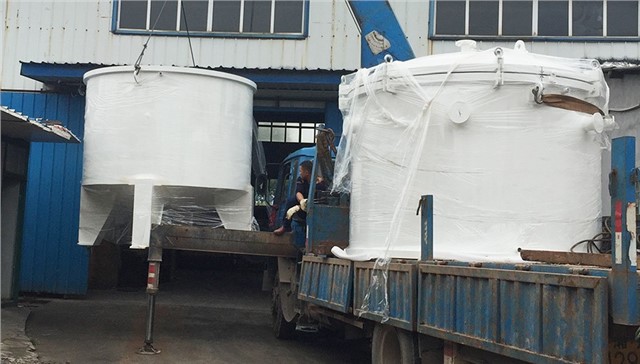

Image: Yuanhang Industrial Furnace - Production-Scale Large Graphitization System
Specs
| Model Specification (φ×H mm) | Medium Frequency Power (Kw) | Maximum Operating Temperature (℃) | Ultimate Vacuum (Pa) | Temperature Uniformity at Constant Temperature Zone (℃) |
|---|---|---|---|---|
| Φ900 × 1600 | 500 | 2850-3000 | 15 | ±15 |
| Φ1000 × 1600 | 700 | 2850-3000 | 15 | ±20 |
* Yuanhang Industrial Furnace supports non-standard design calculations for power and specifications based on customer production requirements.
Technical Features of Yuanhang Large-Scale Graphitization Furnace
2. Multiple Atmosphere Environments: Supports vacuum purging, Ar, and N? protective operation (with slight positive pressure control).
3. Infrared Precision Monitoring: Equipped with multi-point infrared optical pyrometry, with a temperature measurement range of 1000-3200°C and an accuracy of 0.3%.
4. High Insulation Assurance: The specially designed induction coils undergo 5 cycles of insulation treatment, completely eliminating arcing and current leakage.
5. Process Security Encryption: PLC programming control with password-protected historical data export, ensuring the security of the enterprise's core processes.
Applications
• Carbon Nanotubes (CNT): Ultra-high temperature purification and graphitization of carbon nanotubes used for lithium battery conductive slurries.
• High-Purity Graphite: Efficient production of semiconductor-grade and nuclear-grade graphite powder materials.
• Powder Purification: High-temperature impurity removal for various carbon-based powders in large-scale production.
Yuanhang Industrial Furnace — Enabling Green, Energy-Efficient, Large-Scale Production of High-Performance Carbon Materials.
Request furnace loading diagram design and detailed technical solutions：15115399105
