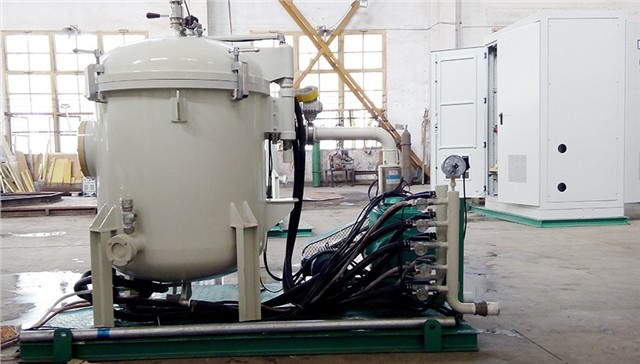

Laboratory-Scale Graphitization FurnaceLaboratory-Scale Graphitization Furnace

Laboratory-Scale Graphitization Furnace

Equipment Core: Specially designed for R&D in universities and scientific research institutions, with a maximum design temperature of up to 3200°C, meeting the graphitization requirements of various cutting-edge carbon materials. Operational Experience: Features "one-click" startup/shutdown and graphical interface self-programming, completely eliminating operational barriers and allowing researchers to focus on their core work. Compact Integration: Built-in water cooling system eliminates complex external piping, with an extremely compact footprint perfectly suited for laboratory environments in high-rise buildings or space-limited office areas.

产品简介 / Introduction

With the rapid development of new materials such as carbon nanotubes, graphene, and flexible graphite, research institutions and universities have an increasing demand for extreme heat treatment above 3000°C. The laboratory-scale graphitization furnace introduced by Yuanhang Industrial Furnace is tailored for high-end scientific researchers. This equipment not only possesses the ultimate performance capability of 3200°C but also features deep optimizations in operational convenience and maintenance costs, facilitating efficient R&D of advanced carbon/carbon materials.

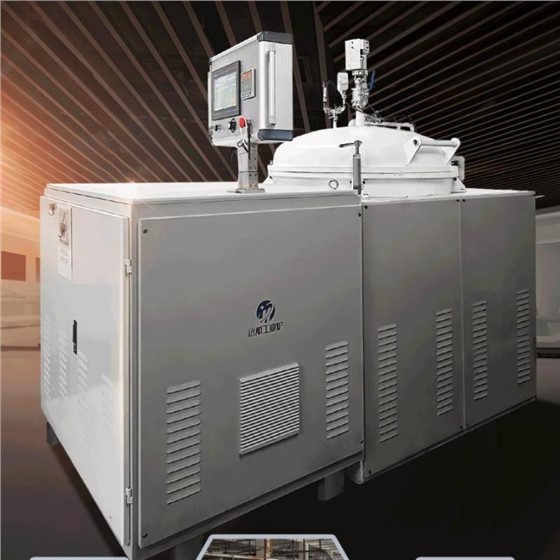

小型实验型石墨化炉主机实拍

Image: Yuanhang Industrial Furnace - Lab-Scale Graphitization High-Temperature Furnace (For Laboratory Use)

Specs

Maximum Design Temperature 3200℃
Long-Term Continuous Operating Temperature 3000℃(Can operate continuously for over 12 hours)
Furnace Chamber Charging Dimensions φ200 × 350mm(Standard stock size, non-standard customization supported)
Working Atmosphere Nitrogen, Argon, Vacuum (Vacuum operation not to exceed 2300°C)
Temperature Measurement/Control Method Imported two-color infrared pyrometer + intelligent fully automatic programmed temperature control
Maximum Heating Rate < 60 minutes (from room temperature to maximum temperature)


Why Choose the Yuanhang Laboratory-Scale Graphitization Furnace?

1.Extremely Simple Operation: One-click startup/shutdown for the entire process. Graphical interface for "self-service" process setting, requiring no professional electric furnace operation experience.
2. Fully Integrated System: Built-in internal circulating pure water cooling and dust prevention system. No need for external cooling towers, enabling truly modular installation.
3. Advanced IGBT Power Supply: Extremely quiet operation, no harmonic interference, ensuring no impact on other precision instruments in the laboratory.
4. High-Precision Monitoring: Equipped with two-color infrared temperature measurement and PLC automated protection, supporting full-parameter data acquisition and USB export.
5. Quick-Maintenance Design: Consumable parts use modular installation, allowing replacement by non-professionals in just 1 hour.

Applications

•New Energy Materials:High-temperature graphitization of carbon nanotubes, graphene, and graphite powder.
•Specialty Carbon Materials:Experimental heat treatment of flexible graphite, carbon paper/carbon cloth, and carbon fibers.
•Ceramic Materials:Research on vacuum sintering and purification of ultra-high temperature inorganic materials.

Yuanhang Industrial Furnace — Contributing to Every Great New Material Discovery.

Request detailed laboratory setup recommendations and latest quotation：15115399105
