Overview

The horizontal high-temperature graphitization furnace produced by Yuanhang Industrial Furnace is primarily used for sintering and graphitizing carbon materials, graphitizing PI films, sintering carbon fiber filaments, and processing other materials requiring ultra-high temperature treatment in a carbon atmosphere. Compared to conventional vertical furnaces, the horizontal structure operates on the same working principle but offers superior maneuverability: less labor-intensive loading/unloading, easier furnace cleaning, and more convenient daily maintenance.

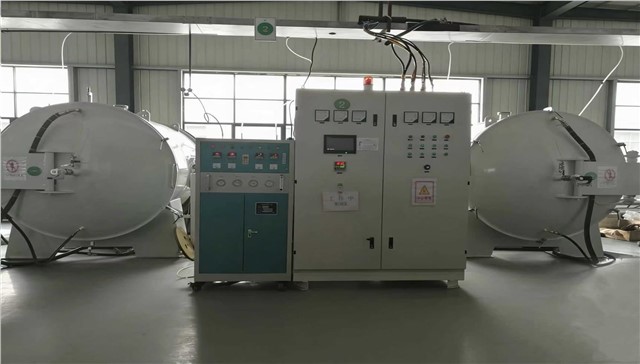

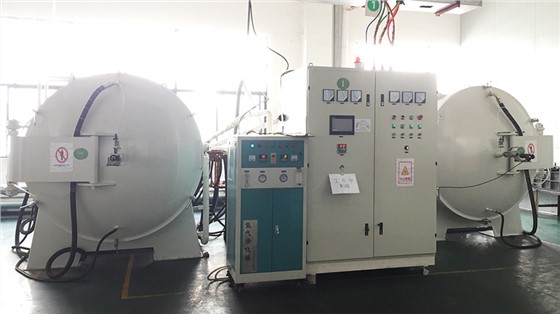

Image: Yuanhang Industrial Furnace - Horizontal High-Temperature Graphitization Furnace (Production-Scale)

Advantages Compared to Traditional Graphitization Furnaces

• ?Convenient Operation:The horizontal structure makes loading, unloading, cleaning, and replacing consumable parts (such as crucibles) easier and less labor-intensive.
  ?High Consistency:Compared to internal series furnaces or Acheson furnaces, it offers extremely uniform temperature field, short production cycles, and highly consistent product quality.
  ?Technical Improvement:Successfully solves the problem of crucible ablation and sinking in horizontal furnaces, with actual measurements showing only 5mm sinking after 60 furnace runs.
  ?Insulation Assurance:Induction coils undergo 5 cycles of special insulation treatment, eliminating arcing and current leakage.

Parameters

Applications

The equipment is widely used for:

• •Thermal Conductive Materials:Graphitization of PI films and thermal conductive graphite films.
  •Carbon Fibers:Sintering and graphitization of carbon fiber ropes and carbon fiber filaments.
  •Graphite Purification:High-temperature treatment of high-purity graphite materials and high-carbon powders.
  •Specialized Research:New materials requiring 3000°C experimentation in a carbon atmosphere.
