Overview
The High-Vacuum High-Temperature Carbonization Furnace is a material modification device designed by Yuanhang Industrial Furnace for high-end manufacturing industries. By subjecting materials to high-temperature heat treatment in a sealed vacuum environment, it precisely alters the atomic structure of the materials. As the process effectively isolates impurity gases such as oxygen, this equipment significantly reduces the ash content of materials, greatly enhancing their purity and structural orderliness, making it a critical step in achieving high material performance.

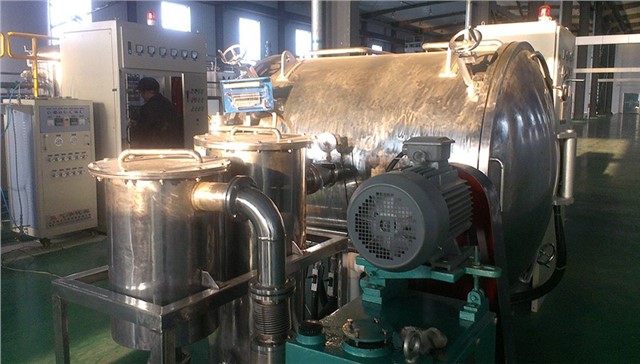

图：远航工业炉-高真空高温碳化处理系统
Technical Specs
| Working Zone Dimensions (W×H×L mm) | 400 × 400 × 1000 | 600 × 600 × 1500 | 700 × 700 × 2000 | |||
|---|---|---|---|---|---|---|
| Ultimate Vacuum (Pa) | 1X10?² | 1X10?³ | 1X10?² | 1X10?³ | 1X10?² | 1X10?³ |
| Max / Operating Temperature(℃) | 2400 / 2200 | 2200 | 2400 / 2200 | 2200 | 2400 / 2200 | 2200 |
| Temperature Uniformity (℃) | ±7.5 | ±7.5 | ±10 | |||
| Pressure Rise Rate (Pa/h) | 0.67 | |||||
Note: Custom non-standard dimensions are supported, and the high vacuum pump set configuration can be selected according to material characteristics.
Technical Features of Yuanhang High-Vacuum Carbonization Furnace
-
1.Ultra-High Temperature Capability:Maximum design temperature reaches 2400°C, meeting the carbonization requirements of top-tier carbon materials.
-
2.Large Charging Space:Optimized heating chamber layout provides ample charging space, and with a dedicated loading trolley, material loading and unloading are exceptionally smooth.
-
3.Graphite Heating System:Utilizes high-purity graphite heating elements with low-voltage, high-current multi-zone temperature control, ensuring high temperature field consistency.
-
4.Automated Furnace Door:Hinged electric rotary furnace door design offers excellent sealing while reducing labor intensity.
-
5.Comprehensive Protection:Fully automatic atmosphere/vacuum switching system supports operation under various inert gas protections.
Applications
-
•Aerospace:Precision carbonization treatment of carbon/carbon composites and pyrolytic carbon components.
•Semiconductor Industry:Modification and purification of high-purity graphite components and silicon carbide epitaxial substrates.
•Energy Storage Materials:High-temperature carbonization of high-end lithium battery anode materials and hard carbon materials.
•Specialty Fibers:High-temperature purification treatment of high-modulus carbon fibers and refractory fibers.
Yuanhang Industrial Furnace — Supporting High-End Material Carbonization Processes,
Providing High-Purity, High-Efficiency Heat Treatment Solutions.
Request detailed selection parameters and the manufacturer's latest quotation：15115399105
