Introduction
Yuanhang High-Temperature Graphitization Furnace is a high-efficiency heat treatment equipment developed for the modern carbon material industry. This series of equipment is commonly used in ultra-high temperature environments up to 3000°C and serves as a core tool for manufacturing high-thermal-conductivity graphite films (converted from PI film), lithium-ion battery anode powders, and the graphitization of various carbon materials. By optimizing the furnace chamber design, we ensure extremely high temperature consistency while significantly reducing equipment power requirements, achieving a perfect balance between high output and low energy consumption.
Note: Graphite crucibles of 700X700 and above specifications adopt a high-power graphite spliced design, with custom hydraulic pressing functionality available.
Technical Specs
| Model Specifications (HWL mm) | Medium Frequency Power (Kw) | Typical Temperature (℃) | Ultimate Vacuum (Pa) | Temperature Difference (℃) |
|---|---|---|---|---|
| 400 X 400 X 1000 | 130 | 2900-3000 | 1.2*10?¹ | ±10 |
| 600 X 600 X 1200 | 260 | 2900-3000 | 1.2*10?¹ | ±10 |
| 900 X 900 X 1600 | 500 | 2850 | 1.2*10?¹ | ±15 |
Note: Graphite crucibles of 700X700 and above specifications adopt a high-power graphite spliced design, with custom hydraulic pressing functionality available.
Technical Advantages of Yuanhang Graphitization Furnace
-
Rapid Response:Ultimate heating rate reaches 200°C/min, significantly shortening the production cycle.
-
Long Service Life:The crucible bottom is padded with high-strength rigid composite felt, ensuring even stress distribution and providing a service life 1.2 times longer than similar products.
-
Precise Temperature Control:Utilizes far-infrared optical pyrometry (1000-3000°C) with accuracy up to 0.3%, supporting slight positive pressure Ar/N? protection.
-
High Efficiency & Energy Saving:The combination of thickened alumina insulation and an optimized magnetic field coupling design minimizes heat loss, achieving industry-leading energy consumption performance.
-
Digital Management:Fully automatic PLC control supports the storage and recording of up to 20 process curves (totaling 400 segments).

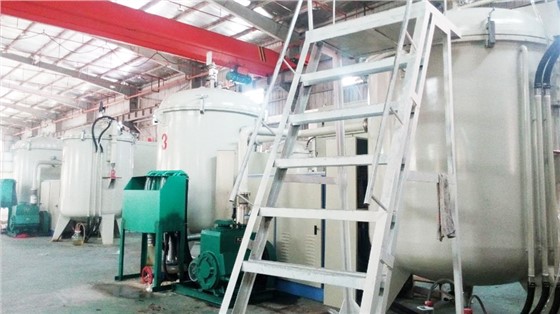

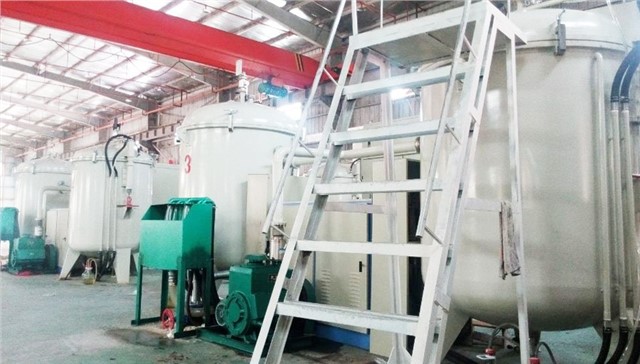

High-Temperature Graphitization Furnace Structural Detail Photo
Applications
-
•Thermal Conductive Materials:Graphitization of various high-thermal-conductivity graphite films, PI films, and graphene films.
•Energy Storage Batteries:High-temperature modification and purification of anode materials for lithium batteries and power batteries.
•Carbon Materials:Ultra-high temperature treatment of carbon fiber filaments, carbon/carbon composites, and graphite products.
•Non-Standard Customization:Support for furnace loading diagram provision and the integration of special hydraulic pressing systems.
Yuanhang Industrial Furnace — Providing a Full Range of Graphitization Solutions
from 400mm to 1000mm Specifications.
Request a complete graphitization furnace loading diagram and quotation recommendations:15115399105
