Introduction
The high-temperature carbonization furnace manufactured by Yuanhang Industrial Furnace is a core piece of equipment for achieving high-temperature carbonization treatment of materials in a sealed vacuum or protective atmosphere environment. By utilizing precise temperature control ramp rates and a low-pressure environment, it alters the atomic structure of materials, effectively isolating impurity interference and significantly enhancing material purity and structural order. This equipment lays a critical foundation for obtaining high-performance carbon materials and is widely used in high-end manufacturing fields such as aerospace, energy storage batteries, and semiconductor hot zones.

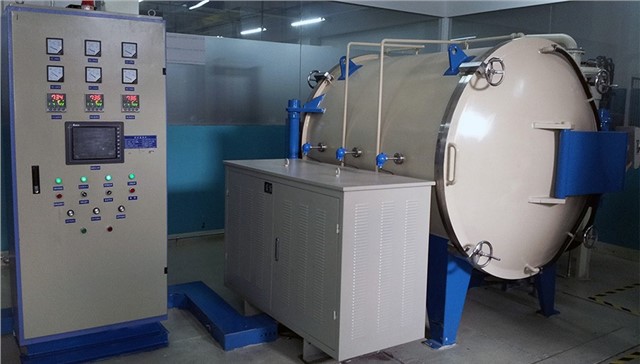

Image: Yuanhang Industrial Furnace - Large-Capacity High-Temperature Carbonization Treatment System
Technical Specs
| Model | Charging Dimensions (mm) | Power (KW) | Uniformity (℃) | Load Capacity (KG) |
|---|---|---|---|---|
| YH-THW-R80 | □800×800×1200 | 150 | ±10 | 800 |
| YH-THW-R100 | □1000×1000×1500 | 210 | ±10 | 1500 |
| YH-THW-R130 | □1300×1300×2000 | 300 | ±15 | 3000 |
| YH-THW-R150 | □1500×1500×3000 | 550 | ±15 | 5000 |
| YH-THW-R250 | □2500×2500×5000 | 1500 | ±15 | 15000 |
Core Common Specifications: Maximum Design Temperature 1650°C, Heating Voltage < 50V, Ultimate Vacuum 20Pa, Pressure Rise Rate 0.67 Pa/h.
Technical Highlights of Yuanhang Carbonization Furnace
-
? Giant Charging Space: Industry-leading 2500mm square furnace chamber design, with a single batch load capacity of up to 15 tons.
? Optimized Heating System: Utilizes high-purity graphite heating elements with a safe design featuring voltage below 50V, and multi-zone temperature control ensures a stable temperature field.
? High-Efficiency Turnaround: Equipped with a dedicated loading trolley, enabling exceptionally smooth material loading and unloading, significantly reducing auxiliary operation time.
? Sealing and Safety: Hinged electric rotary furnace door provides excellent sealing performance, featuring automatic over-temperature and over-pressure alarm functions.
? Full Environment Process: Supports operation under high vacuum or switching between various protective atmospheres, meeting the requirements of different sensitive materials.
Applications
•Fuel Cells:High-temperature carbonization and modification of carbon paper and carbon cloth substrates.
•Carbon Materials:Densification treatment of carbon/carbon composites (C/C), carbon paper, and carbon fiber felt.
•Graphite Products:Carbonization and purification of specialty graphite products and seals.
•Film Materials:Pre-carbonization process for PI films and polyimide thermal conductive films.
Yuanhang Industrial Furnace — Focused on Carbonization Technology,
Creating Customized High-Temperature Heat Treatment Equipment for You.
Request detailed non-standard custom designs and the manufacturer's latest quotation:：15115399105
