产品简介 / Introduction
Yuanhang Continuous Graphitization Furnace is primarily used for various flexible carbon materials under inert atmosphere protection, continuously passing through a high-temperature zone of 2000-3000°C. During this process, the microscopic hexagonal network structure of the material begins to rearrange and grow toward a planar grid, forming orderly stacked graphite crystals. This equipment is particularly suitable for high-modulus pitch-based carbon fibers, vapor-grown carbon fibers, graphite paper (flexible graphite), and other materials capable of withstanding certain tension and achieving self-towing. It is an essential tool for the industrial-scale production of high-end carbon materials.

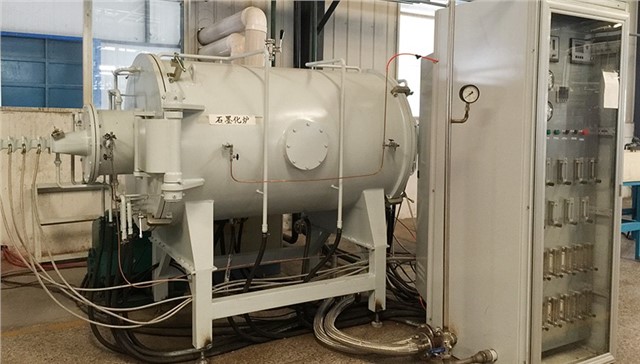

Image: Yuanhang Industrial Furnace - 2800°C Class Continuous Graphitization Processing System
Technical Specs
| Furnace Chamber Type | Circular Port (Induction) | Square/Wide Flat Port (Graphite Heating) | ||||
|---|---|---|---|---|---|---|
| Inlet/Outlet Port Size (mm) | Φ50 | Φ100 | 200×40 | 500×80 | 700×80 | 900×80 |
| High-Temperature Zone Length (mm) | 1000 | 1200 | 1000 | 2000 | 6000 | 8000 |
| Maximum Temperature (℃) | 2950 | 2950 | 2950 | 2900 | 2850 | 2850 |
| Heating Method | Medium Frequency Induction Heating | High-Purity Graphite Resistance Heating | ||||
| Furnace Body Dew Point (℃) | -70 | |||||
Note: Both air curtain length and water cooling length support non-standard customization from 200mm to 1200mm.
Technical Highlights of Yuanhang Continuous Graphitization Furnace
-
1.Extreme Process Control:Digital intelligent temperature control supports storage of 20 process curves (totaling 400 segments), fully automated for purging, heating, and cooling.
-
2.Modular Integrated Design:Power supply, water cooling, and gas protection are highly integrated. Components are clearly marked with serial numbers, supporting remote fault diagnosis and maintenance.
-
3.Advanced Temperature Measurement System:High-precision infrared pyrometer combined with bidirectional closed-loop PID adjustment ensures minimal temperature field fluctuations during ultra-high temperature continuous operation.
-
4.Efficient Atmosphere Protection:Features an ultra-low dew point of -70℃, with multi-channel intake and exhaust design, completely eliminating oxidation interference during the graphitization process.
-
5.Environmental Protection & Energy Saving:Utilizes a true internal circulating pure water cooling and dust-proof design, reducing harmonic interference (IGBT power supply) and protecting other instruments in the workshop.
Applications
-
•Carbon Fiber Industry:Shaping and continuous graphitization of high-modulus pitch-based and viscose-based carbon fibers.
•Thermal Conductive Materials:High-speed production of graphite paper (flexible graphite film) for smartphone heat dissipation.
•Ceramic Fibers:Ultra-high temperature treatment of silicon carbide fibers (SiC) and their composite fibers.
•New Carbon Materials:Continuous modification of vapor-grown carbon fibers and conductive specialty carbon cloth.
Yuanhang Industrial Furnace — Committed to Providing Complete Continuous Heat
Treatment Solutions for High-Performance Carbon Materials.
Request design drawings for the 900mm wide continuous furnace or schedule a technical discussion：15115399105
