Overview
Yuanhang Continuous Carbonization Furnace for Carbon Fiber is a large-scale production line developed for polyacrylonitrile (PAN)-based, pitch-based, viscose-based fibers, and fuel cell carbon paper. By precisely controlling the fiber travel speed and temperature field gradient, this production line facilitates the chemical transformation of materials under a controlled atmosphere. The equipment integrates an advanced adaptive tension system, solving the industry challenges of easy breakage and wrinkling of flexible materials during continuous processing. It is a core piece of equipment for achieving domestic substitution in high-end carbon material production.

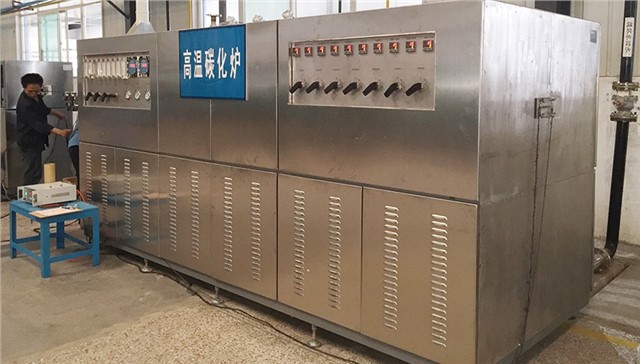

Image: Yuanhang Industrial Furnace - Roll-to-Roll Continuous Carbon Fiber Heat Treatment Production Line
Technical Specs
| Process Module | Typical Operating Temperature (℃) | Heating Element | Typical Opening Size (mm) | Number of Control Zones |
|---|---|---|---|---|
| Low-Temperature Tar Removal Section | 850 | High-Temperature Resistance Wire | H150 × W800 × L4000 | 2 Zones |
| Medium-Temperature Carbonization Section | 1650 | Silicon Carbide Rods / High-Purity Graphite | □1300 × 120（Height Adjustable） | 3 Zones |
| High-Temperature Graphitization | 2800 - 3000 | High-Purity Graphite Heating Elements | Customized per process | Multiple Independent Zones |
* Performance Specifications: Temperature control accuracy ±1°C, equipped with a labyrinth-type oxygen-excluding sealing device,
supporting 0.5Bar positive pressure atmosphere protection.
Technical Highlights of Yuanhang Continuous Carbonization Furnace
-
Full-Process Gradient Temperature Control:Supports setting up to 400 segments of process curves, enabling precise staged temperature control from room temperature to 2800°C.
-
High-Precision Tension Control:Integrated closed-loop drive system ensures stable stress distribution for flexible carbon paper during continuous operation, preventing wrinkles and damage.
-
Labyrinth Sealing Technology:Specialized gas seals and oxygen-excluding devices at the inlet and outlet achieve an ultra-low dew point of -70°C, ensuring an oxygen-free carbonization environment.
-
Digital Data Acquisition:Siemens PLC enables real-time monitoring of all water, electricity, and gas parameters, supporting process traceability and remote maintenance.
-
Environmentally Friendly & Energy-Saving Design:Utilizes internal circulating pure water cooling and the latest IGBT power supply, featuring a high power factor and significantly reducing energy consumption per ton of output.
Automated reel-in and wire feeding system
For fuel cell carbon paper and flexible fabrics, Yuanhang provides customized powered unwinding/rewinding solutions:
•Edge Control Function:Equipped with a highly sensitive edge control device, ensuring material alignment accuracy better than ±0.5mm.
•Seamless Integration:Works with dedicated transfer trolleys to achieve industrial synergy with upstream impregnation and downstream graphitization processes.
•Consumable Parts Maintenance:Modular design with key components featuring serial number identification, allowing quick replacement by general workers.
Yuanhang Industrial Furnace — Enabling Domestic Large-Scale Production of
High-Performance Carbon Fibers.
Request a complete layout drawing for the thousand-ton-scale carbon fiber production line now：15115399105
