Overview
Yuanhang Ceramic Sintering/Calcining Furnace is a new generation of high-performance electric furnace developed for new ceramic materials, powder metallurgy, and precision structural components. Compared to conventional equipment, this series of furnaces offers superior stability during extended high-temperature operation (72h+) and higher energy efficiency. Through precise atmosphere control and an advanced temperature control system, it effectively enhances the physical properties and yield rate of various specialty ceramics such as zirconia and alumina.

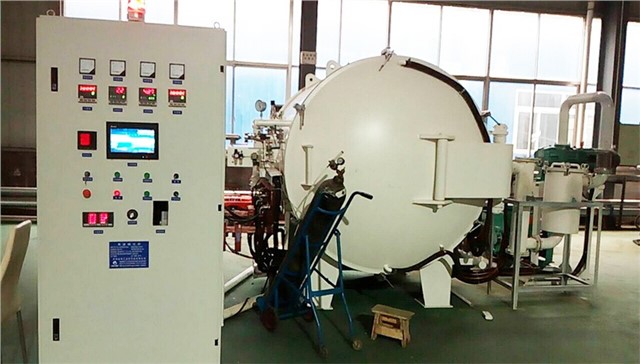

Image: Yuanhang Industrial Furnace - High-Temperature Ceramic Vacuum Sintering/Calcining System
Technical Specs
| Model Specifications (HWL mm) | Power Rating (Kw) | Maximum Operating Temperature (℃) | Ultimate Vacuum (Pa) | Temperature Difference in Constant Temperature Zone (℃) |
|---|---|---|---|---|
| 400 X 400 X 1000 | 90 | 2300 | 1.0 * 10?³ | ±10 |
| 600 X 600 X 1200 | 200 | 2300 | 1.0 * 10?³ | ±10 |
| 900 X 900 X 1600 | 330 | 2300 | 1.0 * 10?³ | ±15 |
Note: Pressure rise rate ≤ 0.67 Pa/h. For furnace chambers of 700X700 and above, the graphite material adopts a high-strength spliced design.
Technical Advantages of Yuanhang Ceramic Furnace
-
?Extreme Temperature Field Control:Supports long-term (72h+) continuous operation with temperature control accuracy of ±0.1°C and measured temperature field uniformity better than ±5°C.
?Versatile Environment Adaptability:Supports vacuum sintering, protective atmosphere sintering (with slight positive pressure control), or reducing atmosphere heat treatment.
?Infrared Precision Monitoring:Utilizes a dual-component system consisting of thermocouples and far-infrared optical pyrometry to ensure full-range (room temperature to 2300°C) monitoring without blind spots.
?High-Efficiency & Energy-Saving Design:Optimized heating element layout and insulation materials significantly reduce power loss compared to conventional furnace types, achieving substantial energy savings.
?Fully Automatic Intelligence:Features both programmable and manual control modes with PLC digital recording of all sintering process data.
Applications
• Precision Ceramics: High-temperature sintering of zirconia dental ceramics and alumina structural components.
• Powder Metallurgy: Densification treatment of specialty metal powders and cemented carbide materials.
• New Material R&D: Calcination experiments for ultra-high temperature inorganic materials in universities and laboratories.
• Functional Ceramics: Pressureless or reducing atmosphere sintering of transparent ceramics and optoelectronic ceramics.
Yuanhang Industrial Furnace — Enabling High-Consistency Heat Treatment Production
for High-Performance Ceramic Materials.
Request detailed equipment selection parameters or schedule a technical consultation：15115399105
