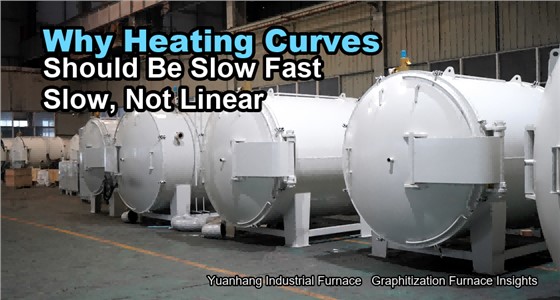

Heating Rate Control: Why ""Slow-Fast-Slow"" Instead of Linear Heating?"&"
Many beginners operating graphitization furnaces have an intuition—the faster the heating, the higher the efficiency. Why can't we just go straight to the highest power and quickly raise the temperature? The answer is: the heating curve of the g"&"raphitization process is usually an **S-shaped ""slow-fast-slow""**. This is not an artificial limitation, but determined by the physicochemical properties of the materials.
**Phase 1: Low Temperature, Slow Speed (RT~800℃)** This stage, while not h"&"ot, requires the most caution. The reasons are: **Moisture and Organic Matter Removal:** Adsorbed moisture and residual binders in the carbon material evaporate significantly within this temperature range. Rapid heating can prevent the internal vapor pre"&"ssure from releasing, potentially causing the material to crack or burst. **Thermal Stress Control:** Large temperature differences between the inside and outside of the material generate thermal stress. At low temperatures, the material strength is lowe"&"r, making it more susceptible to cracking due to thermal stress. **Phase 2: Medium Temperature, Rapid Speed (800~2000℃)** After entering the medium temperature range, the material is relatively stable, volatile substances are largely removed, and the"&" risk of thermal stress decreases. This stage can be achieved by **appropriately increasing the heating rate** to pass through quickly. At this stage, the material mainly undergoes carbon skeleton restructuring, and the reaction rate is moderate, so a par"&"ticularly slow heating is not necessary. **Third Stage: High Temperature, Slow Rate (2000℃ → Target Temperature)** **Upon entering the high-temperature region, the actual **graphitization reaction** begins on a large scale. Carbon atoms rearrange to for"&"m a layered graphite structure, which is a time-consuming process.** Too rapid heating:- Incomplete graphite crystal development, insufficient graphitization
- Large temperature difference between the inside and outside of the material, o"&"verheating of the outer layer and underheating of the inner layer
- Excessive heat load on the heating element, accelerating heat loss
Summary: The ""slow-fast-slow"" design of the S-shaped heating curve is based on the physicochemical behavior characteristics of the material in different temperature ranges. A good heating curve is one of the core secrets of the graphitization process and need"&"s to be continuously optimized through experiments based on specific materials.
