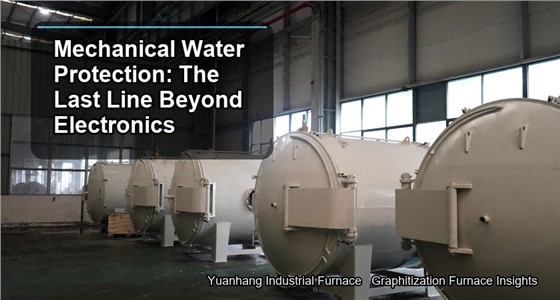

Mechanical Water Circuit Protection: The Last Line of Defense Without R"&"elying on Electronic Systems
Last year, I visited a long-time client's factory for equipment inspection. During our casual conversation, he mentioned a sudden power outage the summer before last, which stopped the cooling water pump. After power "&"was restored, the pump didn't automatically restart, even though the furnace temperature was still very high. Fortunately, his furnace had a **mechanical water circuit protection device**, which immediately sent a signal to the PLC (some PLCs have UPS pow"&"er, some don't) to trigger an alarm when the water flow became abnormal. Most importantly, it activated the tap water supply to circulate cooling water through critical parts of the furnace, preventing a potentially serious accident.
This incident mad"&"e me realize that many people only focus on the intelligent protection of electronic control, but overlook the irreplaceable nature of **purely mechanical protection**. **Blind Spots in Electronic Protection** The triple sensor protection (flow rate, pr"&"essure, temperature) controlled by a PLC is indeed very powerful, but it has one prerequisite—the **PLC itself must be functioning properly**. If the PLC crashes, the program malfunctions, or the power module fails, the entire electronic protection system"&" may fail. Although the probability is very low, for high-temperature equipment like graphitization furnaces, even a one in ten thousand risk cannot be ignored.
Mechanical Protection Principle
We installed **mech"&"anical flow switches** and **mechanical pressure switches** on the cooling water main. Their working principle is very simple:
- Flow Switch: When water flows smoothly, the water flow pushes the impeller to keep the switch clo"&"sed; when the water flow is interrupted, the impeller resets, and the switch opens.
- Pressure Switch: When the water pressure is normal, the diaphragm is pressed and keeps closed; when the water pressure is too low, the diaphragm"&" rebounds, and the switch opens.
These switches are directly connected in series in the **main circuit contactor coil circuit** of the equipment. Once disconnected, the contactor loses power, the main circuit is immediately cut off, and th"&"e equipment stops. The entire process is **purely mechanical**, requiring no PLC, no software, and no power supply.
The Value of Dual Protection
Electronic protection and mechanical protection are not su"&"bstitutes, but rather complementary. Electronic protection is fast-responding and feature-rich, handling 99.9% of everyday situations; mechanical protection is simple and reliable, handling the 0.1% of extreme cases. Only by combining the two can"&" true protection be guaranteed.
Summary: When buying a graphitization furnace, always ask: Besides the PLC-controlled electronic protection, is there a purely"&" mechanical protection system that doesn't rely on any electronic system? If not, it's advisable to consider it carefully. This is the last resort when all electronic systems fail.
