Question:What are the specific requirements of the equipment regarding grid voltage, capacity, and phase?

Detailed Answer:

Ensuring a perfect match between the power supply and the equipment is a prerequisite for stable and efficient operation. Our equipment is highly customizable to adapt to different power grid standards around the world.

I. Core Requirement: Three-Phase Power Supply

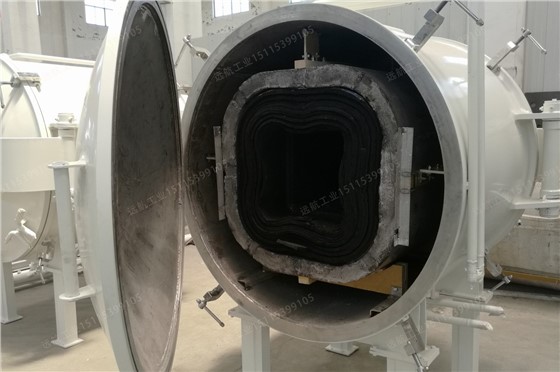

Due to the high power demand of graphitization furnaces, all of them operate onthree-phase AC powerto ensure grid balance and stable equipment performance. This is a fundamental characteristic of industrial power consumption.

II. Highly Customizable Electrical Parameters

Our strength lies in non-standard design; the power supply system can be tailored to your site conditions:

• Voltage:We can adapt to various common voltage levels, such as380V, 400V, 415V, 660V, 10kV, etc. For high-power equipment, we typically recommend10kV high-voltage power supply, which significantly reduces input current, lowers line losses, and minimizes requirements for cables and switchgear, making it more economical and reliable.

• Capacity (Transformer Capacity):The required transformer capacity (unit: kVA) is entirely determined by the equipment's rated power and your process. We will specify the recommended power supply capacity in the technical proposal.

• Frequency:Supports either50Hz or 60Hzstandards.

•

III. Planning Recommendations for You

• Early Communication:In the initial project phase, please provide us with the available voltage level and reserved transformer capacity in your factory area.

• Professional Design:Based on this information, we will design the most suitable power supply solution and provide detailed power system diagrams and equipment load schedules.

• Collaborative Work:You can submit our electrical requirements to your power design institute or electrical engineer. They will need to complete the cable laying and switch configuration from the main distribution room to the equipment installation location accordingly.

Our goal is to make connecting the equipment as simple and clear as "plugging into a standard socket," with all the complex preliminary design work handled by us.
