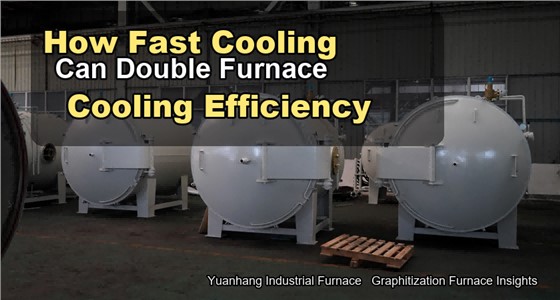

Detailed Explanation of Rapid Cooling Systems and How to Double the Coo"&"ling Efficiency of Graphitization Furnaces?
The natural cooling stage is usually the most ""boring"" and ""prolonged"" stage in the entire graphitization process—the furnace temperature is already very high, but you still have to wait for it to s"&"lowly cool down, and nothing can be done. A complete processing cycle may take 14-16 hours, of which cooling takes 8-12 hours, more than half.
Rapid cooling systems are the engineering solution to this problem, which can reduce th"&"e cooling time to a quarter or even less of the original time.
Working Principle
The rapid cooling system utilizes forced gas circulation to quickly remove heat from the furnace interior, and then dissipates the "&"heat into the environment through a high-efficiency heat exchanger outside the furnace. Simply put, it uses a fan to ""blow"" and a heat exchanger to ""dissipate,"" forcibly accelerating cooling.
Two Circulation Modes"&"
| Mode | Principle | Applicable Scenarios | |||
|---|---|---|---|---|---|
| Internal Circulation | The gas inside the furnace is cooled by the h"&"eat exchanger and then returns to the furnace | External circulation | Exhausting hot gas from the furnace and replenishing it with cooling gas | Pursuing the ultimate cooling rate |
Startup conditions
The rapid cooling system cannot be started at any temperature. It is usually only allowed to start when the furnace temperature drops to a certain low-temperature zone (determined by process and product requirements, ge"&"nerally between several hundred and one thousand degrees Celsius).
The reasons are: Rapid cooling when the product temperature is too high may cause thermal stress cracks. Graphite heating elements may also be damaged during drastic temperature ch"&"anges. Let the temperature drop naturally to a safe level before starting rapid cooling. **Effects:** After configuring the rapid cooling system, the cooling time is shortened from 8-12 hours to 2-3 hours. A processing cycle is shortened from 16 hour"&"s to 8 hours, and the daily processing capacity increases from 2 furnaces to 4 furnaces. For companies with tight capacity, the return on investment for the rapid cooling system is typically less than one year.")
